Air Conditioning Line (Peanut) Fitting: Connect

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Clean all dirt or foreign material from the fittings.

CAUTION: Use only the new O-ring seals. The use of any O-ring seals other than those specified in the Ford Master Parts Catalog may result in intermittent leakage during vehicle operation.

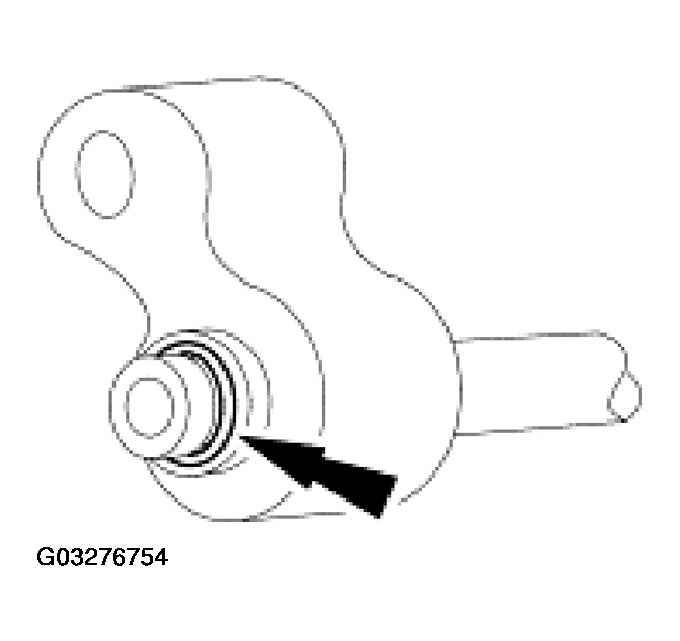

Fig 1: Installing Peanut Fitting O-Rings

Courtesy of FORD MOTOR CO.

Install the O-ring seal.

NOTE: When correctly assembled, the male and female fittings should be flush.

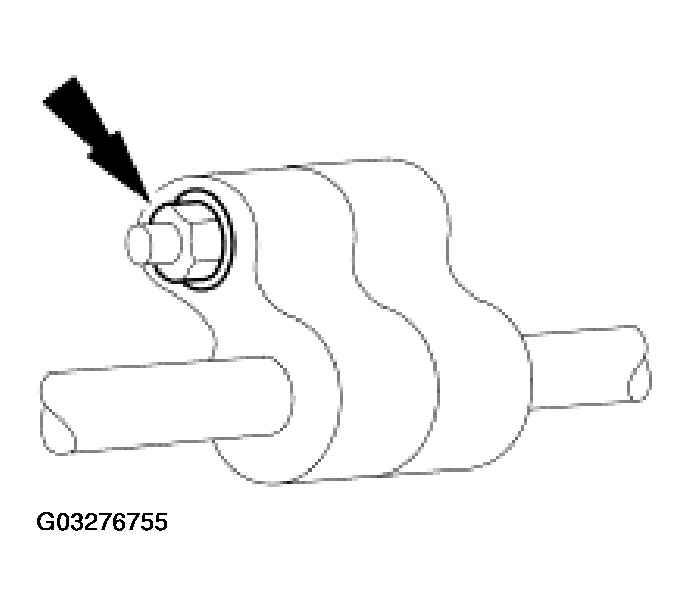

Fig 2: Assembling Male And Female Fittings

Courtesy of FORD MOTOR CO.

Assemble the male and female fittings together.
