Air Conditioning (A/C) Clutch Air Gap Adjustment

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check the A/C clutch air gap at three equally-spaced places between the A/C clutch disc and hub and the A/C clutch pulley.

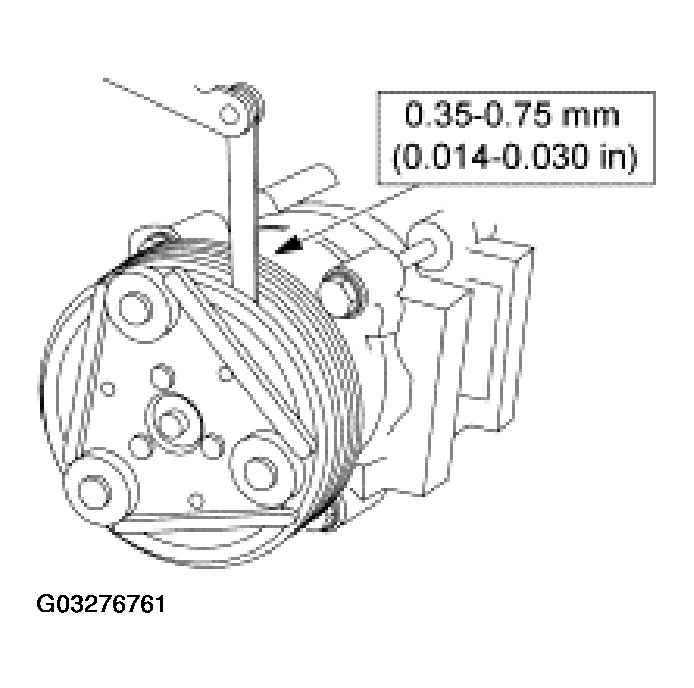

    Fig 1: Checking A/C Clutch Air Gap
    G03276761Courtesy of FORD MOTOR CO.
  2. Remove the A/C clutch disc and hub. Add or remove spacers between the A/C clutch disc and hub and the compressor shaft until clearance is within specification.
