Vacuum Connector End View - Manual A/C

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

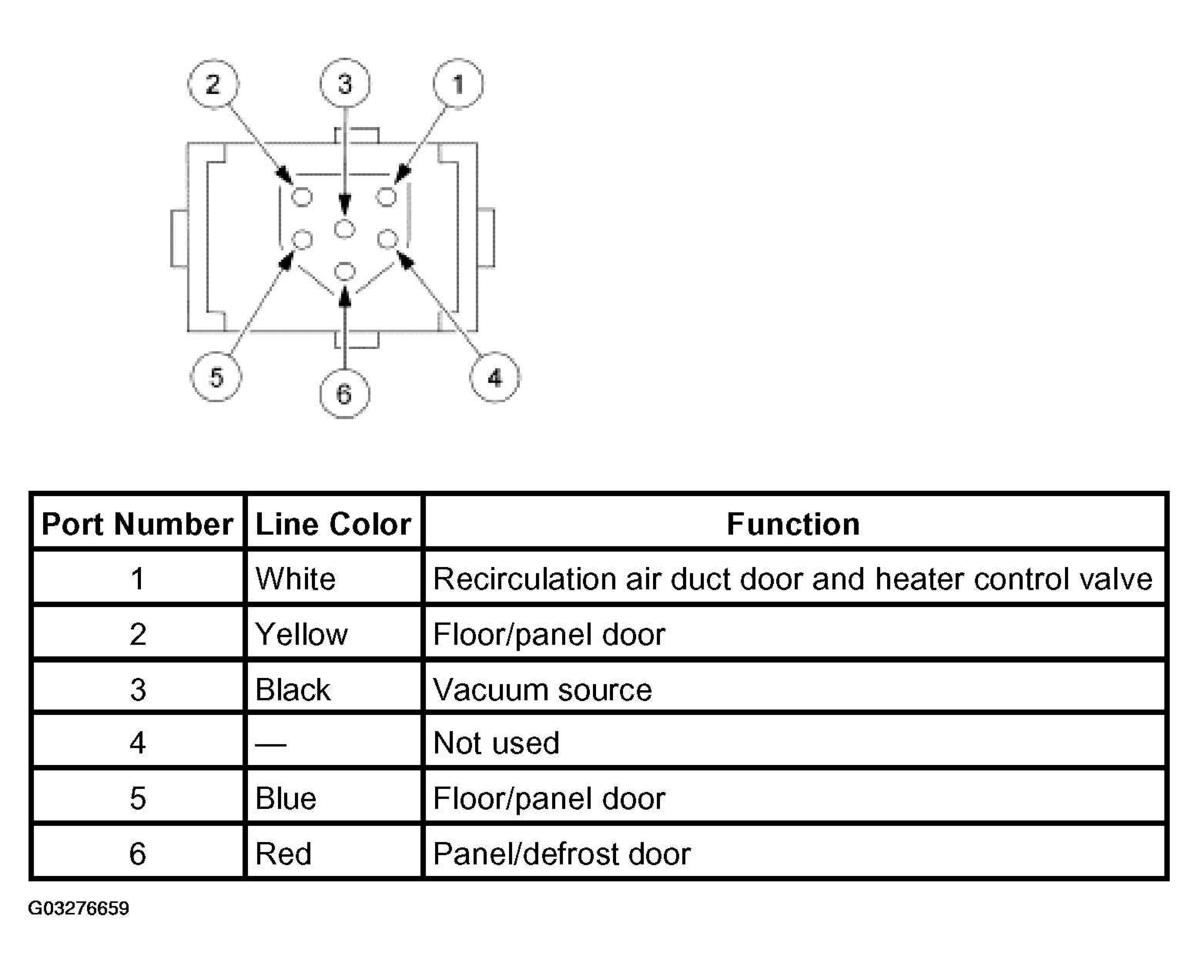

Fig 1: Identifying Vacuum Connector End View - Manual
G03276659Courtesy of FORD MOTOR CO.
