Pinpoint Test H: No Operation In High Blower Setting

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. H1 CHECK CIRCUIT 57 (BK)
    • Key in OFF position.
    • Disconnect: Blower Motor Switch C294c.
    • Measure the resistance between the blower motor switch C294c pin 3, circuit 57 (BK) and ground

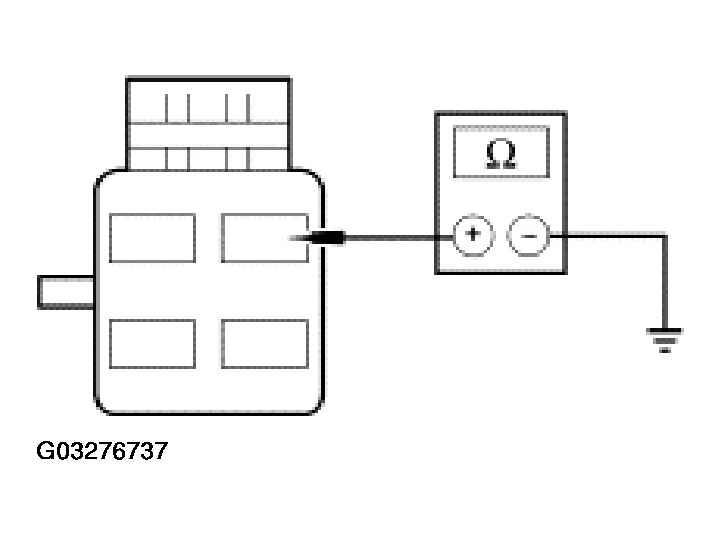

      Fig 1: Checking Circuit 57 (BK)
      G03276737Courtesy of FORD MOTOR CO.
    • Is the resistance less than 5 ohms?
    1. Yes  : GO to H2.
    2. No  : REPAIR circuit 57 (BK). TEST the system for normal operation.
  2. H2 CHECK THE BLOWER MOTOR SWITCH
    • With the blower motor switch set in the HIGH position, measure the resistance between the blower motor switch, component side, pin 1 and pin 3.

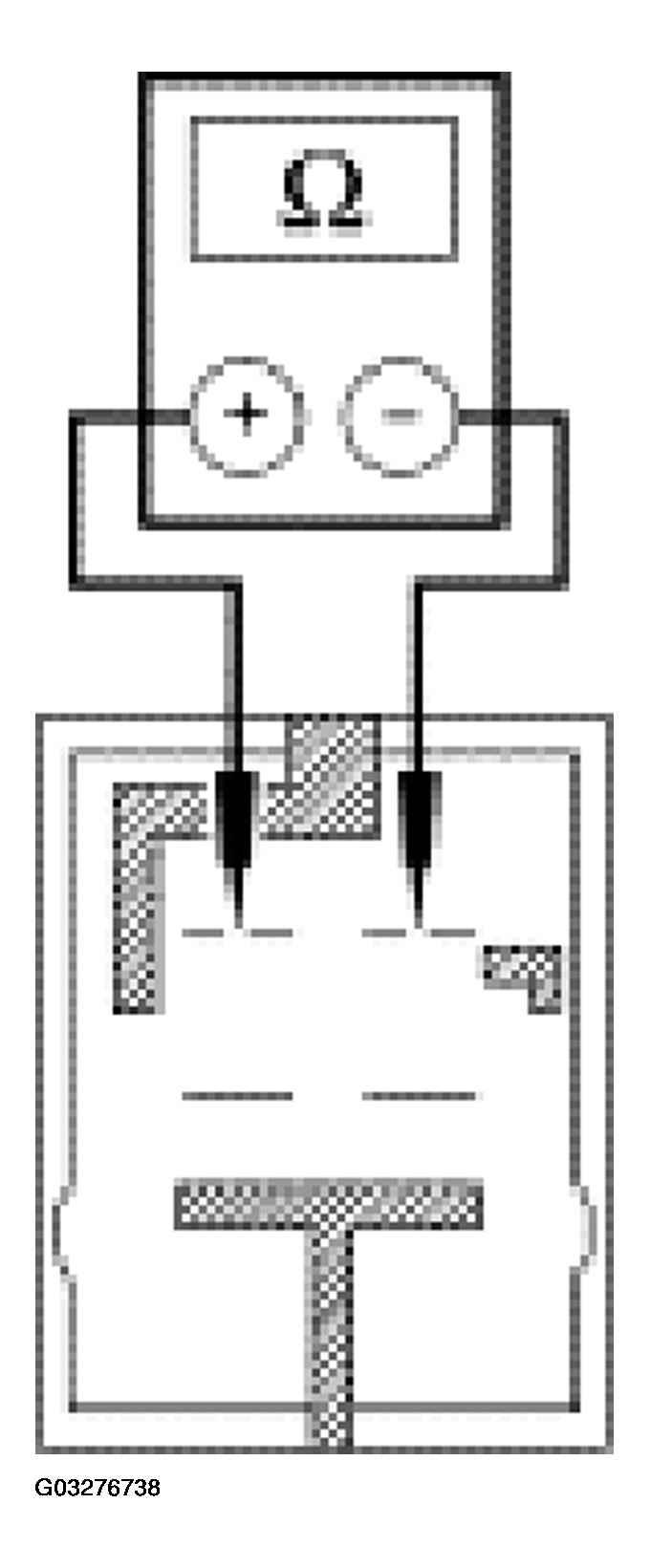

      Fig 2: Checking Blower Motor Switch
      G03276738Courtesy of FORD MOTOR CO.
    • Is the resistance less than 5 ohms?
    1. Yes  : INSTALL a new blower motor (19805). TEST the system for normal operation.
    2. No  : INSTALL a new blower motor switch (18578). TEST the system for normal operation.
