Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the accelerator cable (9A758) from the accelerator pedal and shaft (9725).

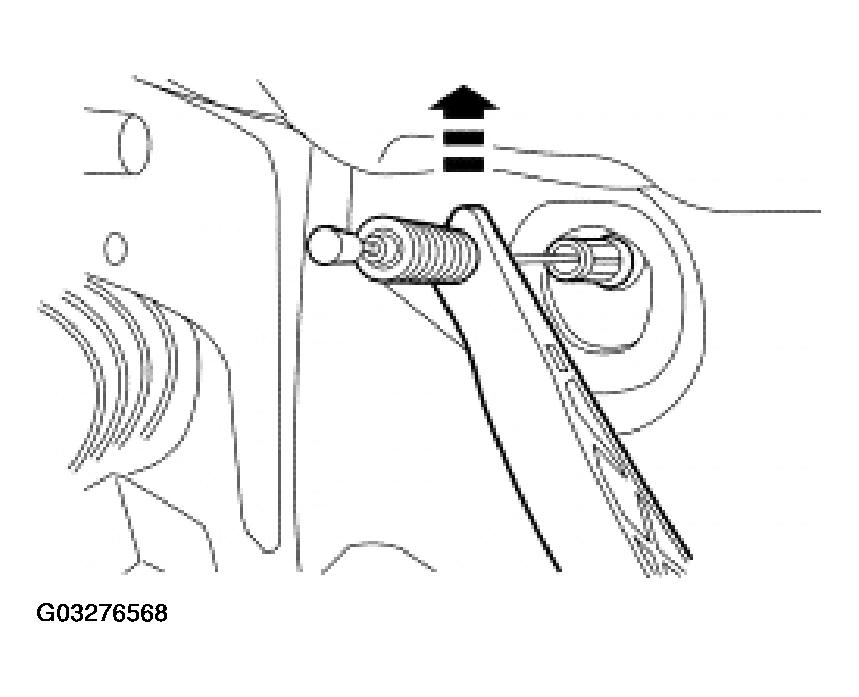

    Fig 1: Disconnecting Accelerator Cable (9A758) From Accelerator Pedal And Shaft (9725)
    G03276568Courtesy of FORD MOTOR CO.
  2. Remove the bolt and remove the accelerator pedal and shaft.

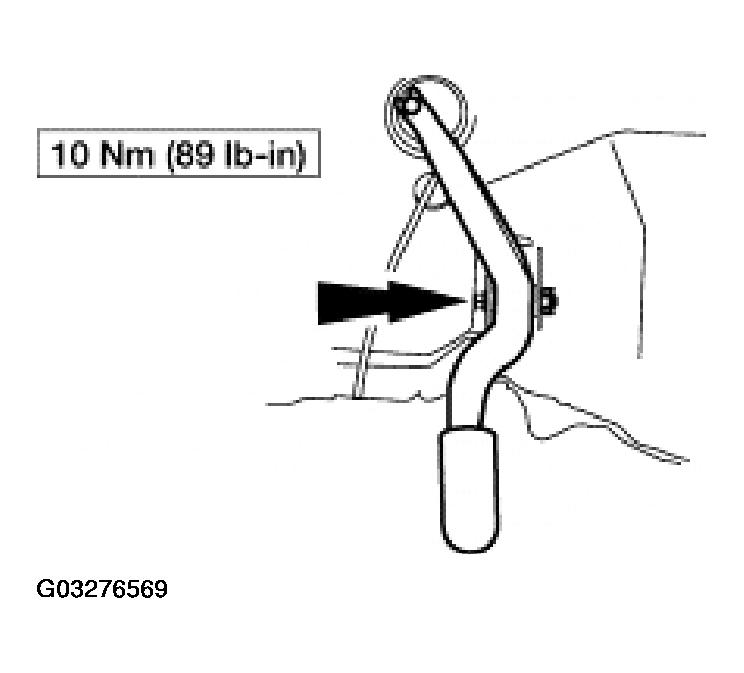

    Fig 2: Removing Accelerator Pedal And Shaft
    G03276569Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
