Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Access the inertia fuel shutoff (IFS) switch on the RH toe board and disconnect the electrical connector.

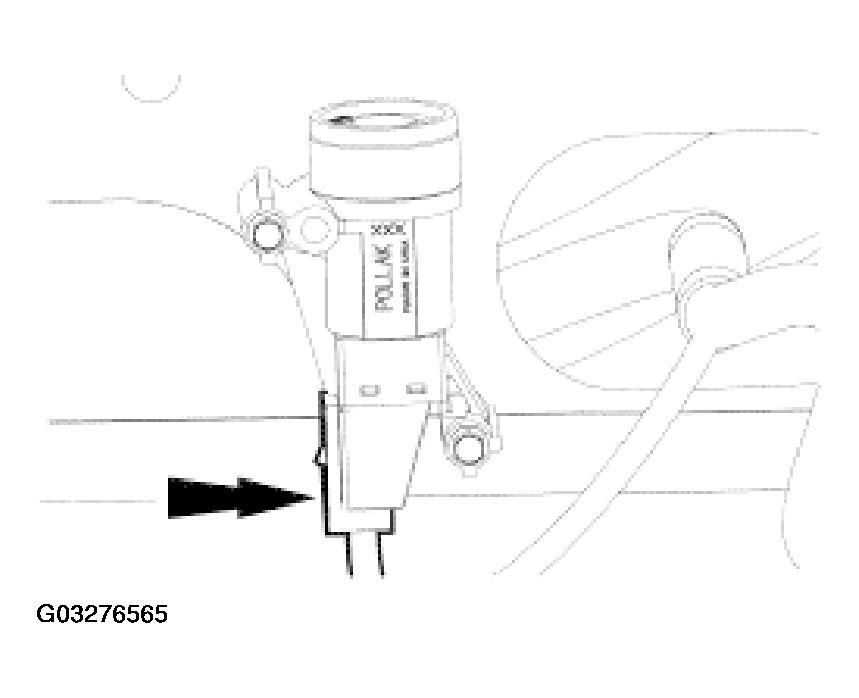

Fig 1: Identifying IFS Switch On RH Toe Board
Courtesy of FORD MOTOR CO.
Remove the bolts and remove the IFS switch.

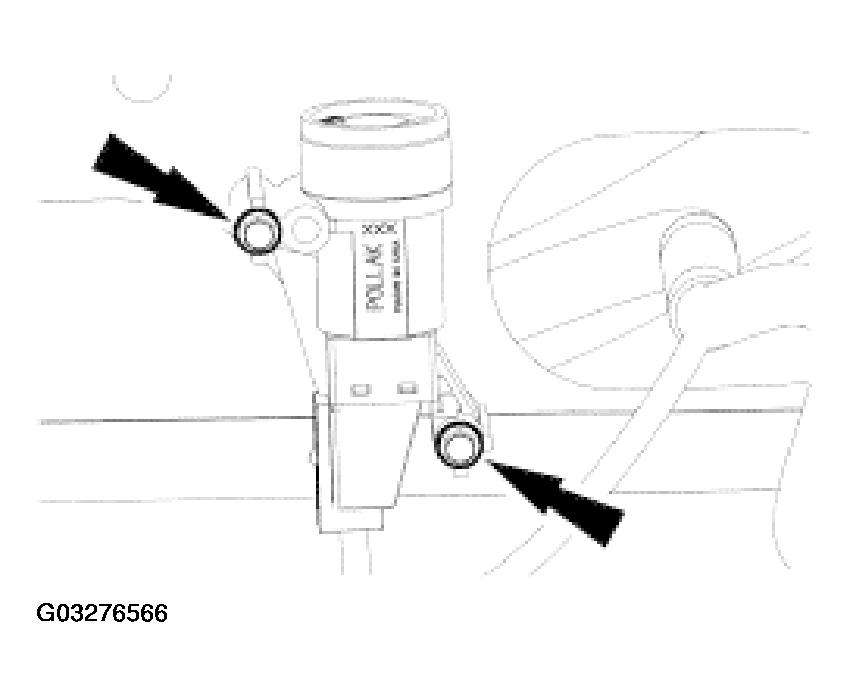

Fig 2: Removing IFS Switch
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
