Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the four nuts (two per tank strap) and remove the skid plate, if equipped.

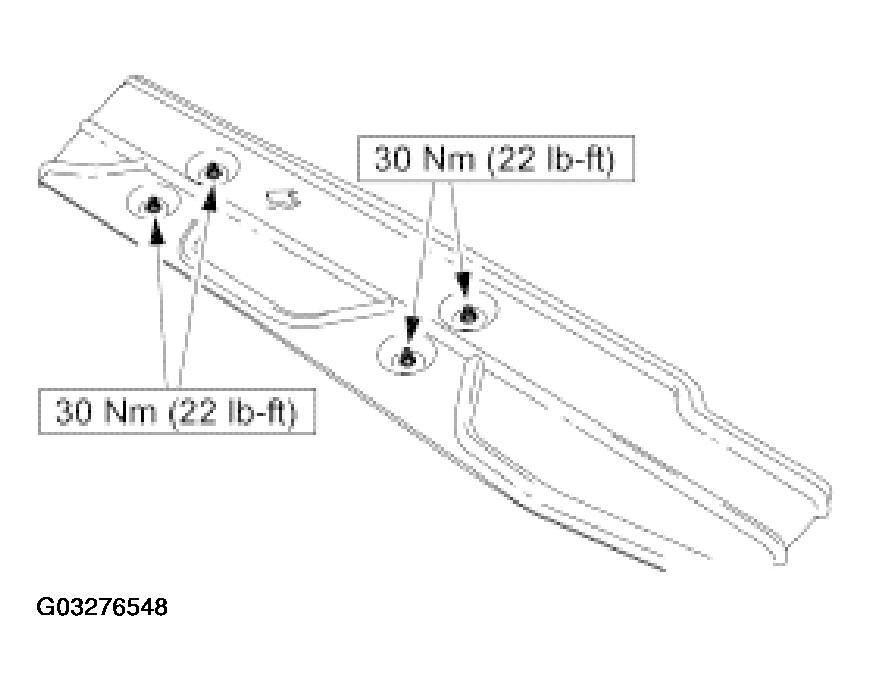

    Fig 1: Removing Skid Plate
    G03276548Courtesy of FORD MOTOR CO.
  3. Support the fuel tank.
  4. Remove the fuel tank support straps.
    • Remove the bolts.
    • Remove the support straps.

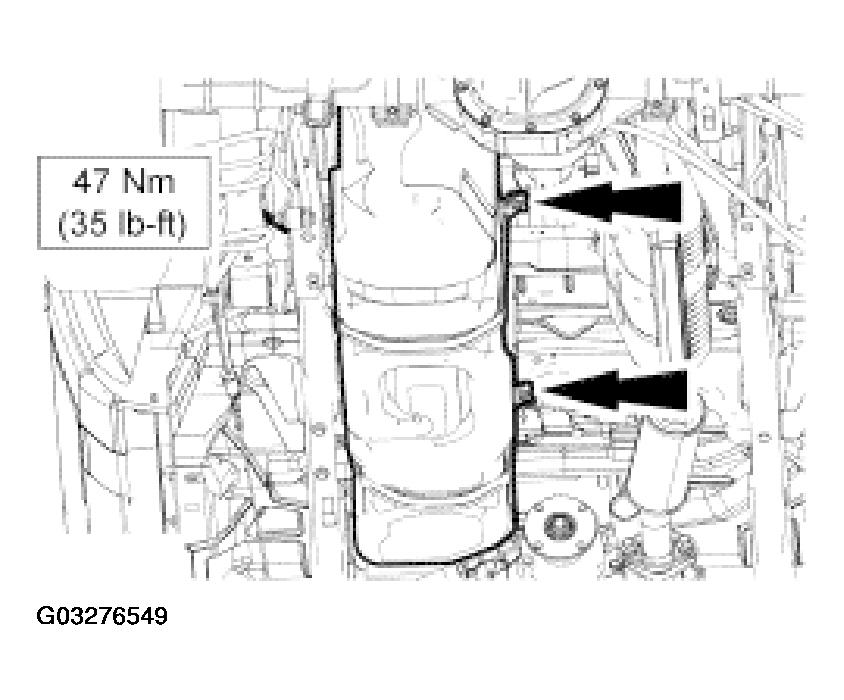

      Fig 2: Removing Fuel Tank Support Straps
      G03276549Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
