Exhaust Heat Shields

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Inspect the exhaust system for loose or missing heat shields or foreign material trapped between the heat shields and the exhaust system components.

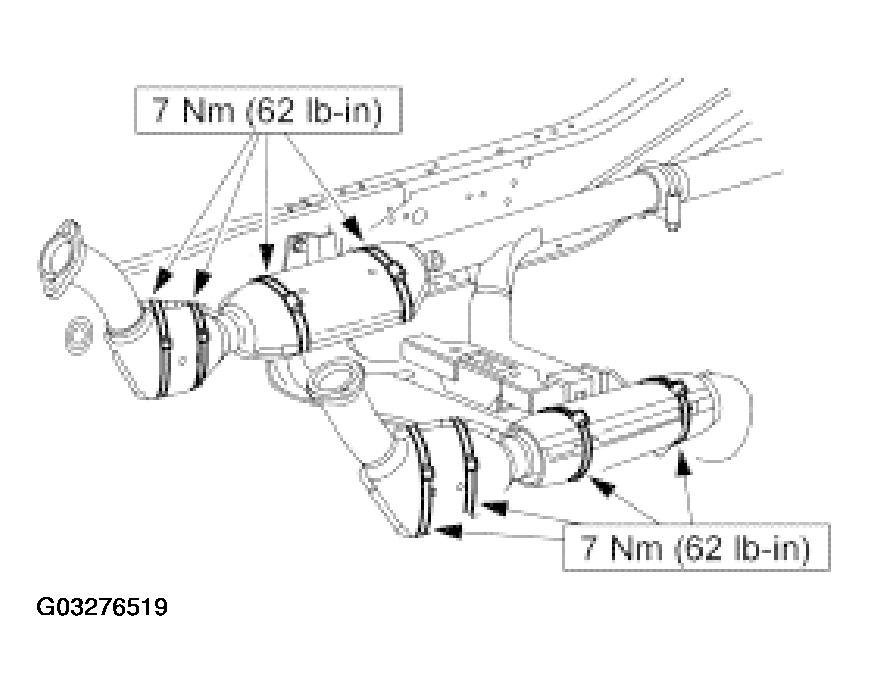

    Fig 1: Inspecting Exhaust System For Loose Or Missing Heat Shields
    G03276519Courtesy of FORD MOTOR CO.
  3. If any heat shields are loose, install worm gear clamps.
    • Use one of the following clamps: FOTZ-5A231-A or W705949-S300.
    • Trim off the excess ear of the worm clamp.
  4. If the heat shields are missing, install new heat shields or exhaust system components as necessary.
  5. If a rattle, noise or buzz condition persists, install a new heat shield.
  6. Lower the vehicle.
