Exhaust System - 2.3L Engine

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

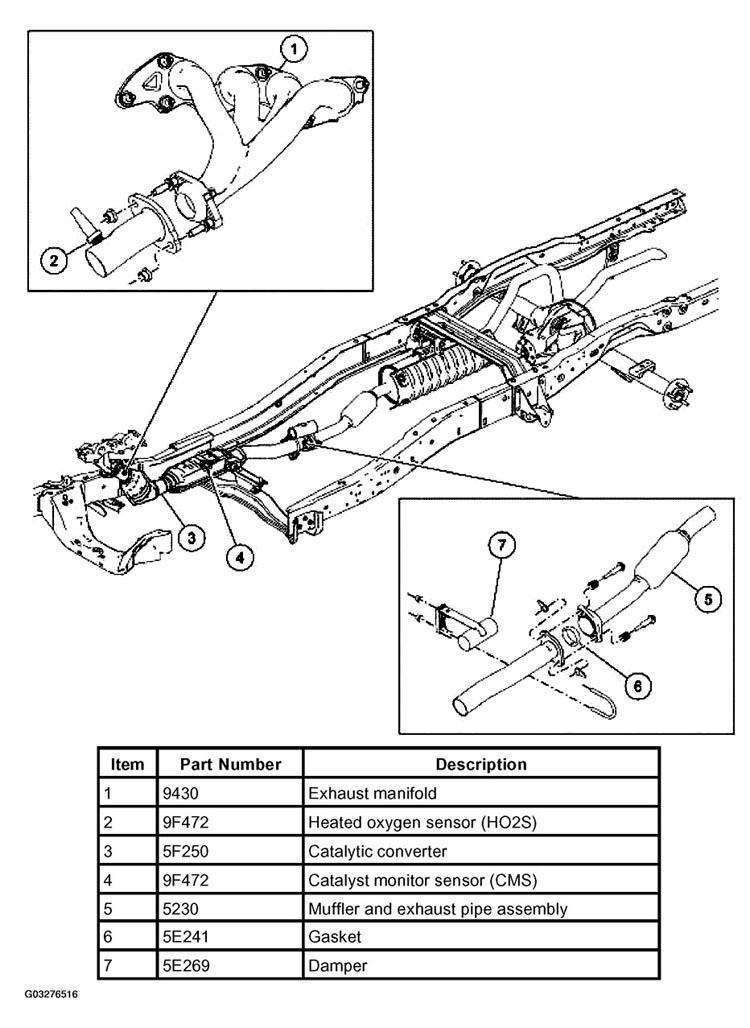

Fig 1: Exploded View Of Exhaust System - 2.3L Engine
G03276516Courtesy of FORD MOTOR CO.
