Transfer Case Draining and Filling

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

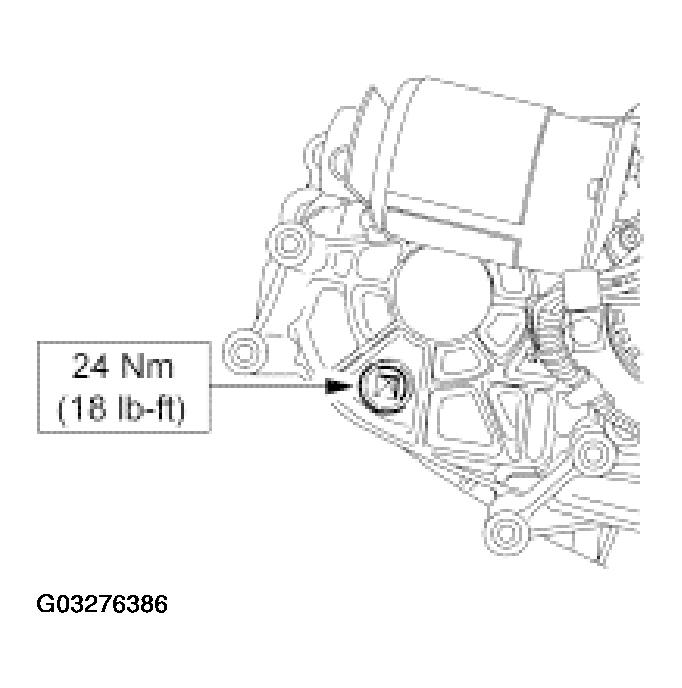

Fig 1: Identifying Drain Plug

Courtesy of FORD MOTOR CO.

Remove the drain plug and drain the fluid.
- Clean and install the drain plug after fluid is drained.

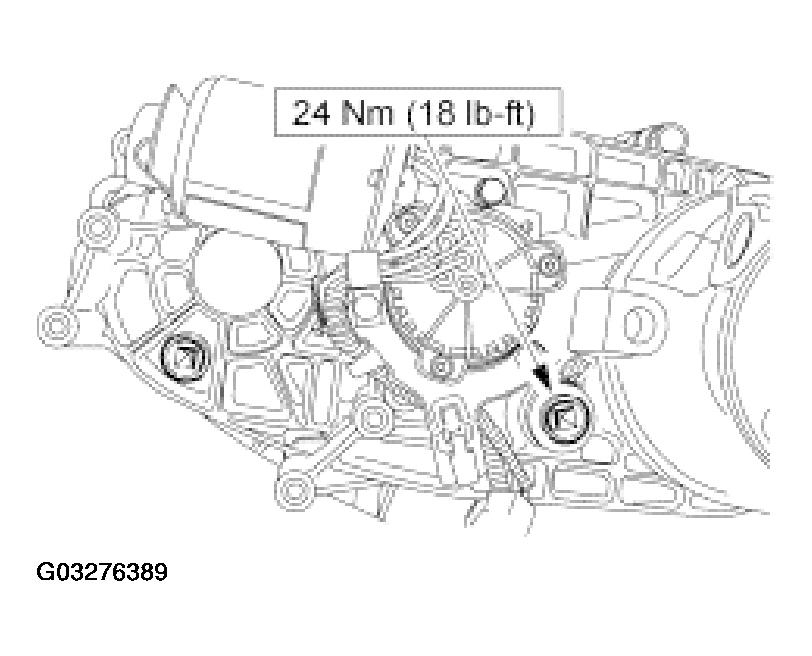

Fig 2: Identifying Fill Plug

Courtesy of FORD MOTOR CO.

CAUTION: Incorrect fluid fill can result in transfer case failure.

NOTE: Clean the area around the fill plug.

Remove the fill plug and fill the transfer case.
- The fluid must be just below the fill plug hole. Because you can reach the fluid with a finger does not mean the fluid is at the correct level. Make sure the fluid is level with the filler opening for the correct fluid level.
- The total transfer case fill capacity is 1.2 liter (2.5 pints).

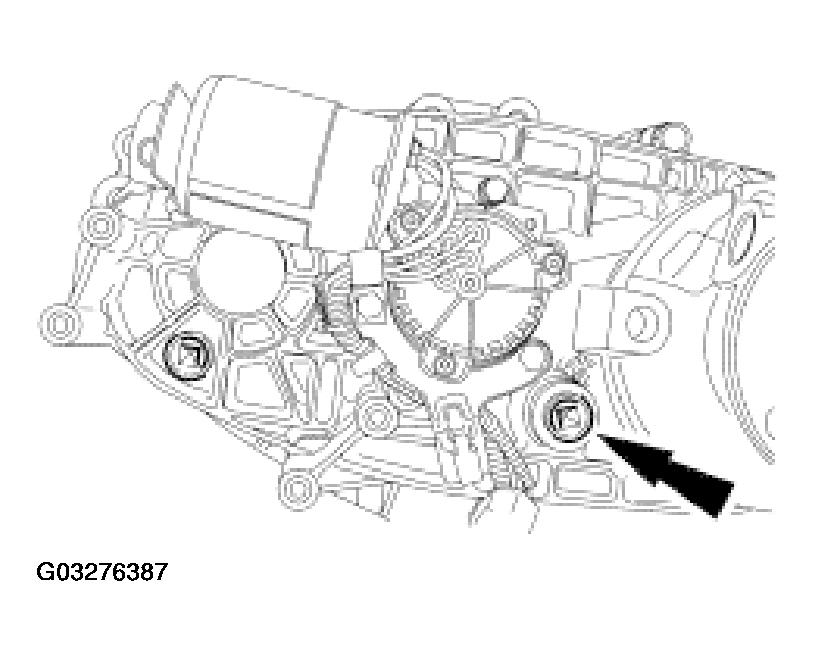

  Fig 3: Removing Fill Plug
  Courtesy of FORD MOTOR CO.

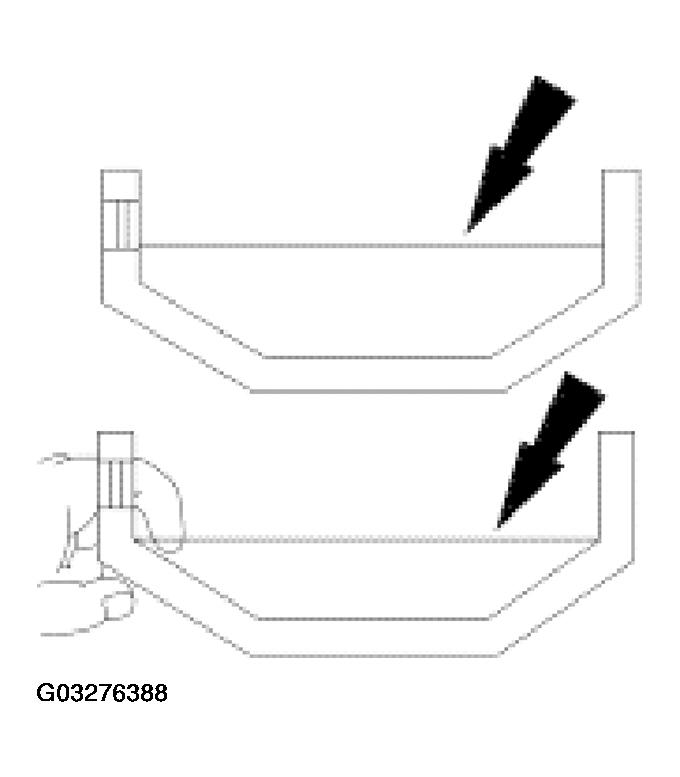

  Fig 4: Identifying Proper Transfer Case Fluid Level
  Courtesy of FORD MOTOR CO.
Install the fill plug.

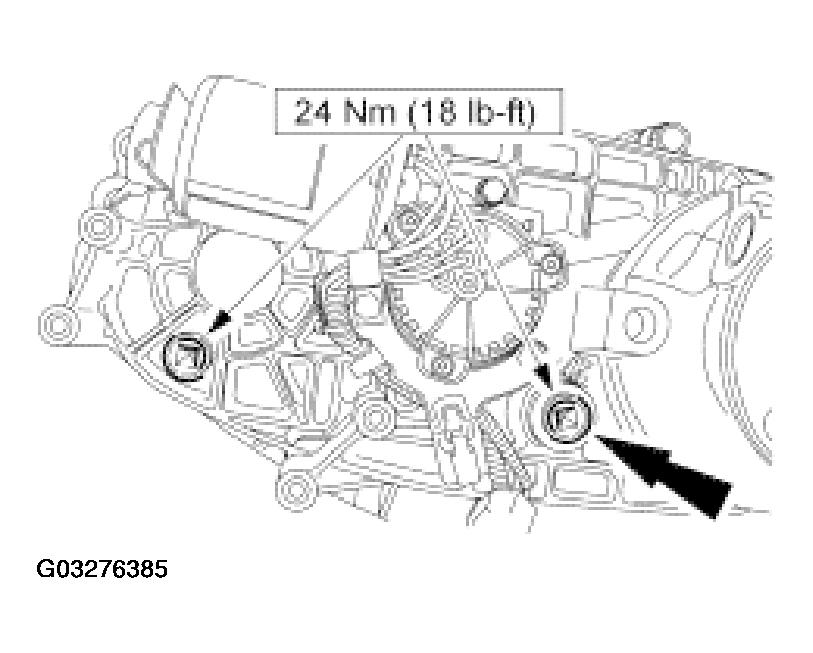

Fig 5: Installing Fill Plug
Courtesy of FORD MOTOR CO.
