Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the mode select switch (MSS) knob.

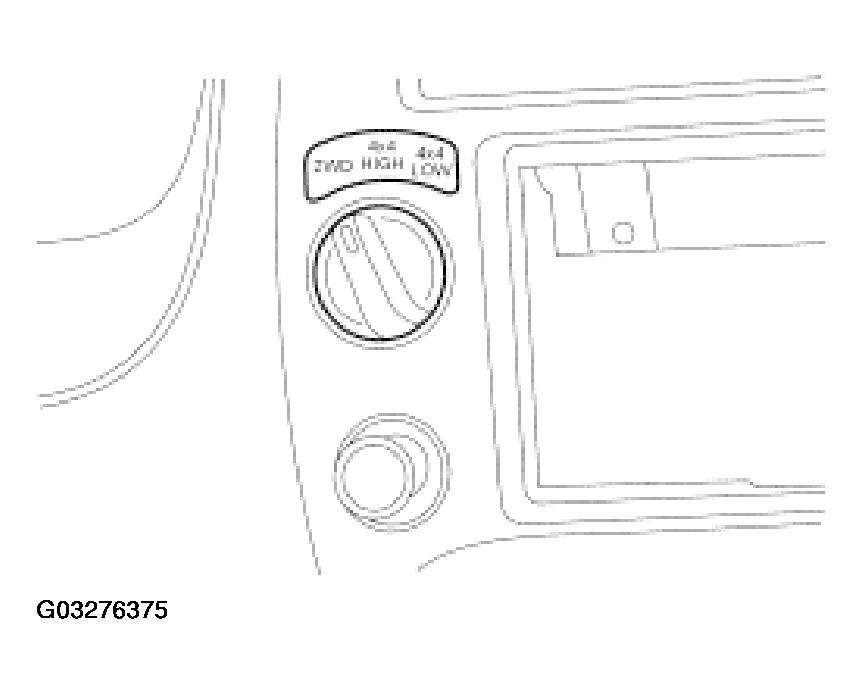

    Fig 1: Removing Mode Select Switch (MSS) Knob
    G03276375Courtesy of FORD MOTOR CO.
  2. Remove the audio unit. For additional information, refer to AUDIO UNIT .
  3. Remove the screws and pull the instrument panel center finish panel out of the instrument panel.

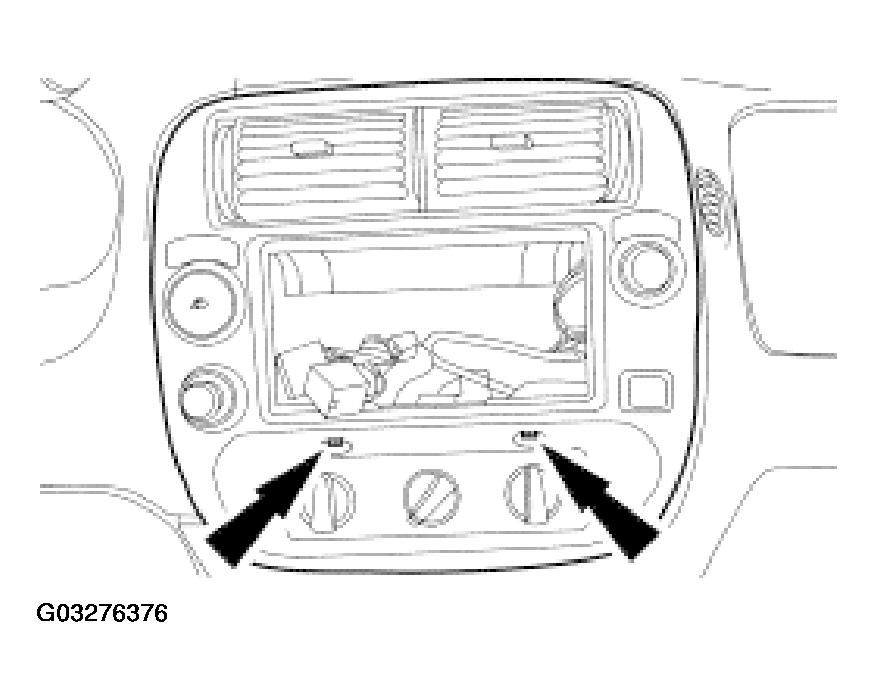

    Fig 2: Removing Instrument Panel Center Finish Panel
    G03276376Courtesy of FORD MOTOR CO.
  4. Disconnect the harness connector, remove the two screws and the MSS.

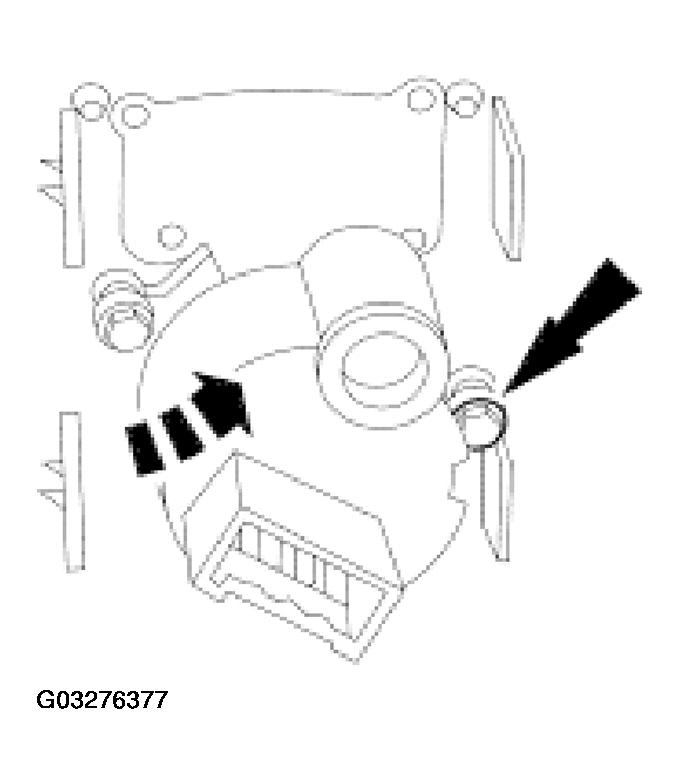

    Fig 3: Removing MSS
    G03276377Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
