Four-Wheel Drive Systems - Electronic Shift: Notes

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Refer to the appropriate SYSTEM WIRING DIAGRAMS article for schematic and connector information.

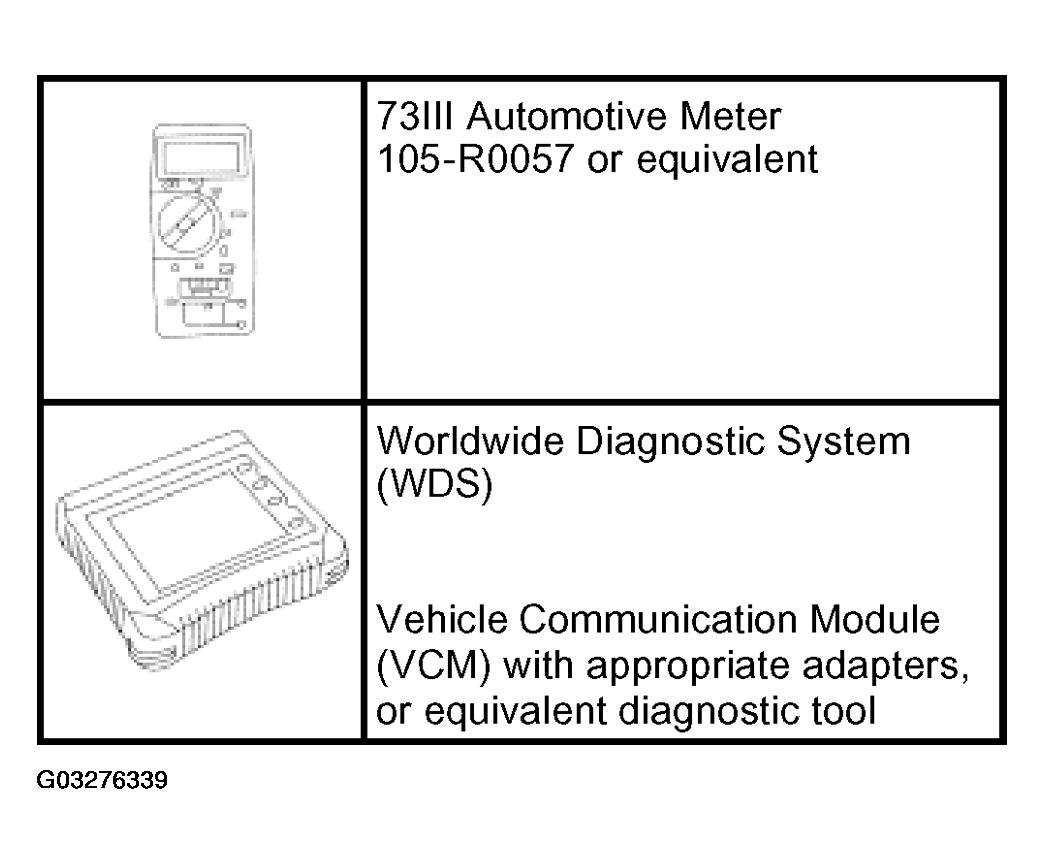

Fig 1: Identifying Special Tool
G03276339Courtesy of FORD MOTOR CO.
