Transmission - 4x2

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

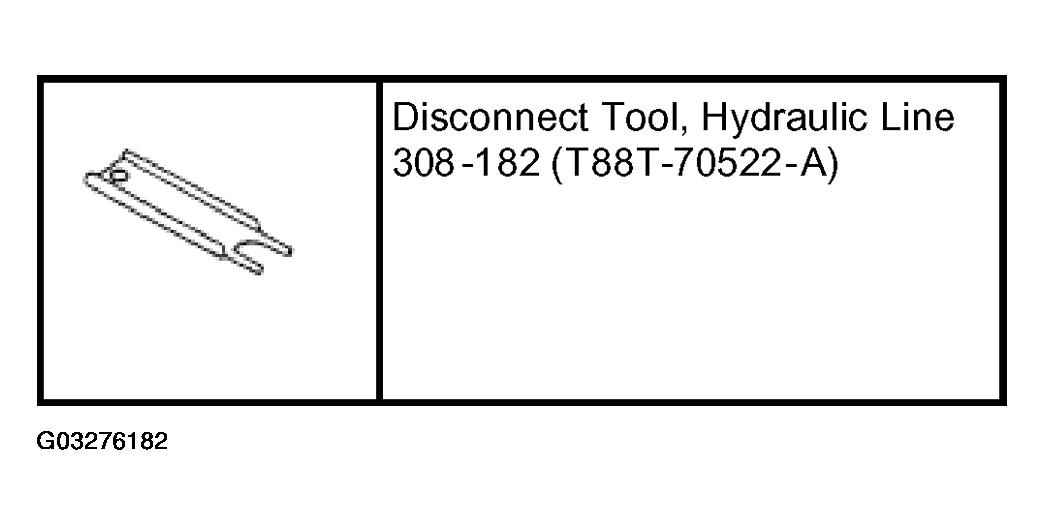

Fig 1: Identifying Special Tool

Courtesy of FORD MOTOR CO.

Remove the upper gearshift lever, the outer gearshift lever boot and the console as an assembly. For additional information, refer to SHIFT LEVER AND BOOT .
With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
If transmission disassembly is required, remove the drain plug and drain the transmission fluid.
- Install the drain plug after draining all the fluid.

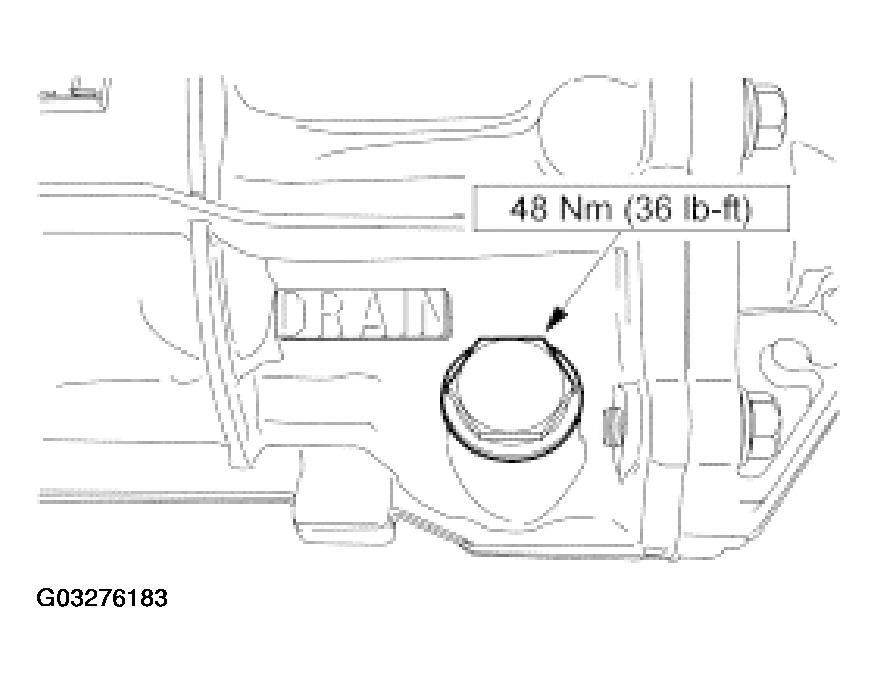

  Fig 2: Removing/Installing Drain Plug
  Courtesy of FORD MOTOR CO.

NOTE: To maintain initial driveshaft balance, index-mark the driveshaft yoke to the axle flange, so they can be installed in their original positions.

Remove the rear driveshaft. For additional information, refer to DRIVESHAFT .
Disconnect the wire harness from the crossmember.

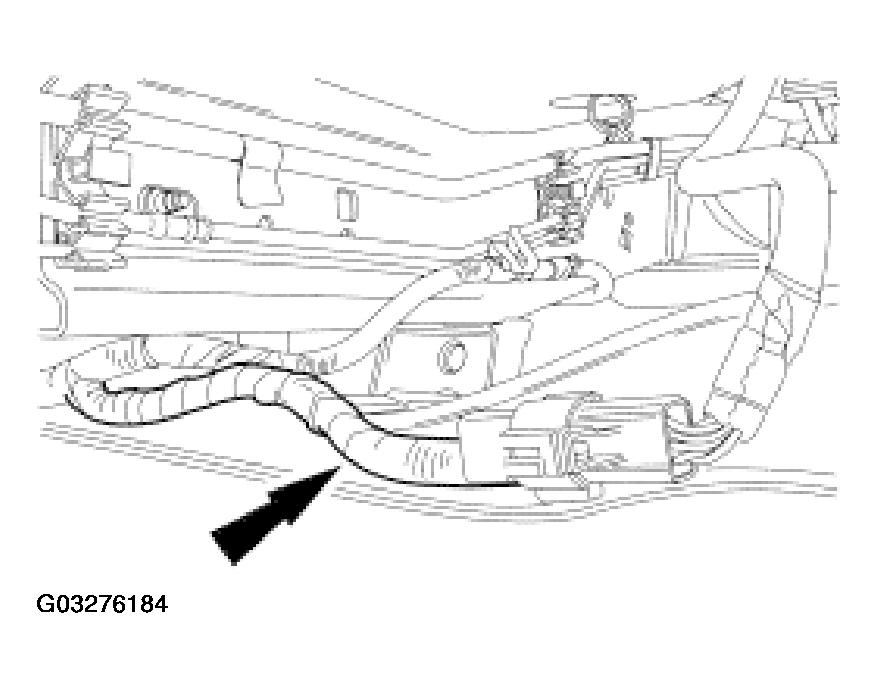

Fig 3: Disconnecting Wire Harness From Crossmember
Courtesy of FORD MOTOR CO.

CAUTION: Do not allow the transmission to hang freely.

Position a suitable jack under the transmission. Secure the transmission to the jack with a safety strap.
Remove the six crossmember bolts.

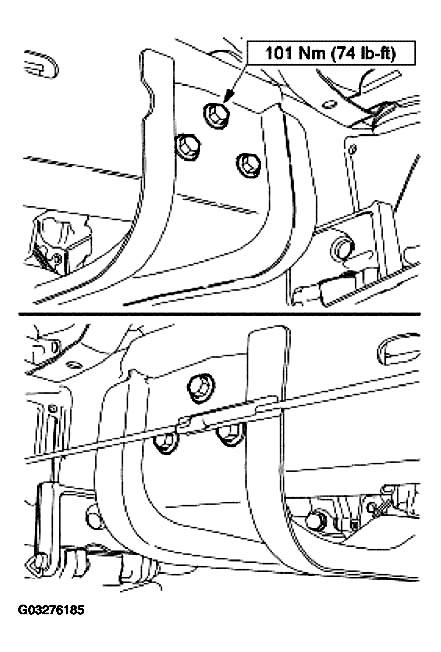

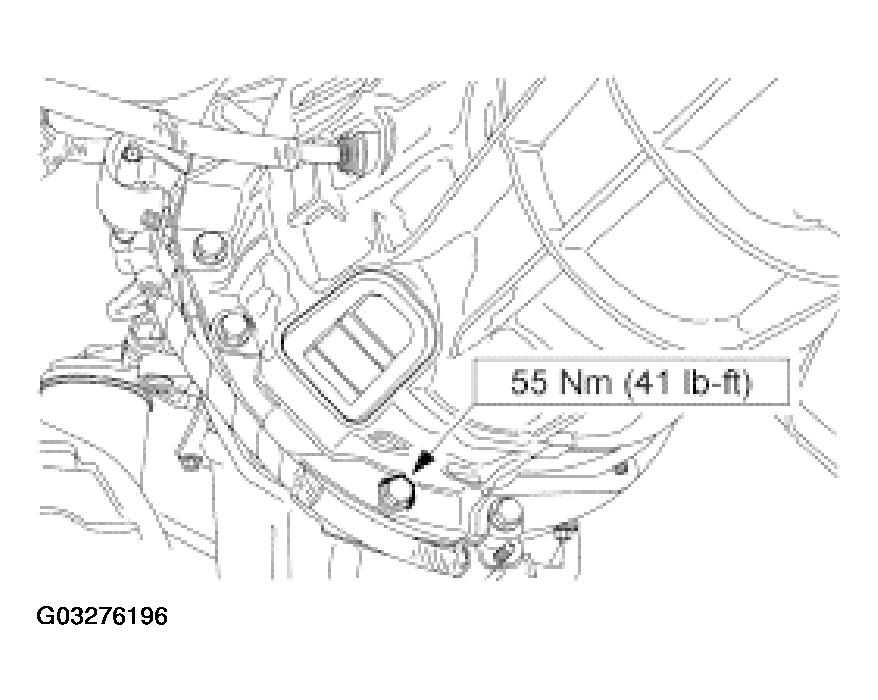

Fig 4: Removing Crossmember Bolts
Courtesy of FORD MOTOR CO.
Remove the transmission mount nuts and the crossmember.

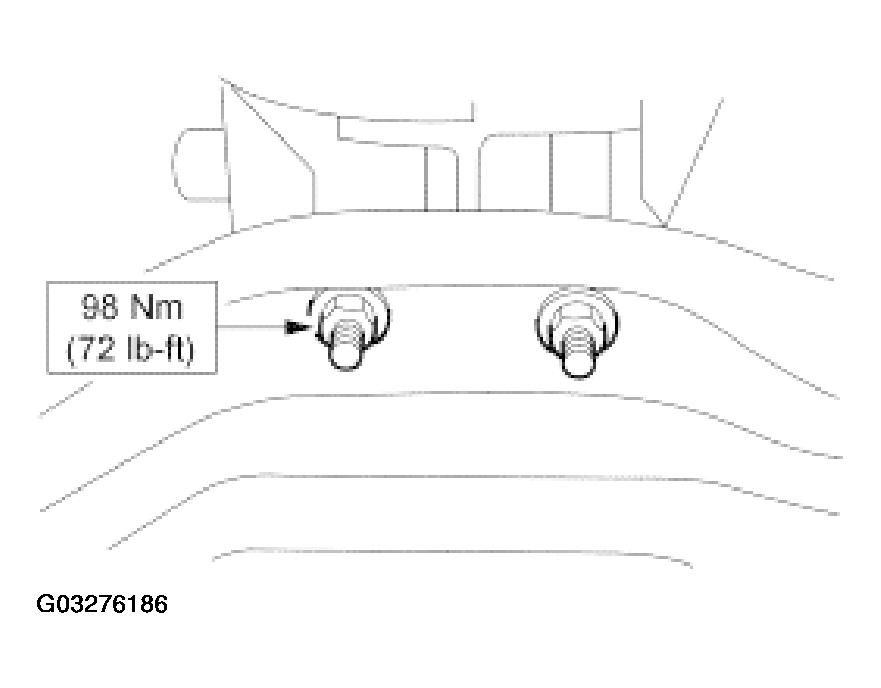

Fig 5: Removing Transmission Mount Nuts
Courtesy of FORD MOTOR CO.
Remove the heated oxygen senor (HO2S) bracket nut and the bracket from the extension housing.

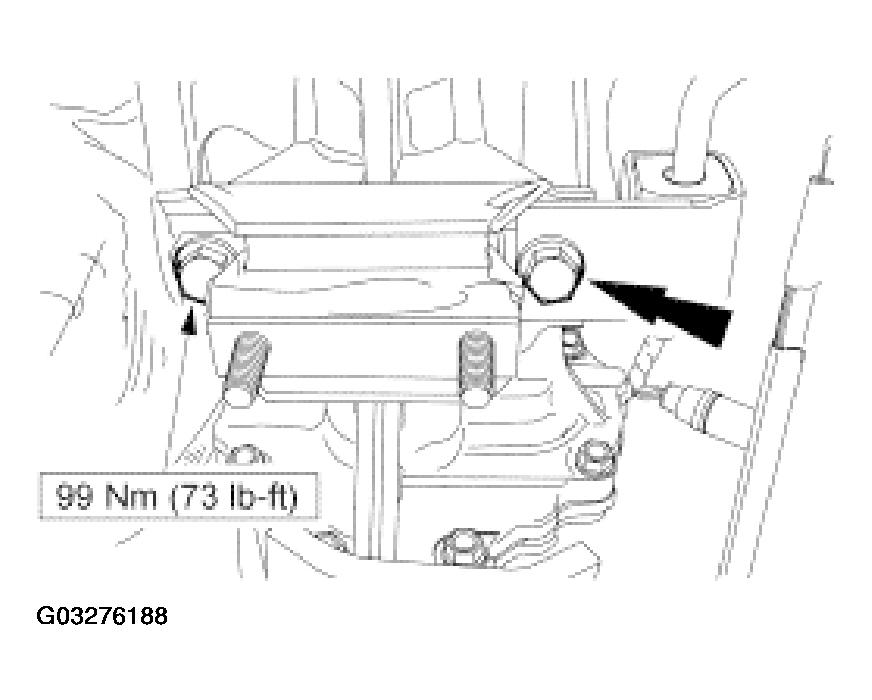

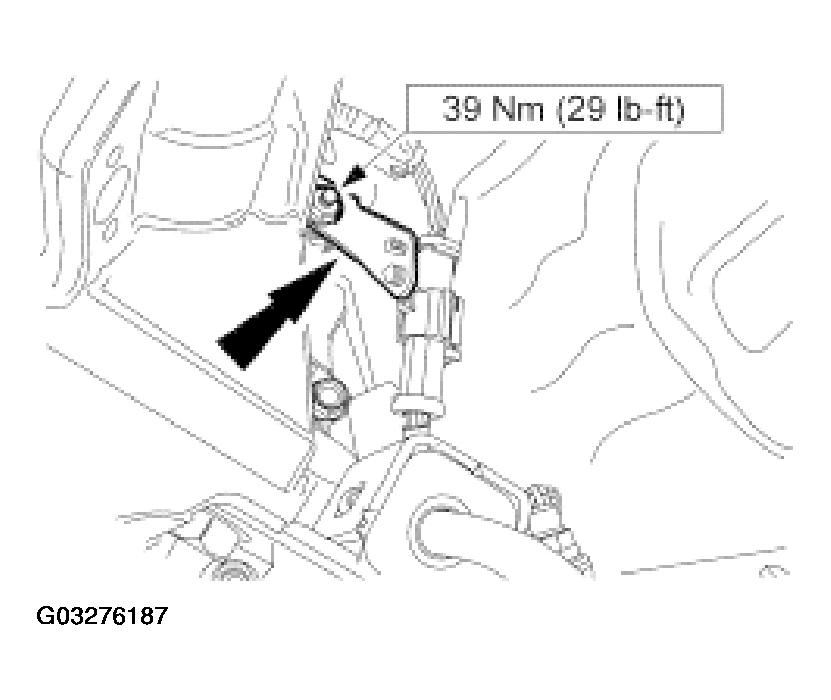

Fig 6: Removing HO2S Bracket Nut And Bracket
Courtesy of FORD MOTOR CO.
Remove the transmission mount bolts and the transmission mount.

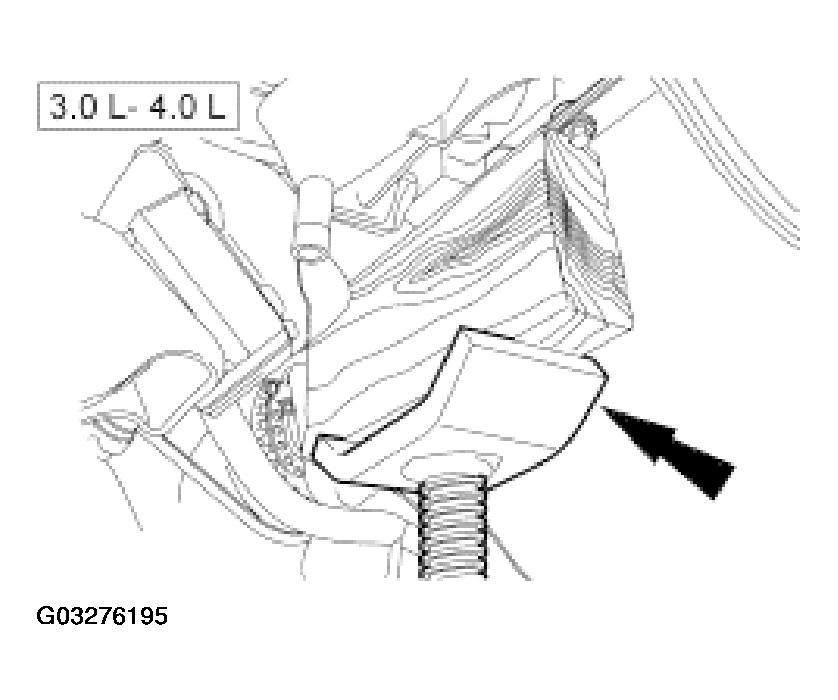

Fig 7: Removing Transmission Mount
Courtesy of FORD MOTOR CO.
For 3.0L and 4.0L engines, remove the catalytic converter Y-pipe. For additional information, refer to EXHAUST SYSTEM .
Disconnect the vehicle speed sensor (VSS) electrical connector and the reverse lamp switch electrical connector. Then unclip the wiring harness from the transmission.

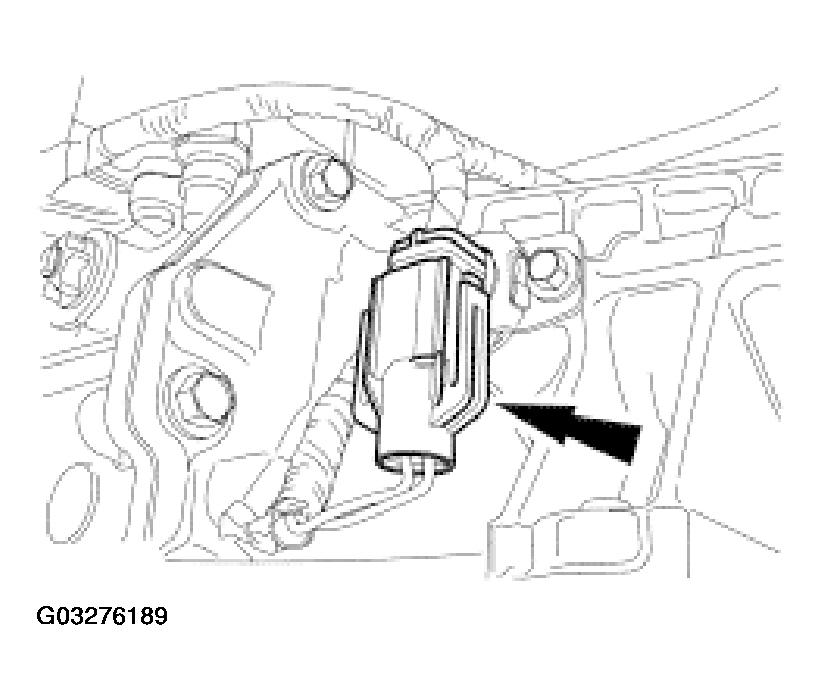

Fig 8: Disconnecting VSS Electrical Connector
Courtesy of FORD MOTOR CO.

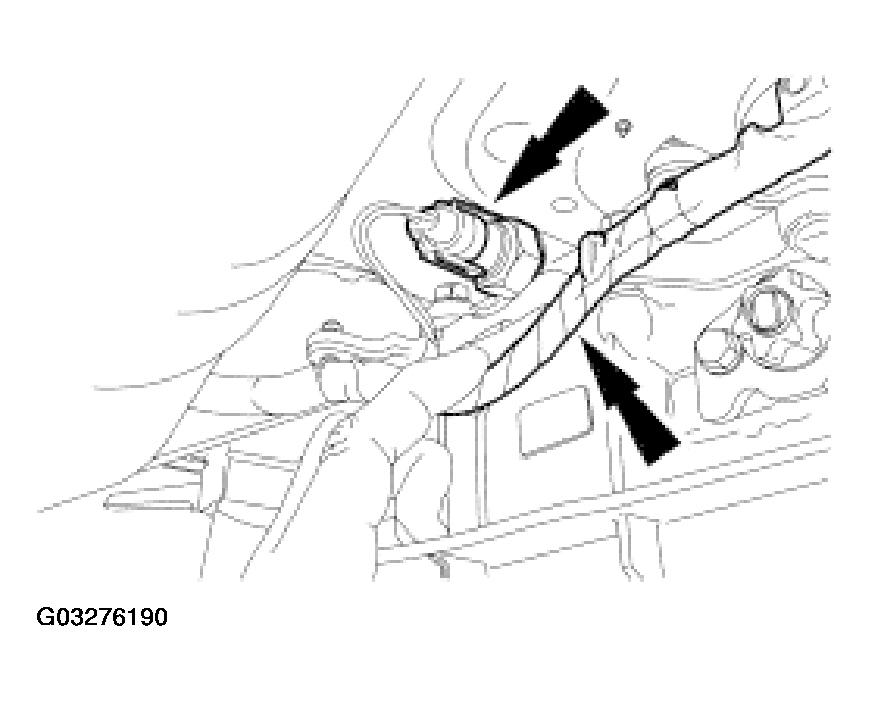

Fig 9: Disconnecting Reverse Lamp Switch Electrical Connector
Courtesy of FORD MOTOR CO.

CAUTION: Do not allow the starter to hang freely.

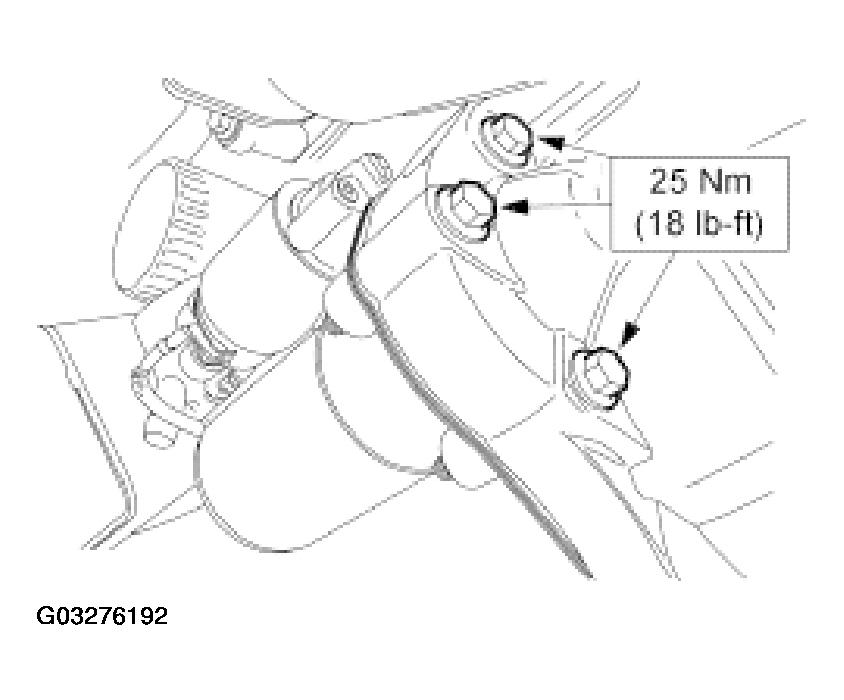

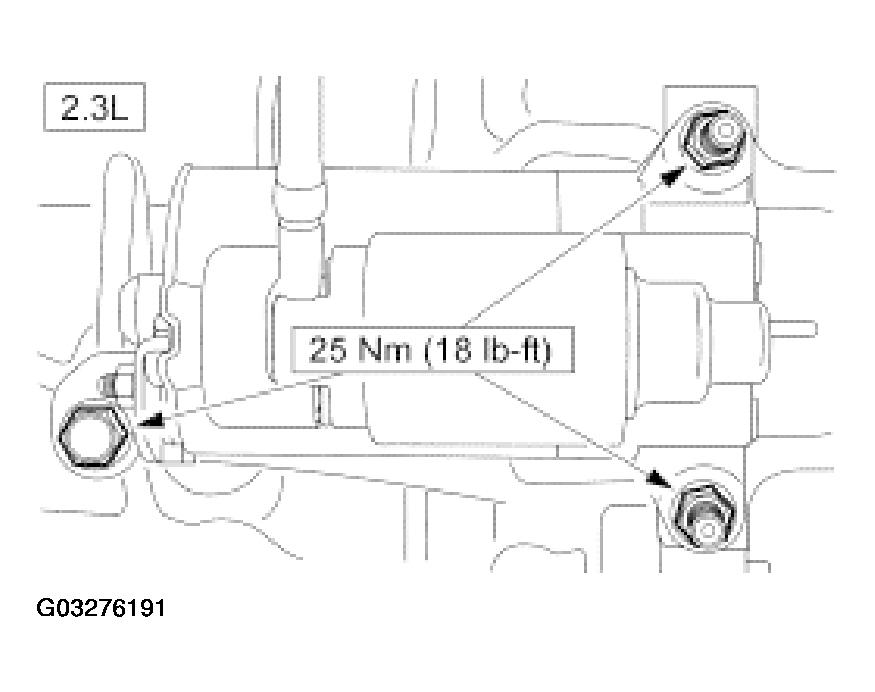

Fig 10: Removing Starter Motor Bolts (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 11: Removing Starter Motor Bolts (2 Of 2)

Courtesy of FORD MOTOR CO.

Remove the starter motor. Using mechanics wire, position the starter aside.

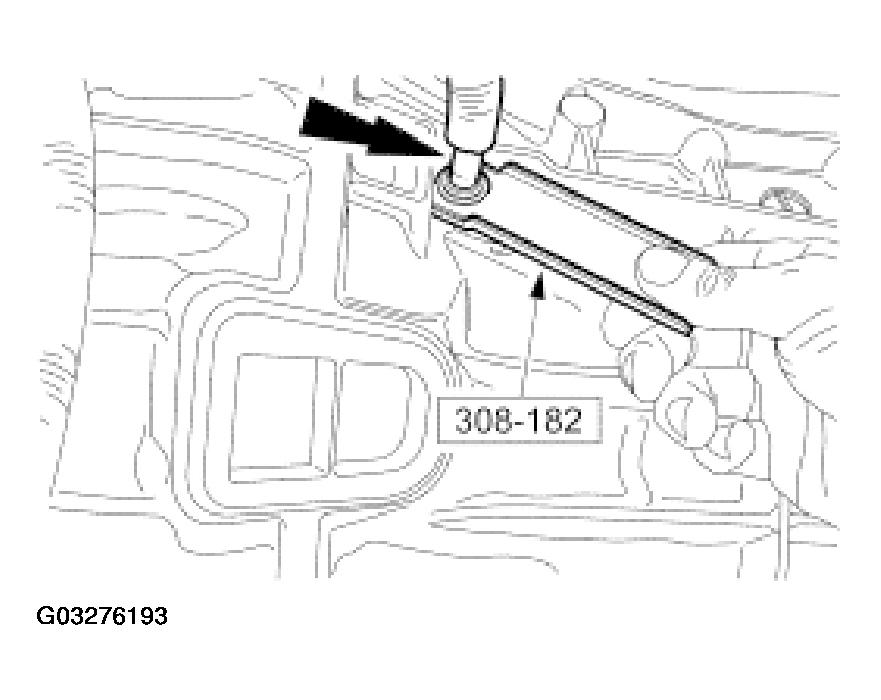

Using the special tool, disconnect the clutch hydraulic line.

Fig 12: Disconnecting Clutch Hydraulic Line
Courtesy of FORD MOTOR CO.
Using a suitable jack, support the engine.

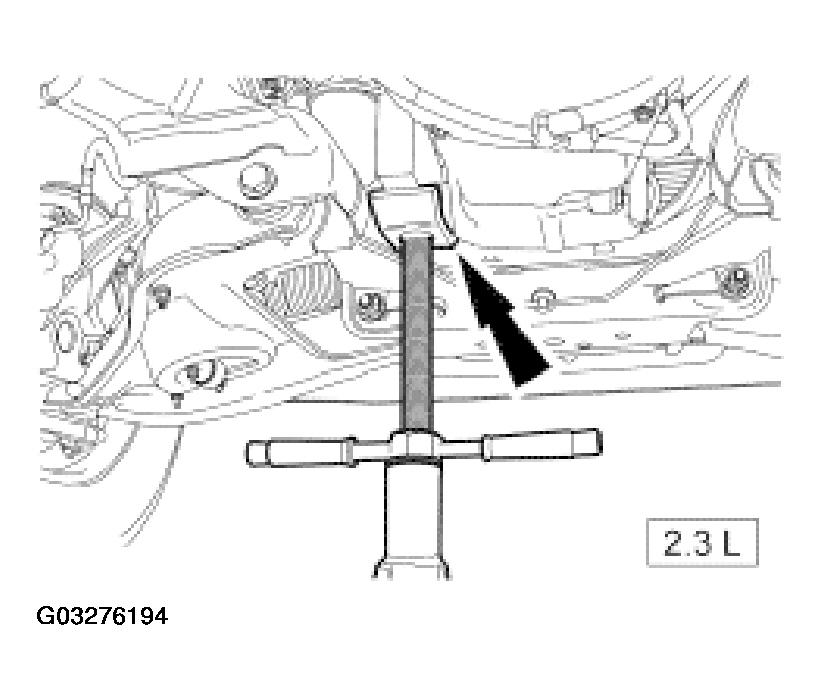

Fig 13: Supporting Engine (1 Of 2)
Courtesy of FORD MOTOR CO.

Fig 14: Supporting Engine (2 Of 2)
Courtesy of FORD MOTOR CO.

NOTE: Lower the transmission enough to gain access to the upper transmission-to-engine bolts.

Fig 15: Removing Transmission-To-Engine Bolts

Courtesy of FORD MOTOR CO.

Remove the nine transmission-to-engine bolts.
Pull the transmission rearward until the input shaft is clear of the pressure plate, then lower the transmission from the vehicle.
