Transmission Draining and Filling

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

MATERIAL CHART

Item	Specification
DEXRON III® (ATF) Transmission Fluid XT-2-QDX	DEXRON III®

Remove the drain plug and drain the transmission.
- Position a suitable drain pan under the transmission.

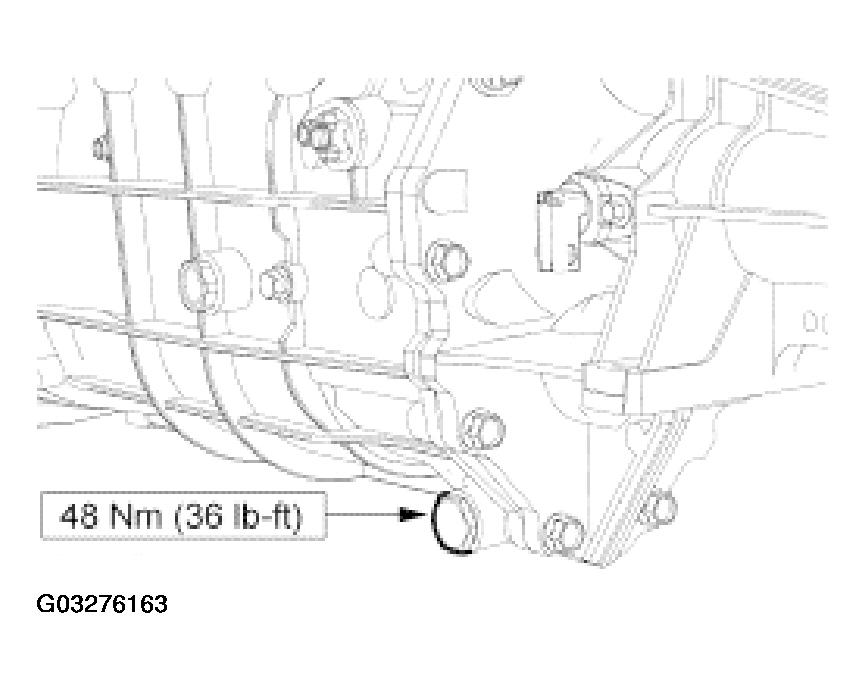

  Fig 1: Removing Drain Plug
  Courtesy of FORD MOTOR CO.
Clean and install the drain plug.

NOTE: Before removing, clean the area around the filler plug.

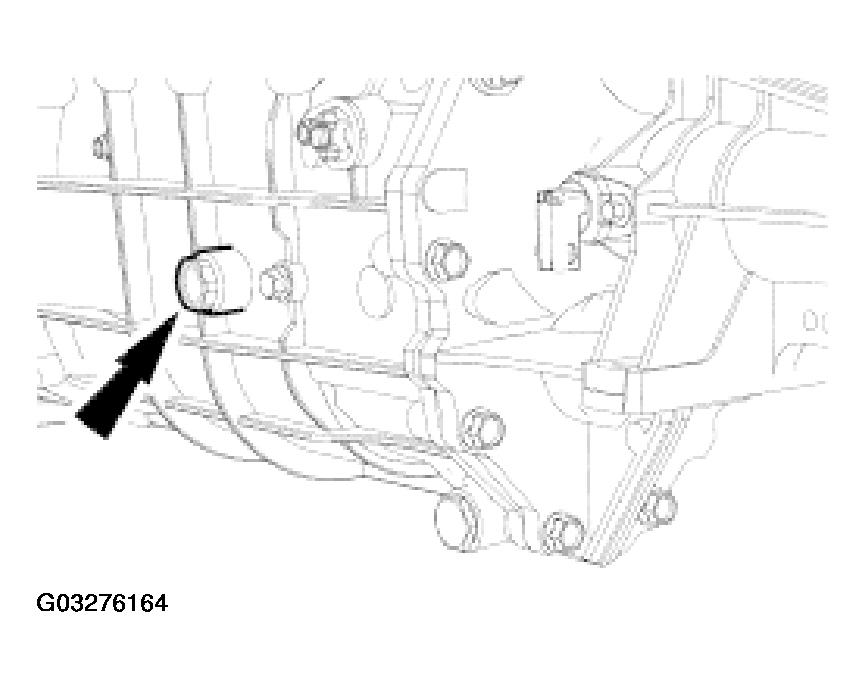

Fig 2: Removing Filler Plug

Courtesy of FORD MOTOR CO.

Remove the filler plug.

NOTE: Fill the transmission with the vehicle on a level surface.

Using a suitable oil suction gun, fill the transmission to the correct level with the specified fluid. The fluid must be just below the fill plug hole.
- Transmission capacity is 2.6 liters (2.8 quarts).
Install the filler plug.
