Reverse Idler Gear: Disassembly

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble the reverse idler gear.
    1. Remove the reverse idler gear retaining ring.
    2. Remove the spacer.
    3. Remove the reverse idler gear.
    4. Remove the reverse idler gear bearing.
    5. Remove the reverse idler gear thrust washer.

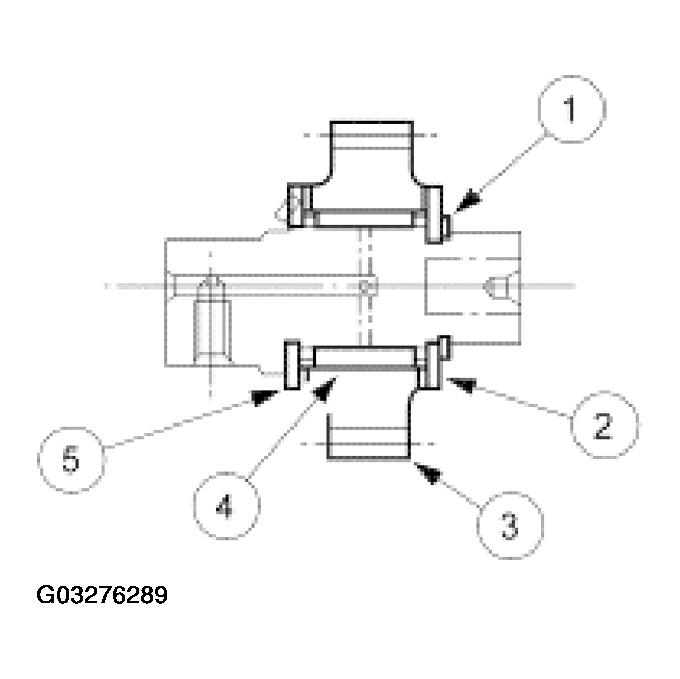

      Fig 1: Disassembling Reverse Idler Gear
      G03276289Courtesy of FORD MOTOR CO.
