Reverse Idler Gear: Assembly

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Assemble the reverse idler gear.
    1. Install the reverse idler gear thrust washer.
    2. Install the reverse idler gear bearing.
    3. Install the reverse idler gear.
    4. Install the spacer.
    5. Install the reverse idler gear retaining ring.

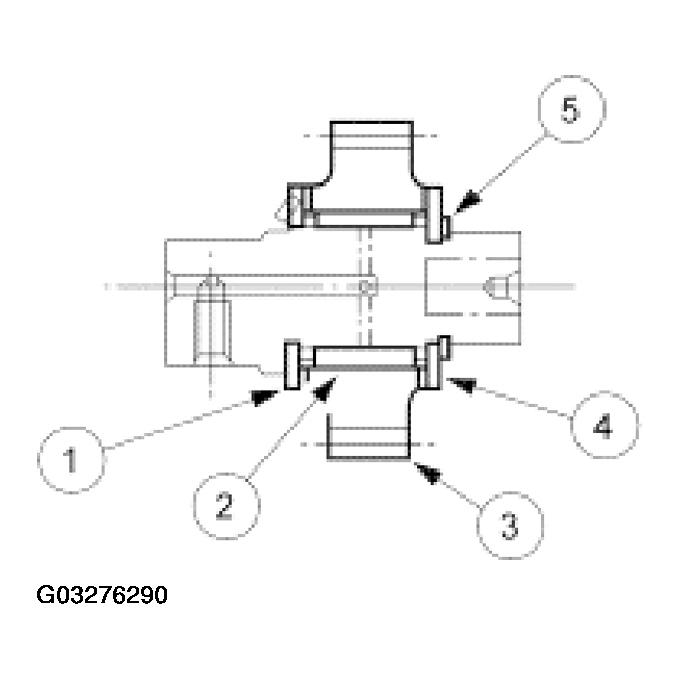

      Fig 1: Disassembling Reverse Idler Gear
      G03276290Courtesy of FORD MOTOR CO.
  2. Measure the reverse idler gear end play.
    REVERSE IDLER GEAR RETAINING RINGS

    Part Number Thickness
    E8TZ-7156-A 1.5 mm (0.0590 in)
    E8TZ-7156-G 1.6 mm (0.0629 in)
    E8TZ-7156-H 1.7 mm (0.0669 in)
    E8TZ-7156-J 1.8 mm (0.0708 in)
    E8TZ-7156-K 1.9 mm (0.0748 in)
    • If end play is not within specification, install a retaining ring of correct thickness.

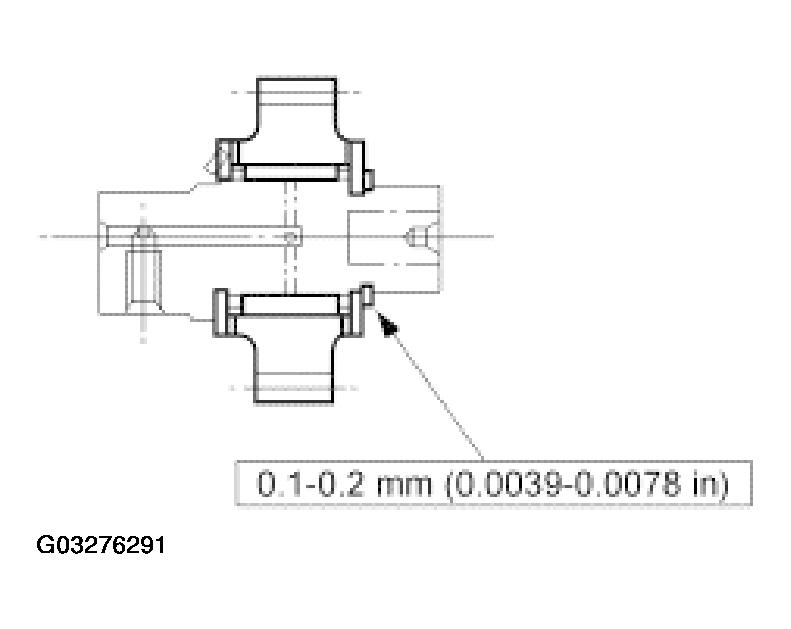

      Fig 2: Installing Reverse Idler Gear Retaining Ring
      G03276291Courtesy of FORD MOTOR CO.
