Transmission Shift Components - Disassembled View

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

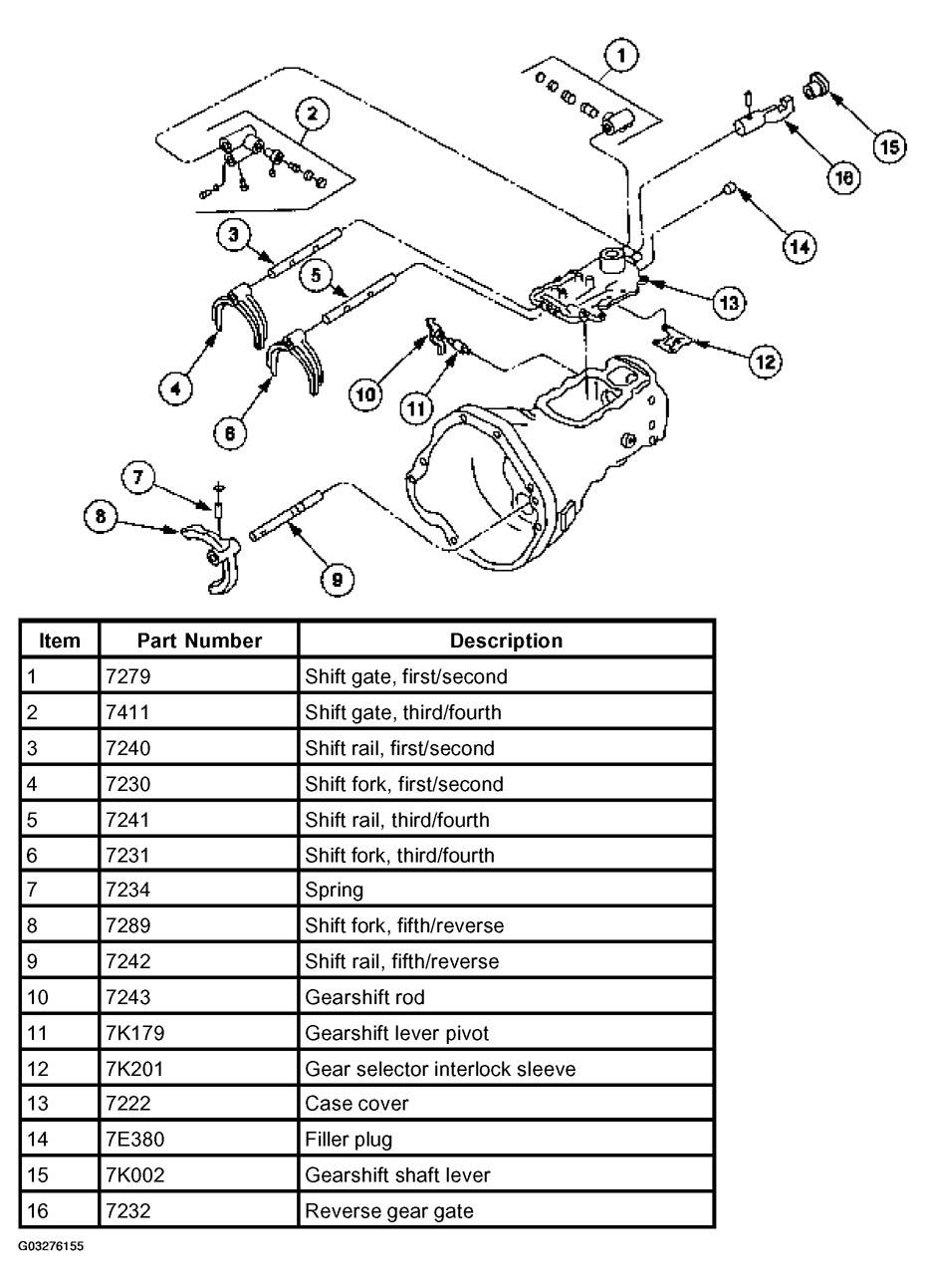

Fig 1: Exploded View Of Transmission Shift Components
G03276155Courtesy of FORD MOTOR CO.
