Diagnostic Procedure

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

For testing procedure, see Fig 1-Fig 6 .

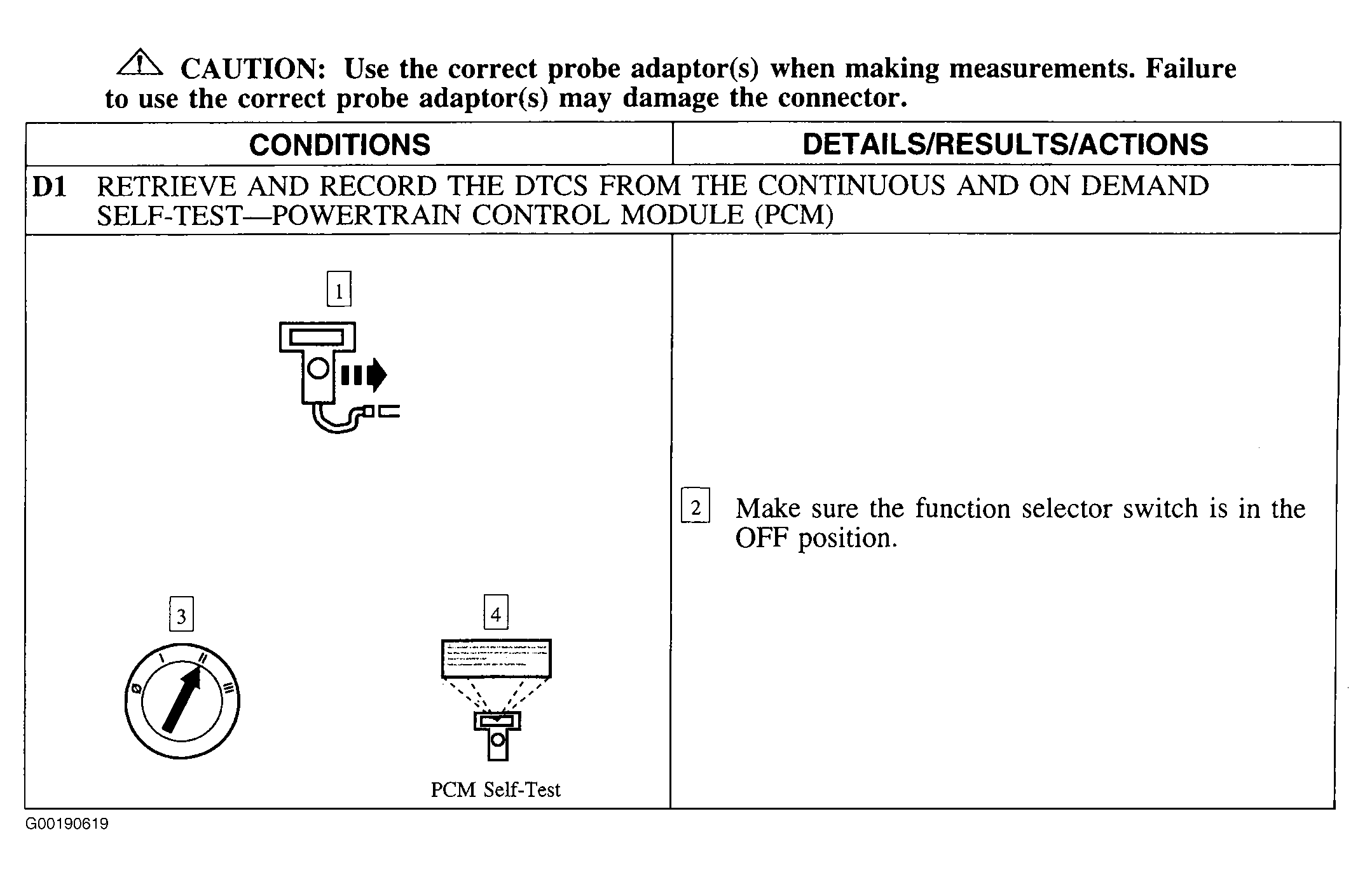

Fig 1: Test D (1 Of 6 - Step D1)

Courtesy of FORD MOTOR CO.

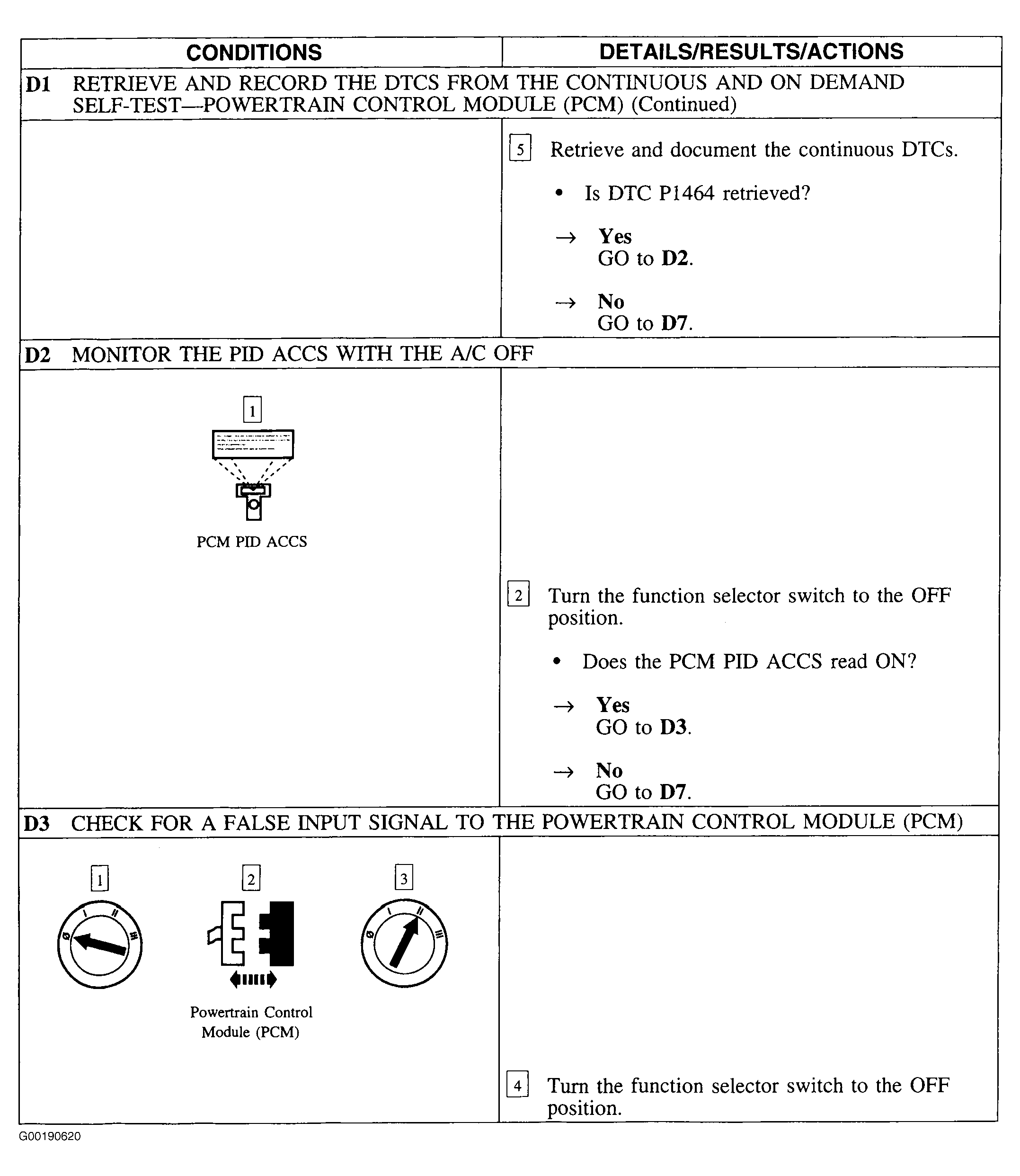

Fig 2: Test D (2 Of 6 - Steps D1 Cont.-D3)

Courtesy of FORD MOTOR CO.

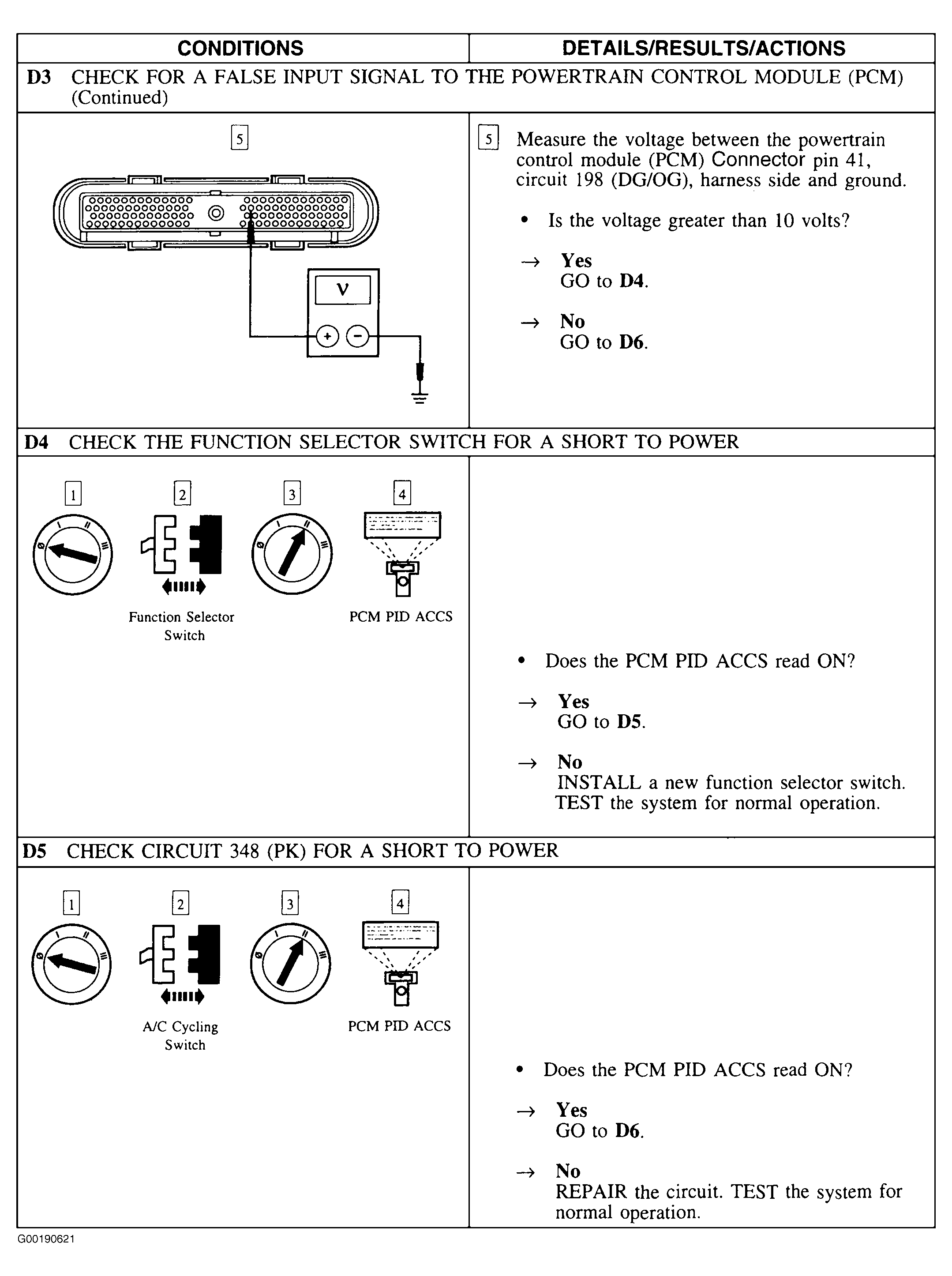

Fig 3: Test D (3 Of 6 - Steps D3 Cont.-D5)

Courtesy of FORD MOTOR CO.

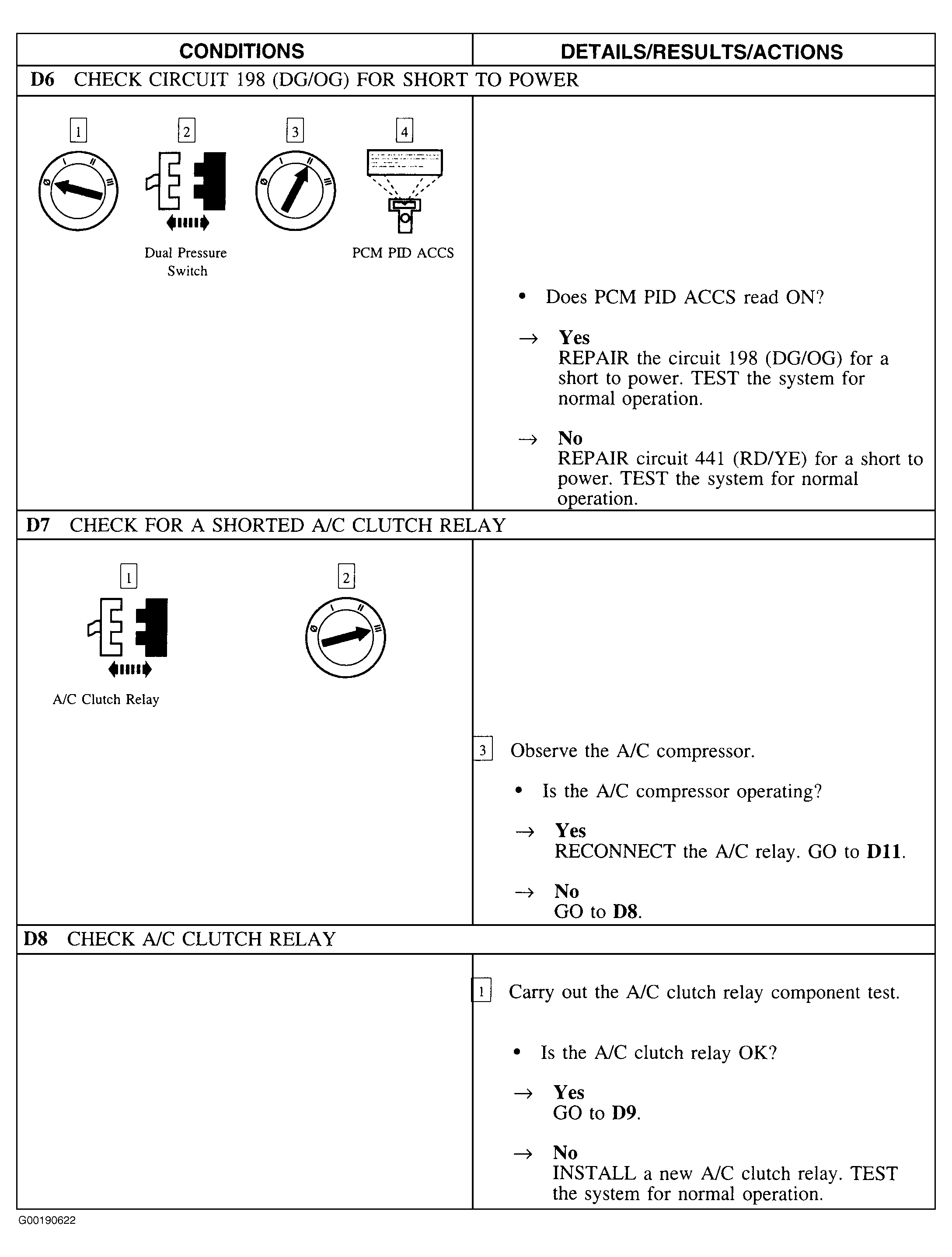

Fig 4: Test D (4 Of 6 - Steps D6-D8)

Courtesy of FORD MOTOR CO.

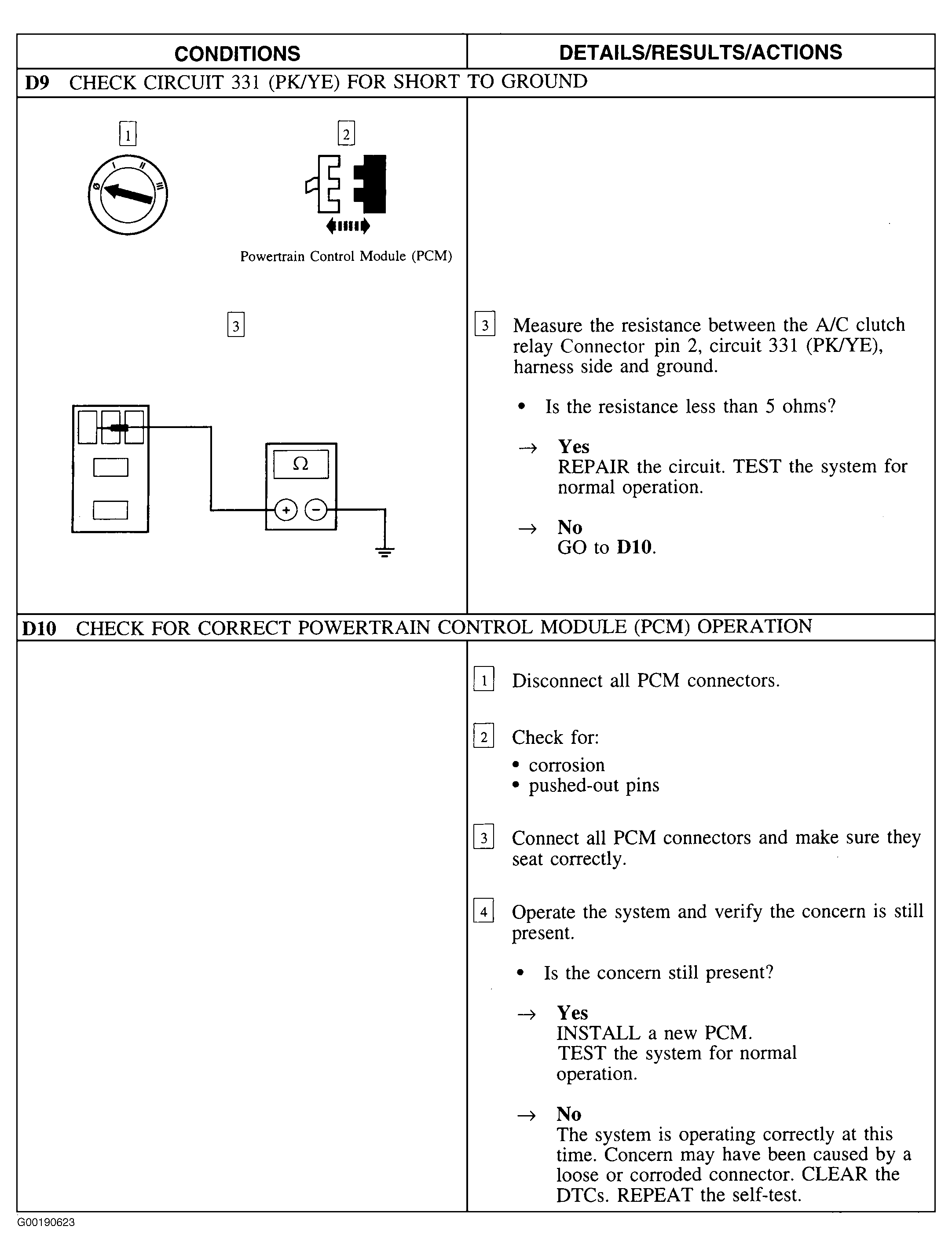

Fig 5: Test D (5 Of 6 - Steps D9-D10)

Courtesy of FORD MOTOR CO.

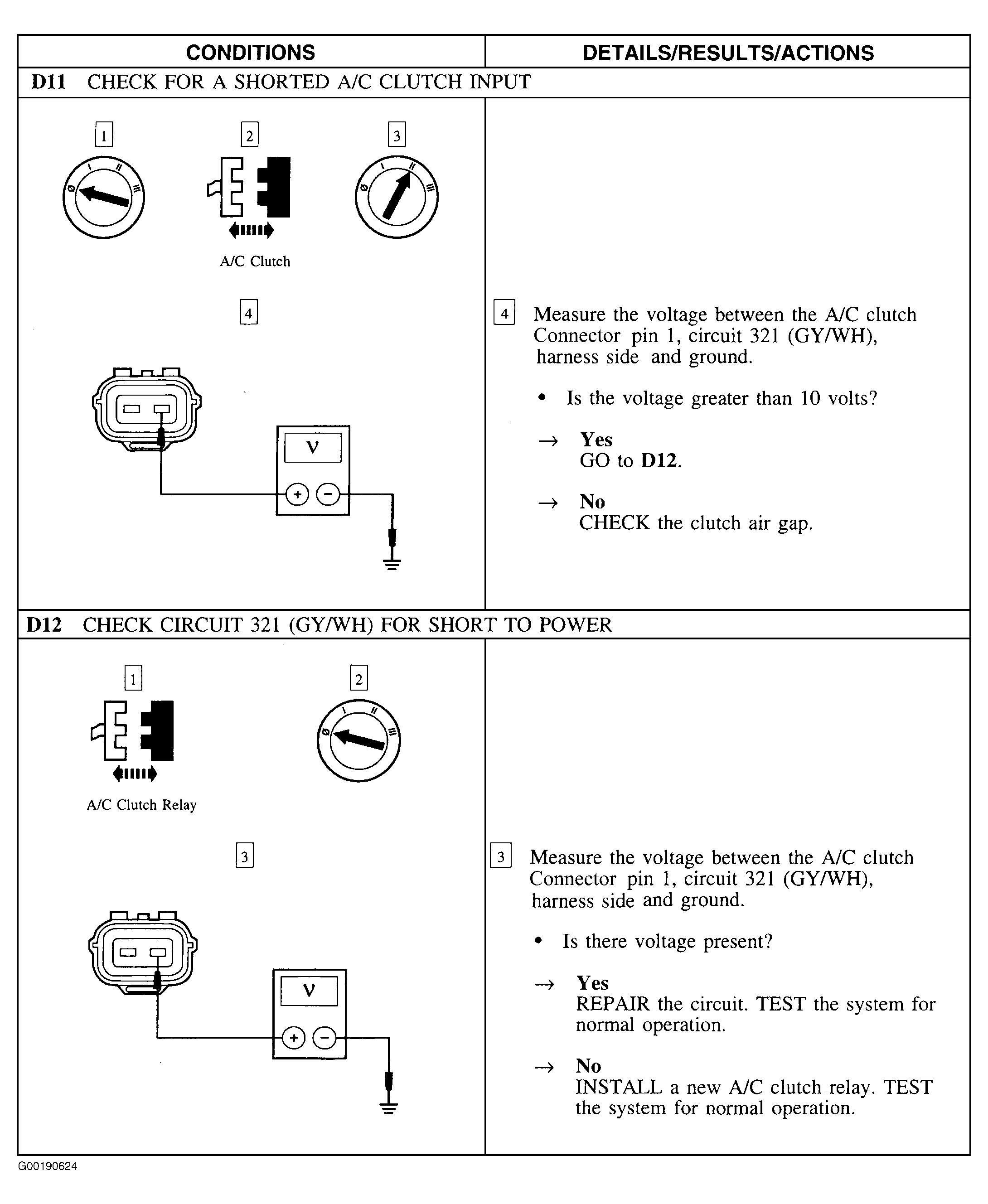

Fig 6: Test D (6 Of 6 - Steps D11-D12)

Courtesy of FORD MOTOR CO.
