Diagnostic Procedure

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

For testing procedure, see Fig 1-Fig 13 .

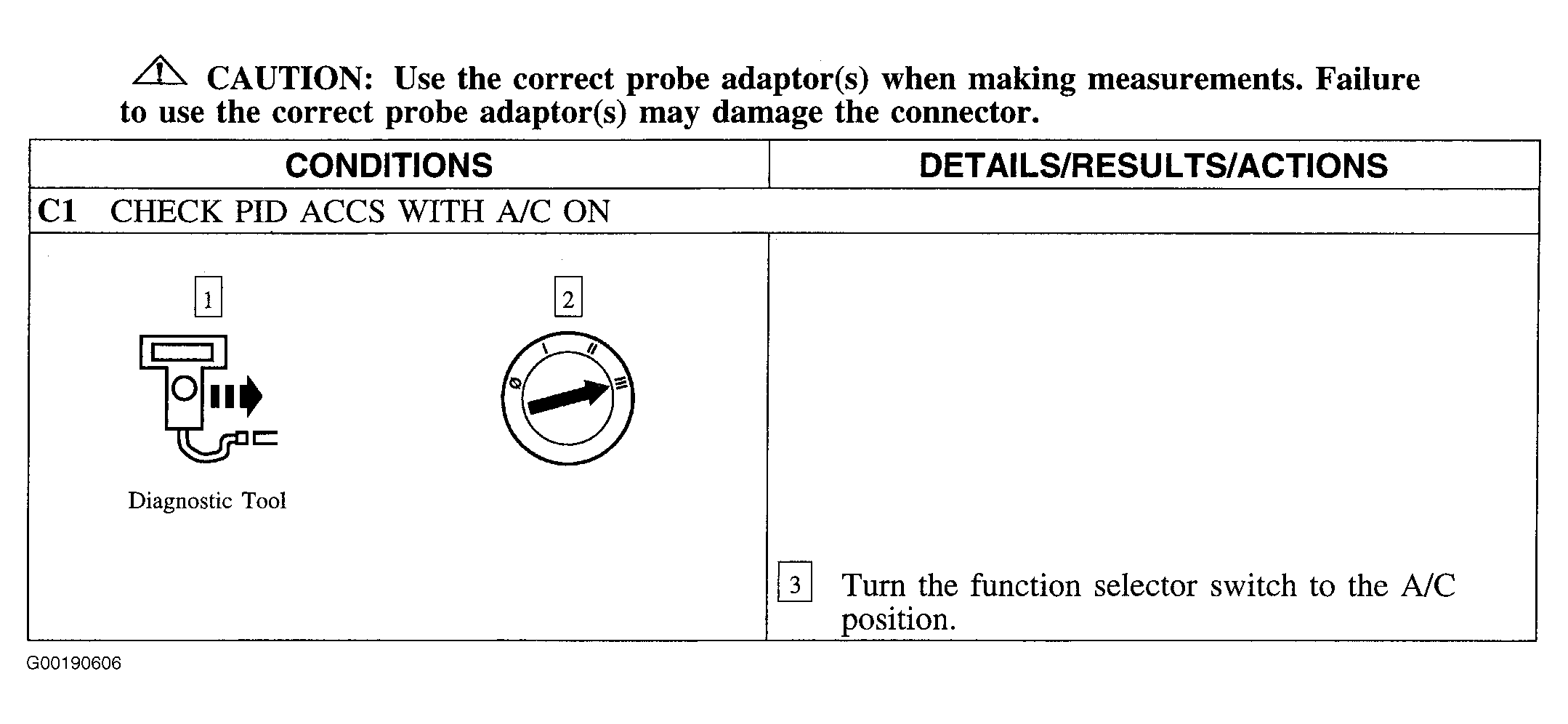

Fig 1: Test C (1 Of 13 - Step C1)

Courtesy of FORD MOTOR CO.

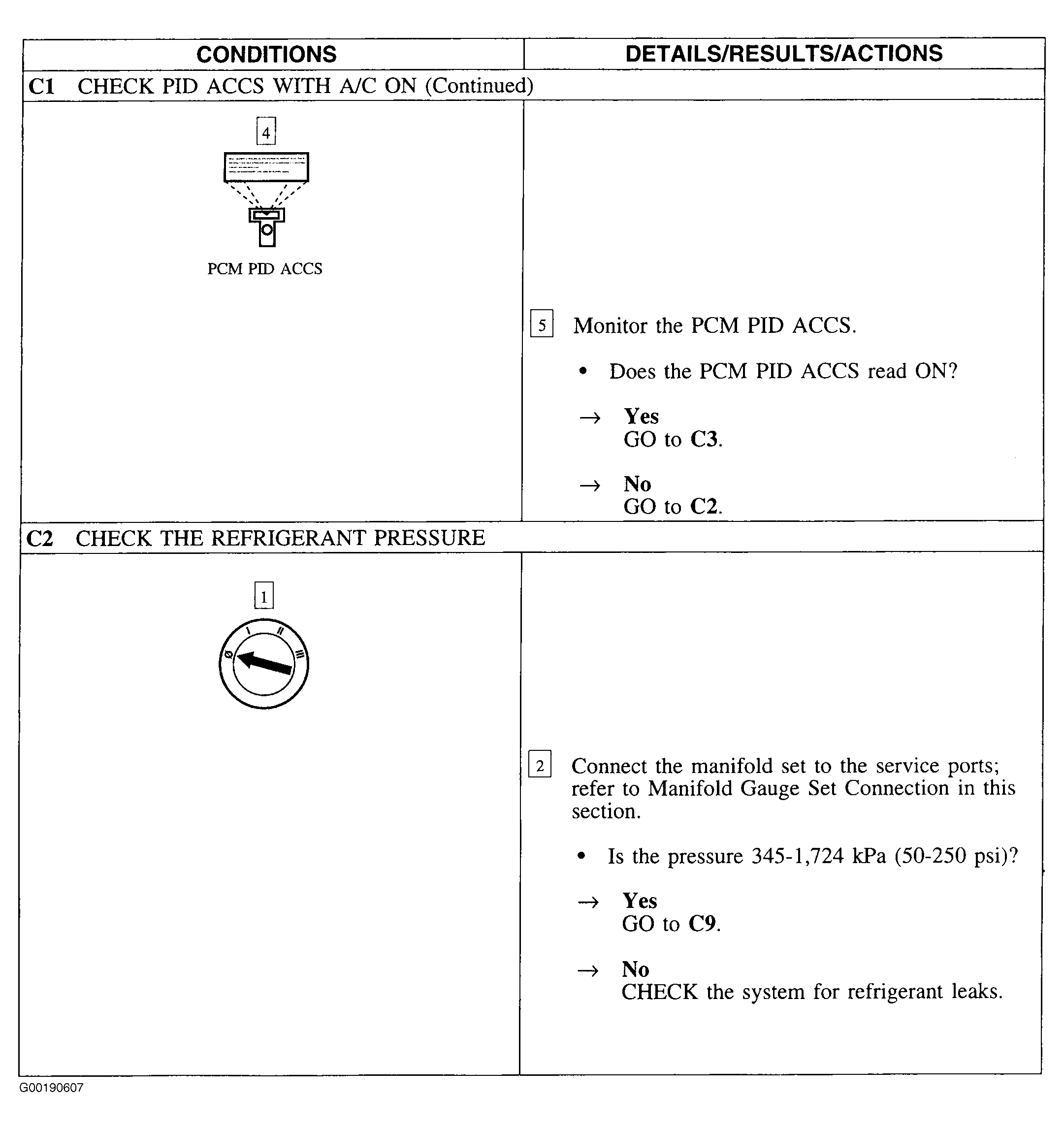

Fig 2: Test C (2 Of 13 - Steps C1 Cont.-C2)

Courtesy of FORD MOTOR CO.

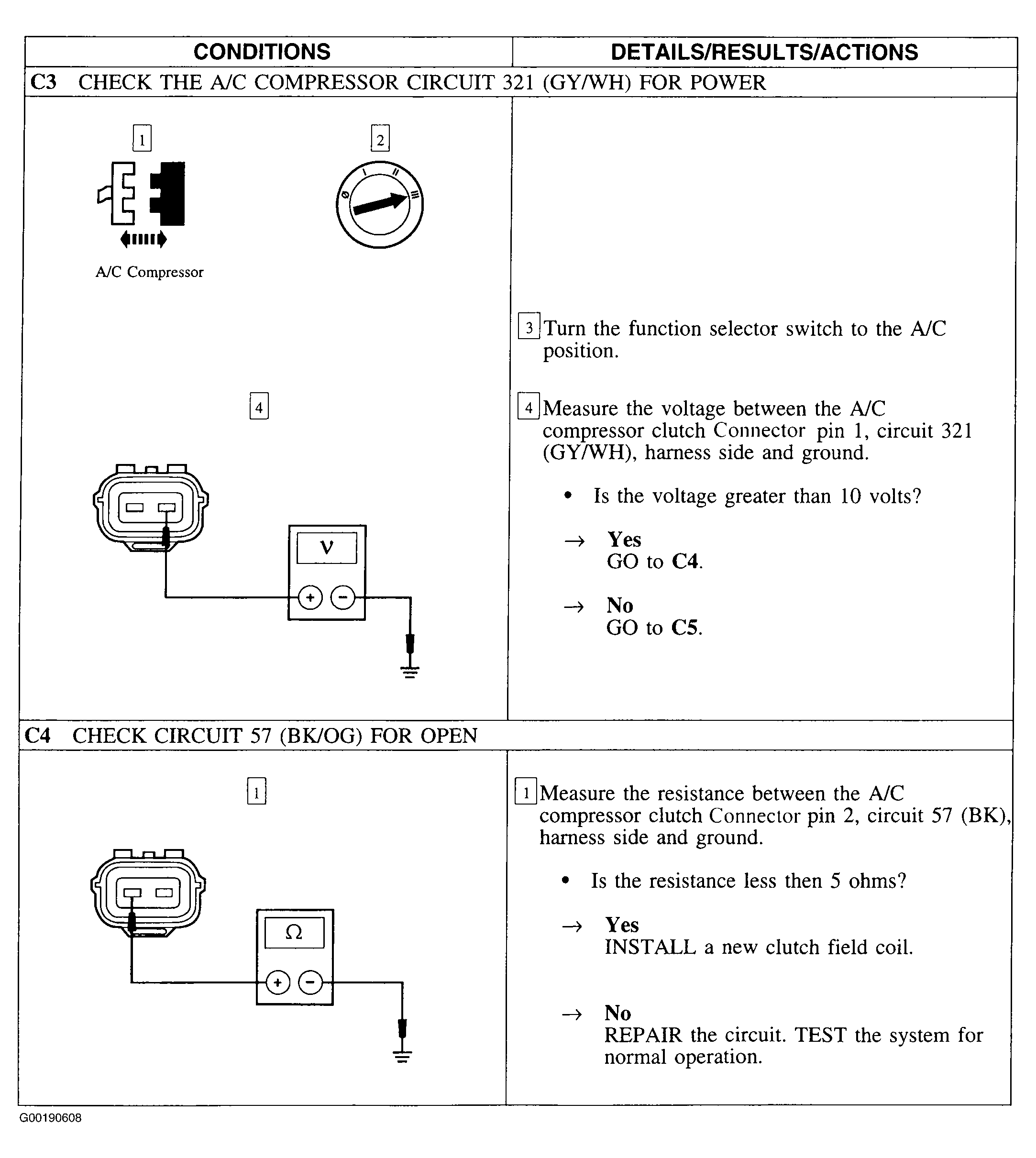

Fig 3: Test C (3 Of 13 - Steps C3-C4)

Courtesy of FORD MOTOR CO.

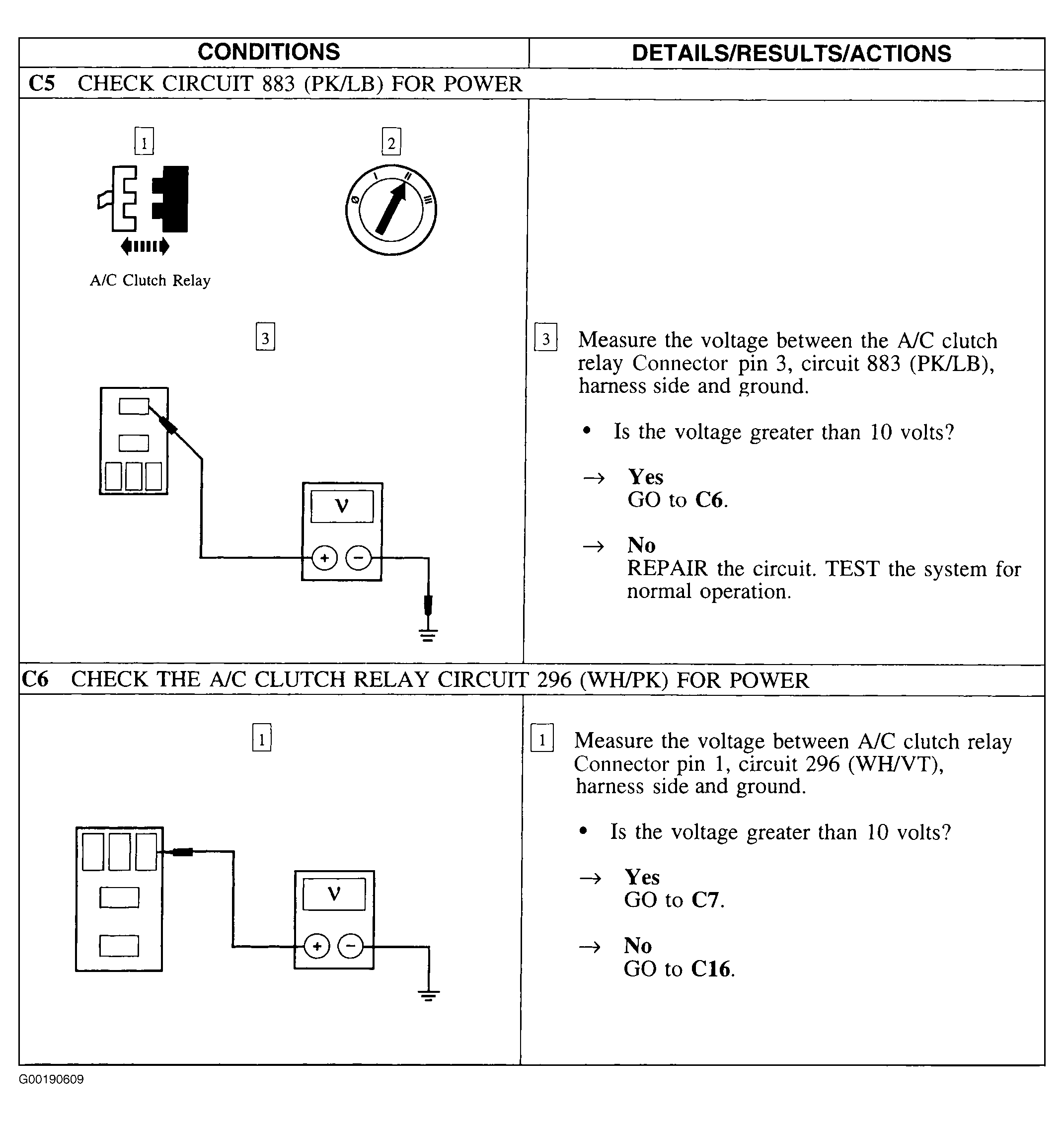

Fig 4: Test C (4 Of 13 - Steps C5-C6)

Courtesy of FORD MOTOR CO.

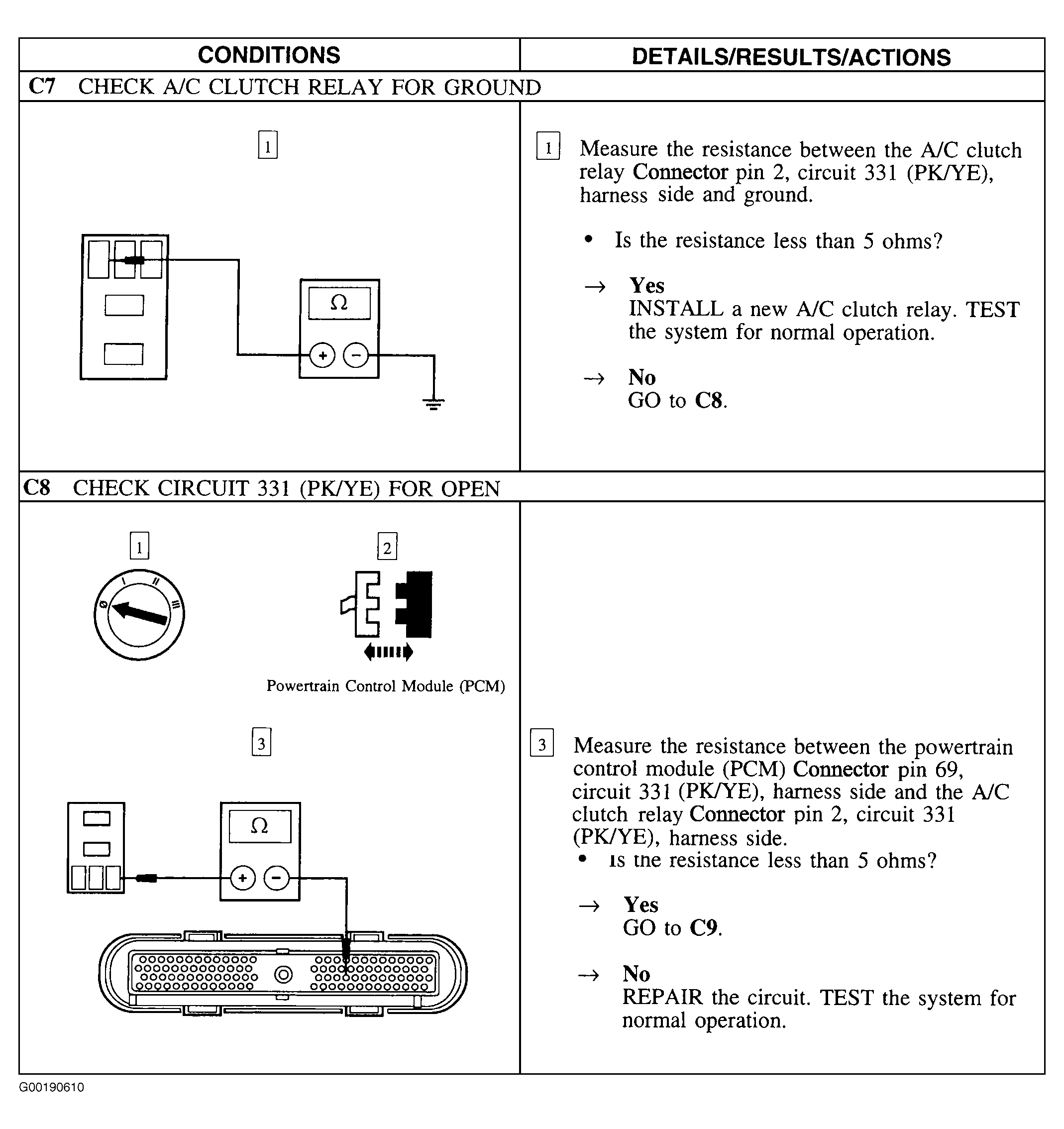

Fig 5: Test C (5 Of 13 - Steps C7-C8)

Courtesy of FORD MOTOR CO.

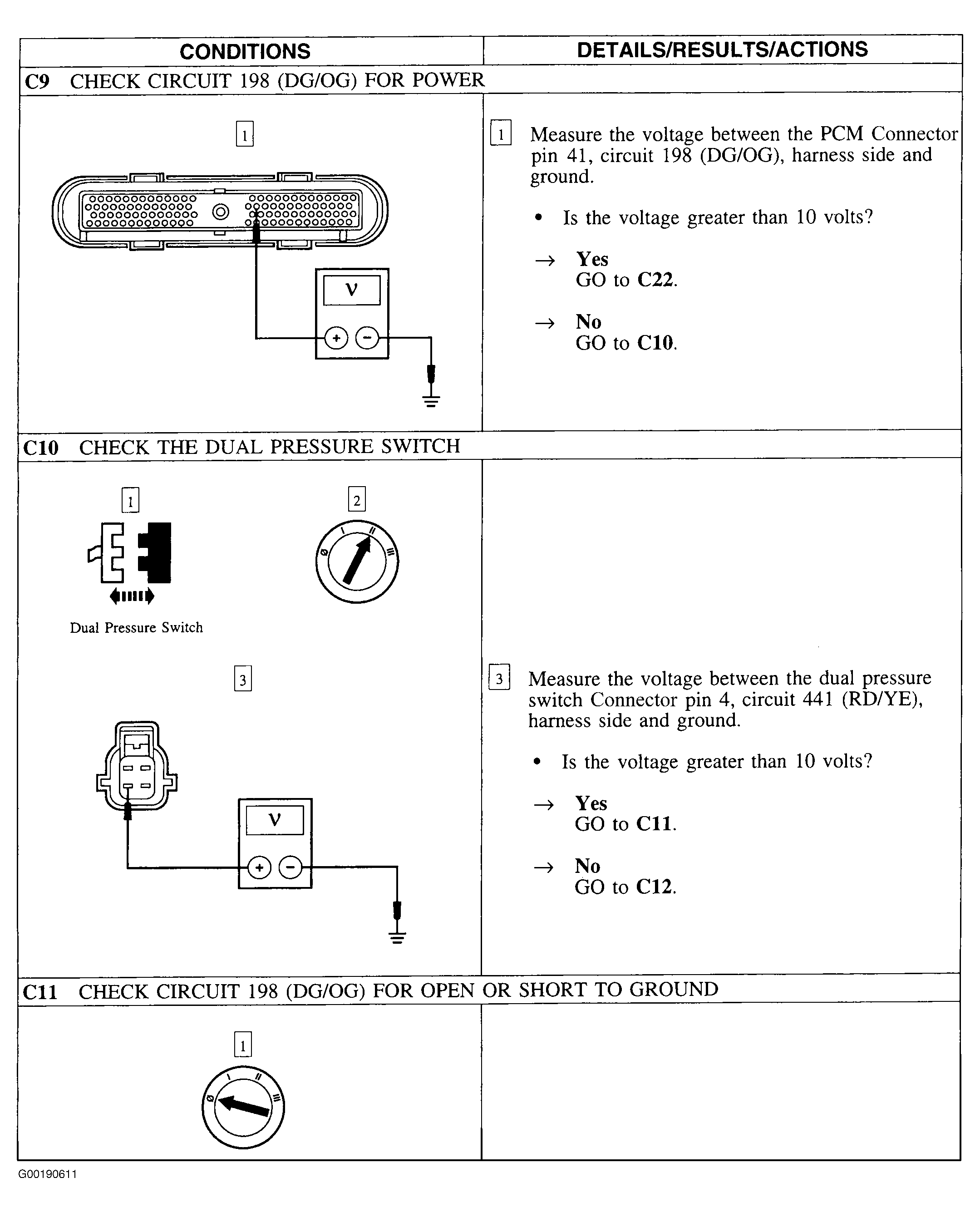

Fig 6: Test C (6 Of 13 - Steps C9-C10)

Courtesy of FORD MOTOR CO.

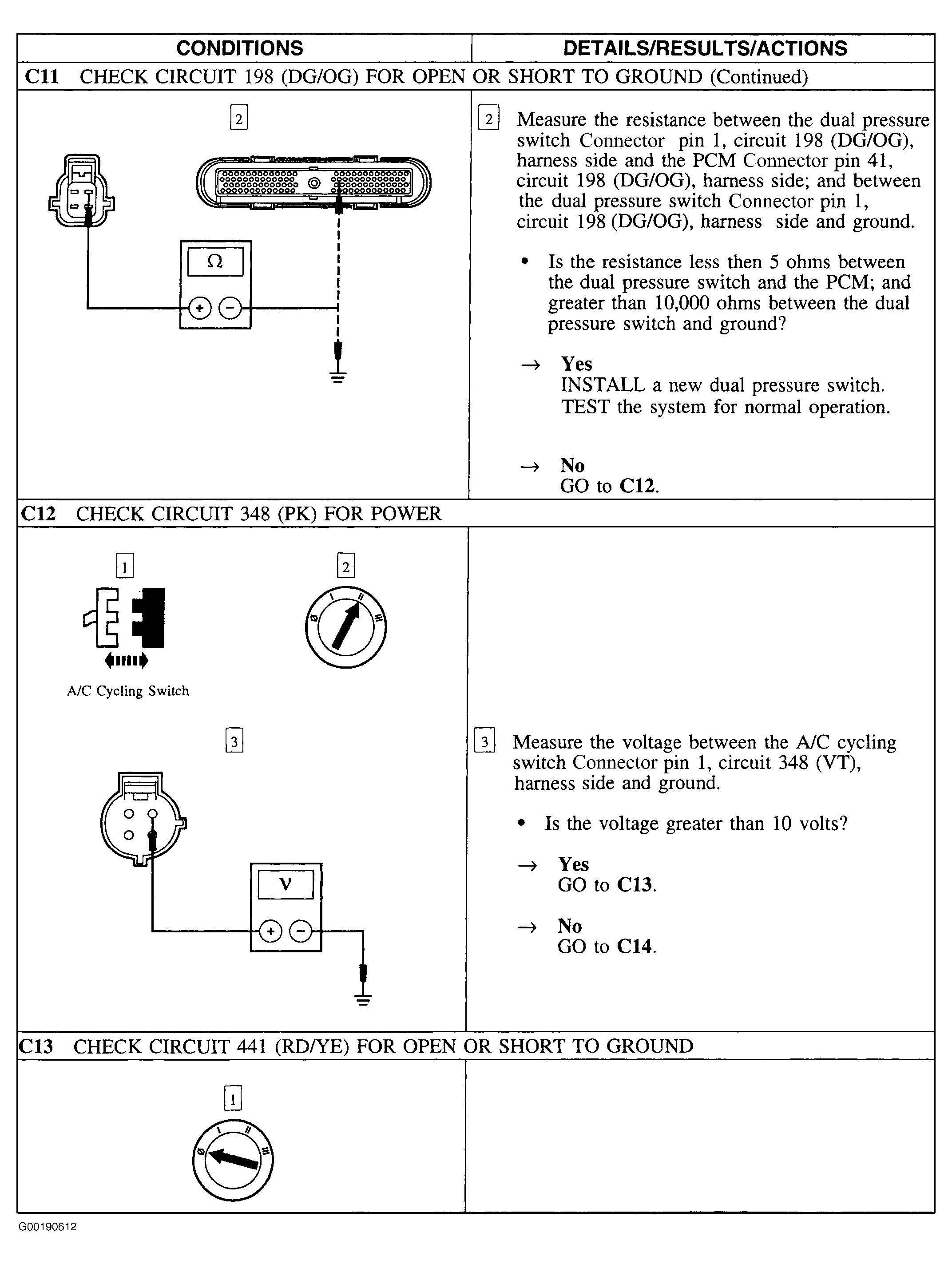

Fig 7: Test C (7 Of 13 - Steps C11-C13)

Courtesy of FORD MOTOR CO.

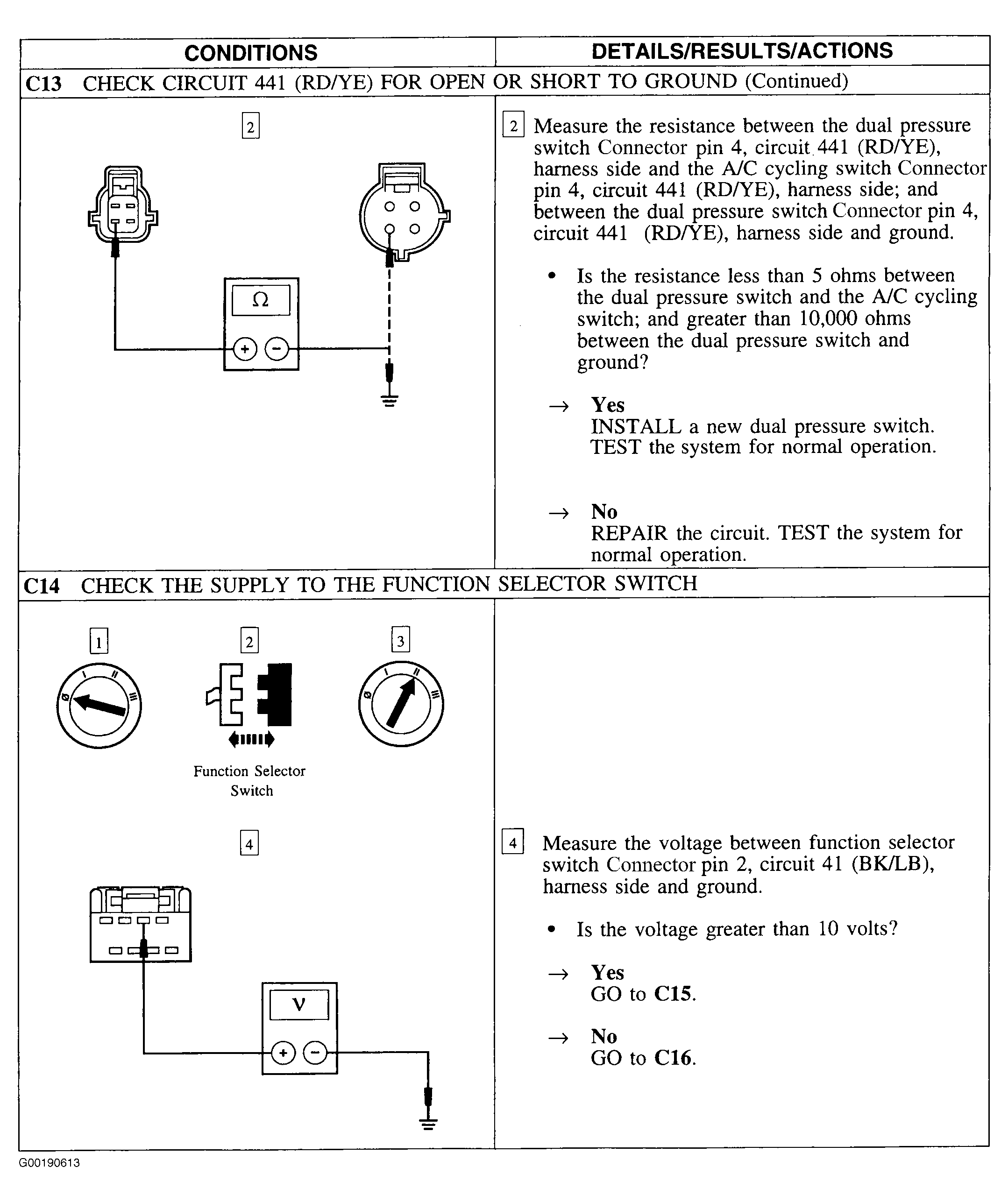

Fig 8: Test C (8 Of 13 - Steps C13 Cont.-C14)

Courtesy of FORD MOTOR CO.

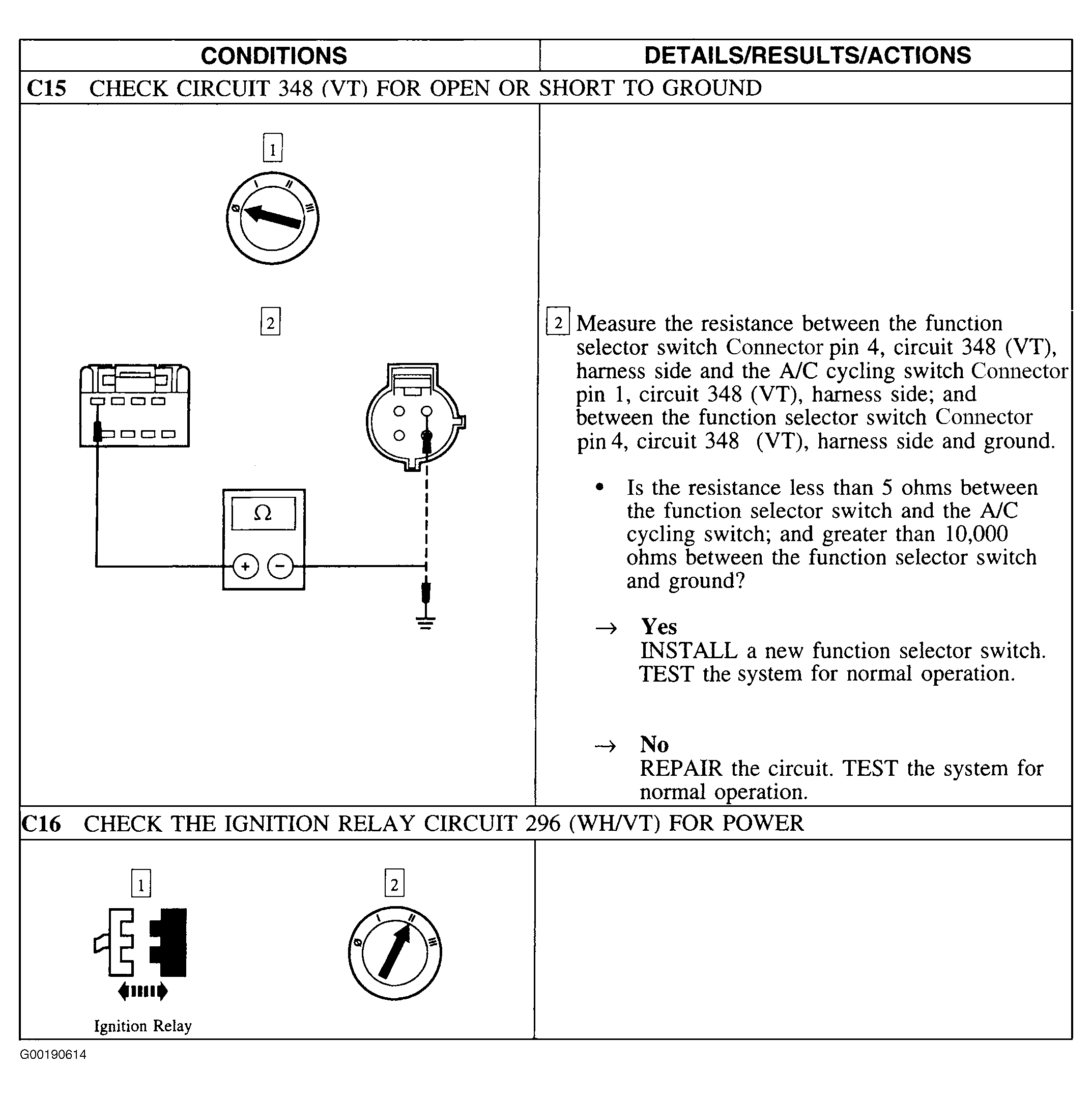

Fig 9: Test C (9 Of 13 - Steps C15-C16)

Courtesy of FORD MOTOR CO.

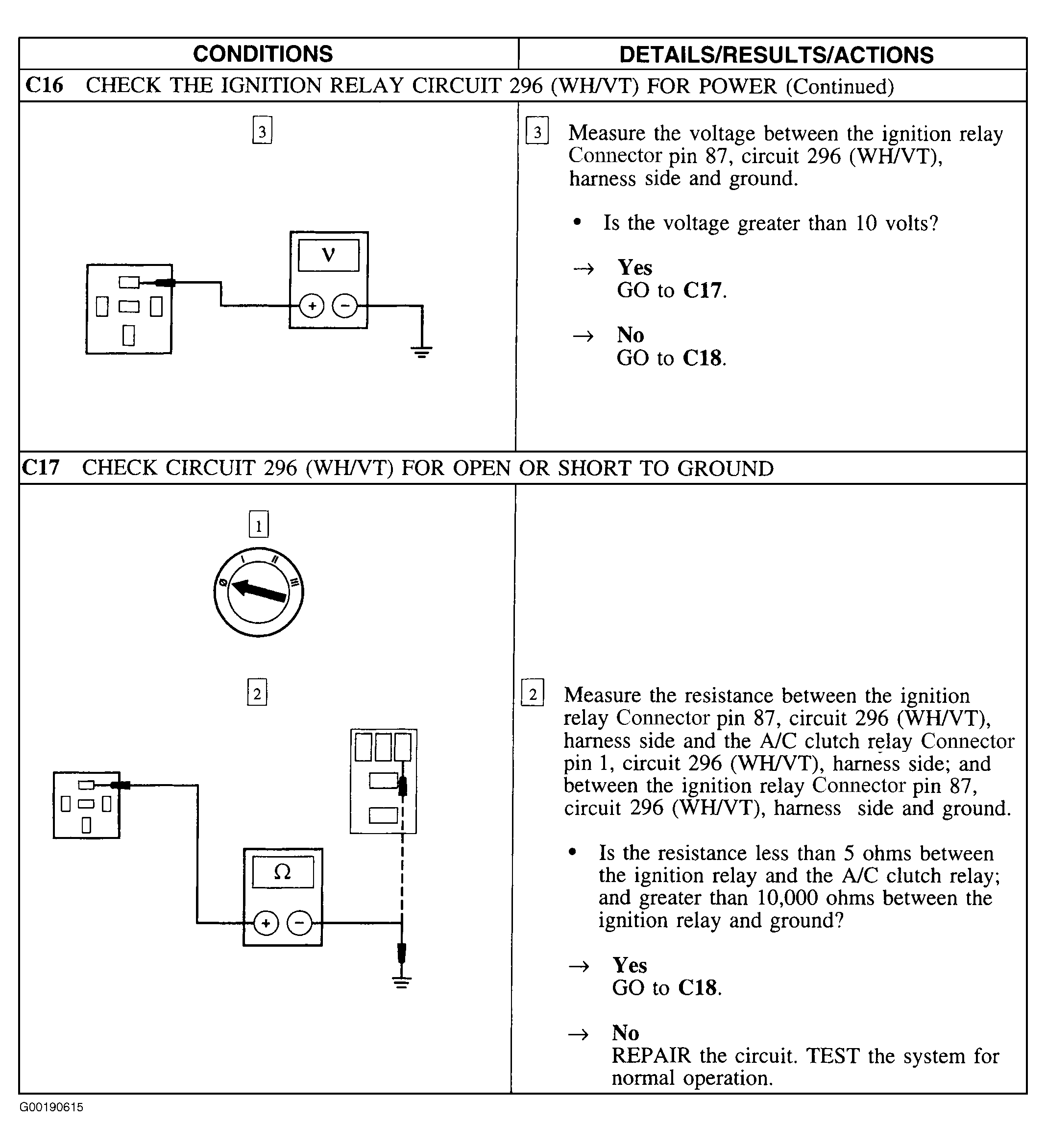

Fig 10: Test C (10 Of 13 - Steps C16 Cont.-C17)

Courtesy of FORD MOTOR CO.

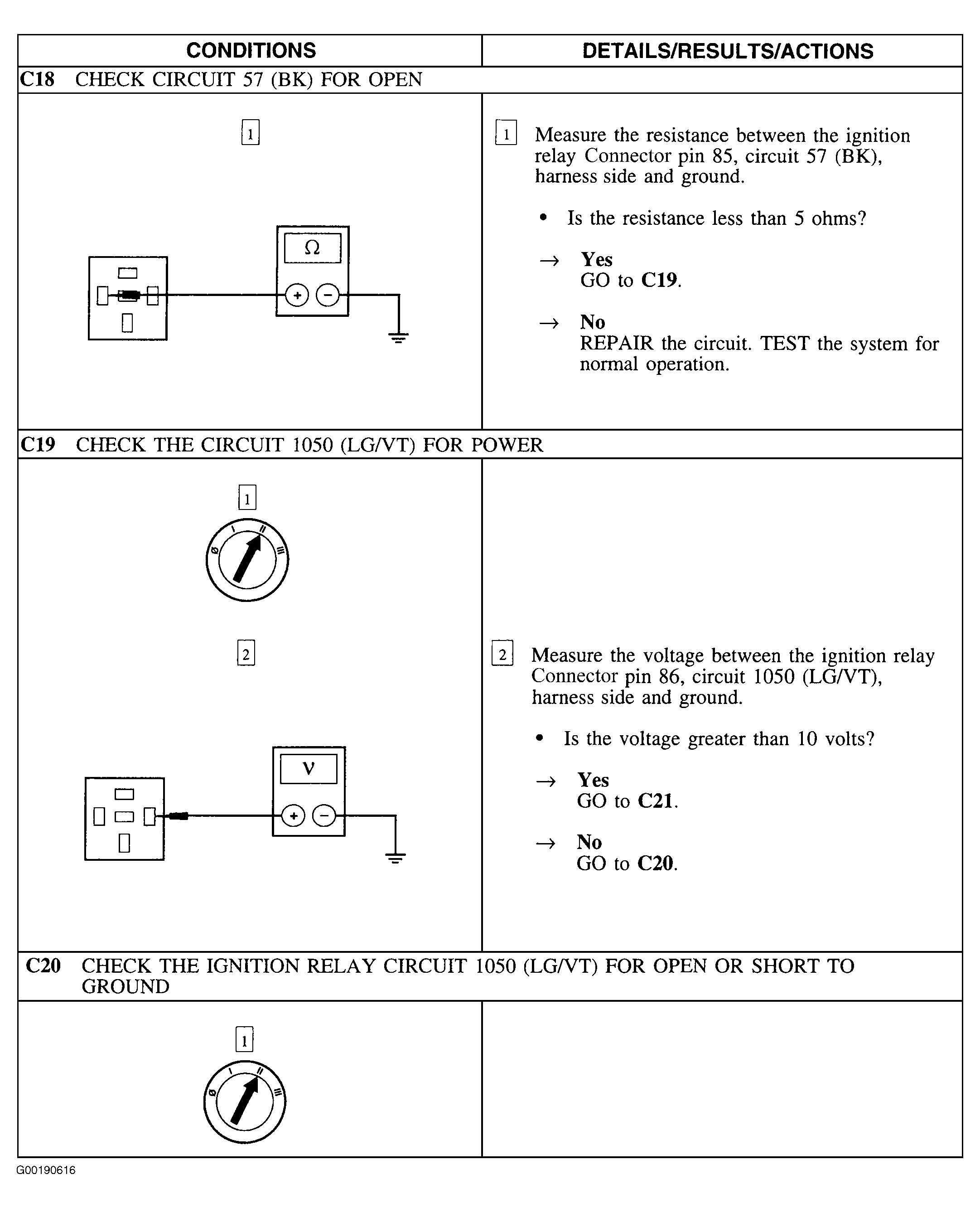

Fig 11: Test C (11 Of 13 Steps C18-C20)

Courtesy of FORD MOTOR CO.

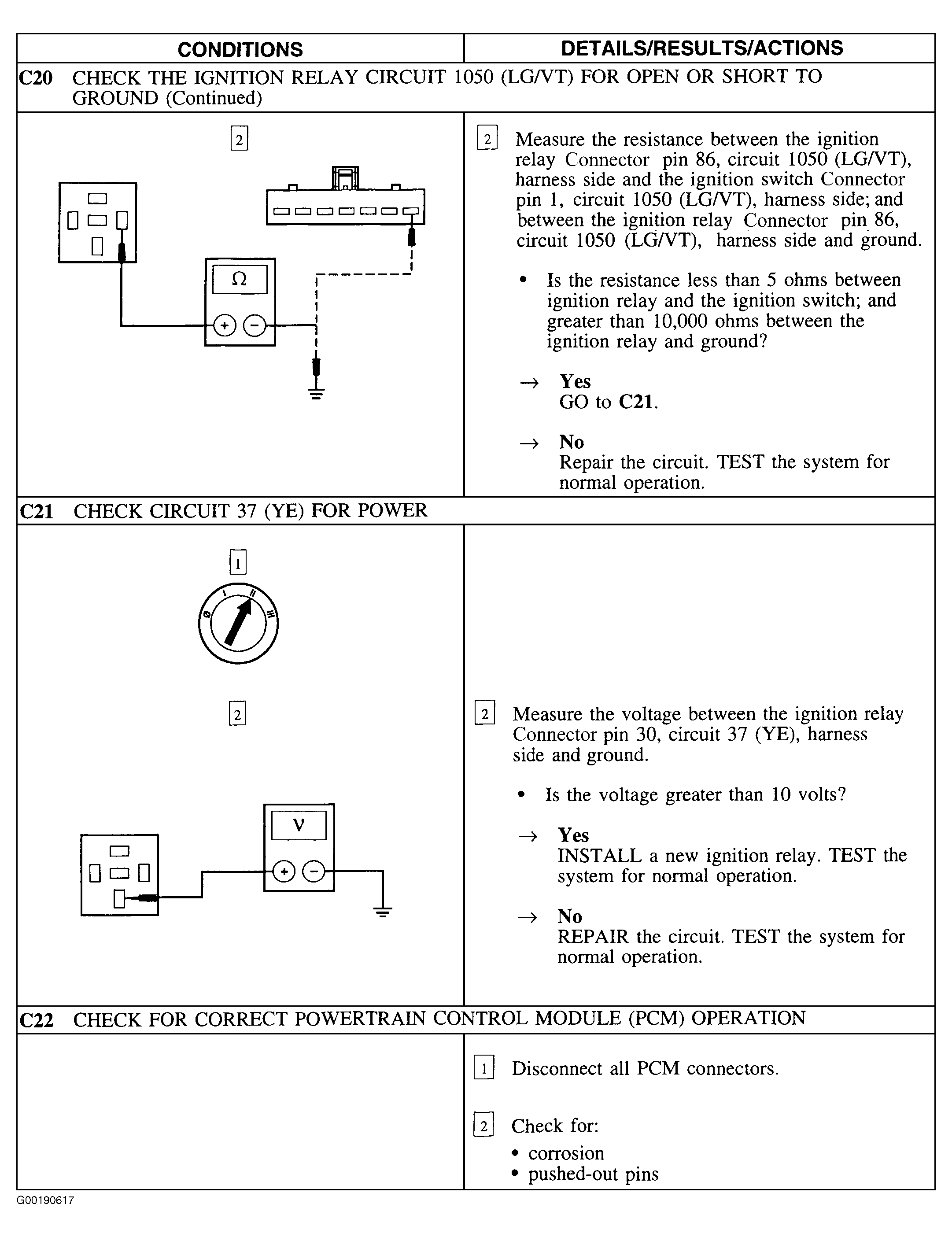

Fig 12: Test C (12 Of 13 - Steps C20 Cont.-C22)

Courtesy of FORD MOTOR CO.

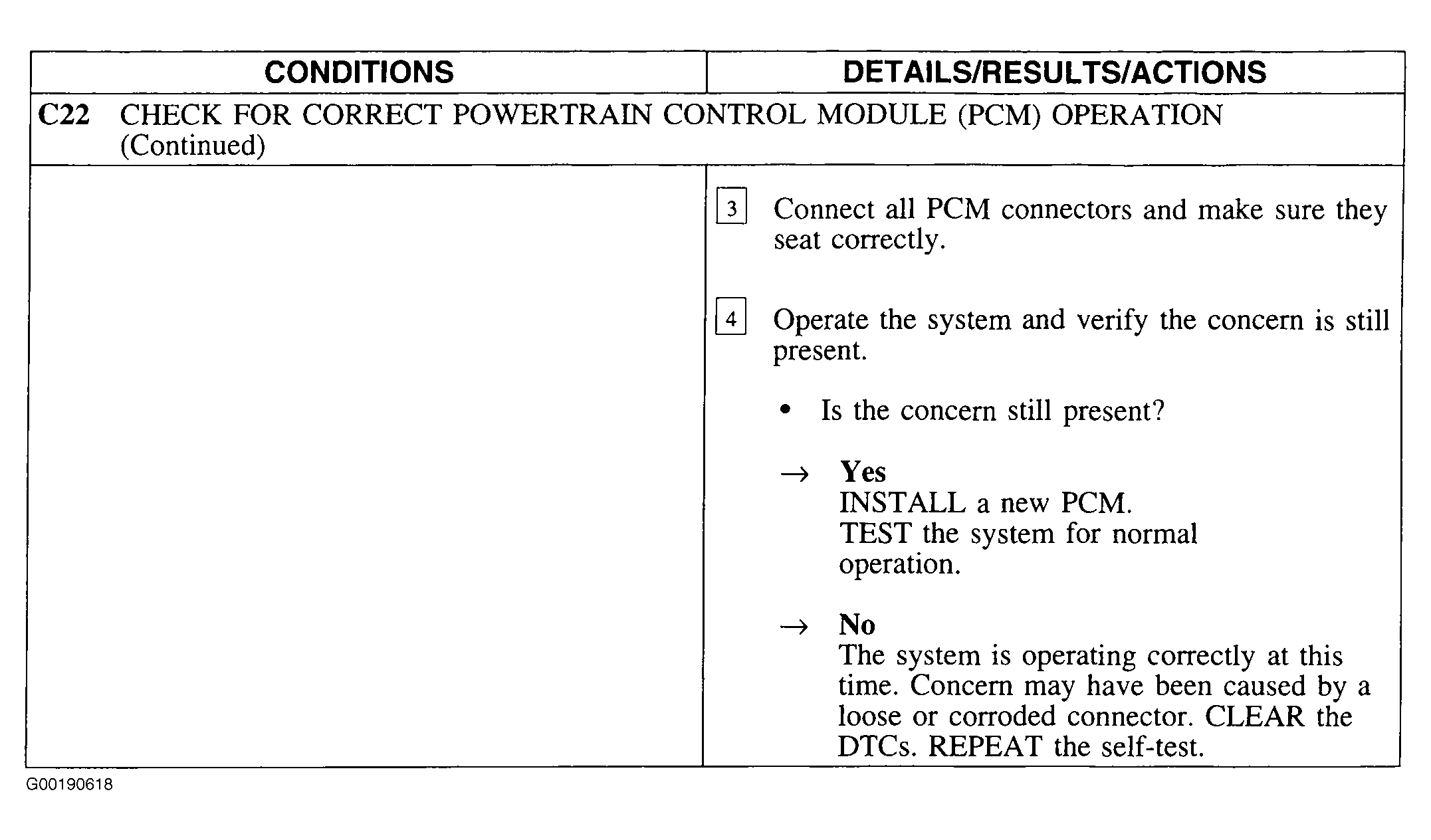

Fig 13: Test A (13 Of 13 - Step C22 Cont.)

Courtesy of FORD MOTOR CO.
