Clutch Pedal: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a screwdriver, disconnect the clutch master cylinder rod from the clutch pedal pin.

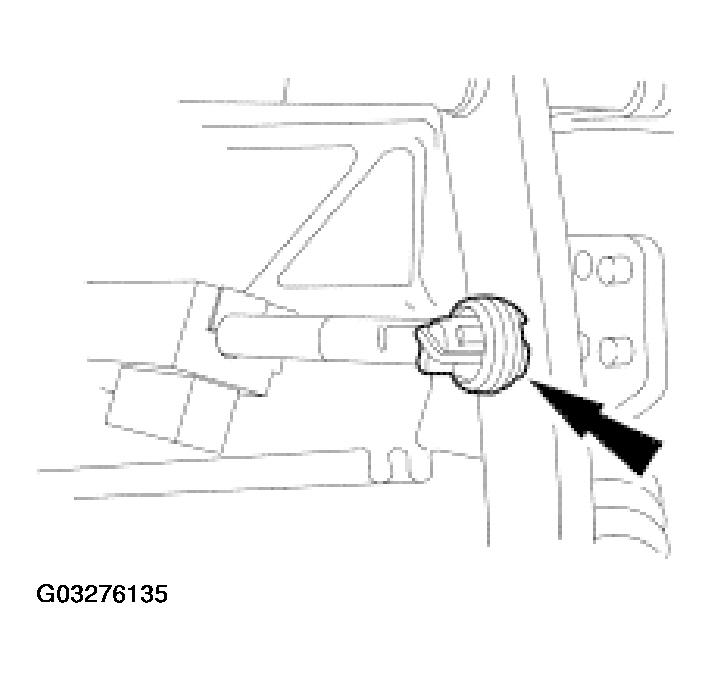

    Fig 1: Disconnecting Clutch Master Cylinder Rod From Clutch Pedal Pin
    G03276135Courtesy of FORD MOTOR CO.
  2. Remove the LH cowl side trim panel.
  3. Remove the parking brake release bolts.

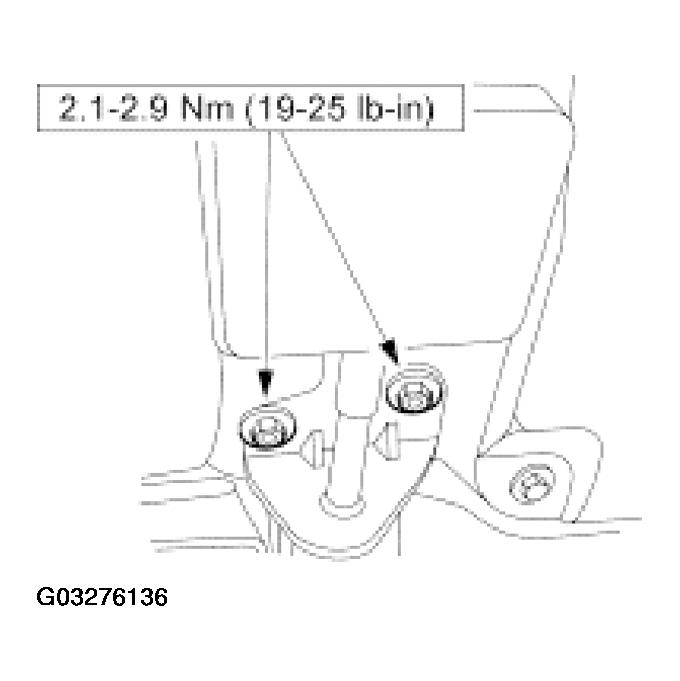

    Fig 2: Removing Parking Brake Release Bolts
    G03276136Courtesy of FORD MOTOR CO.
  4. Remove the parking brake control bolts, then position it aside.

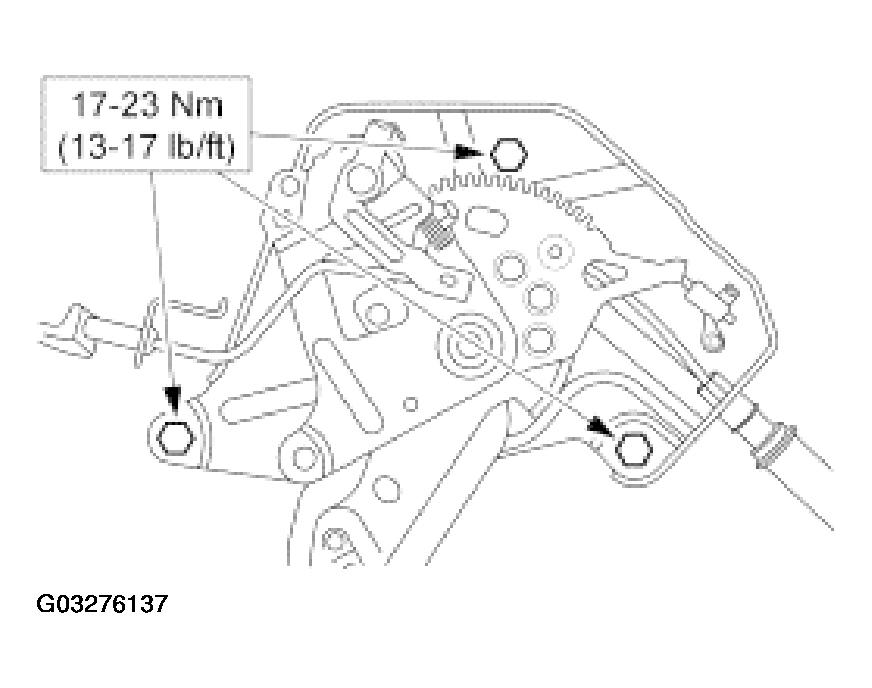

    Fig 3: Removing Parking Brake Control Bolts
    G03276137Courtesy of FORD MOTOR CO.
  5. Remove the retaining ring, then slide the clutch pedal from the clutch and brake pedal support.
