Removal And Installation: Bearing: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Using the special tool, remove the transmission input shaft pilot bearing.

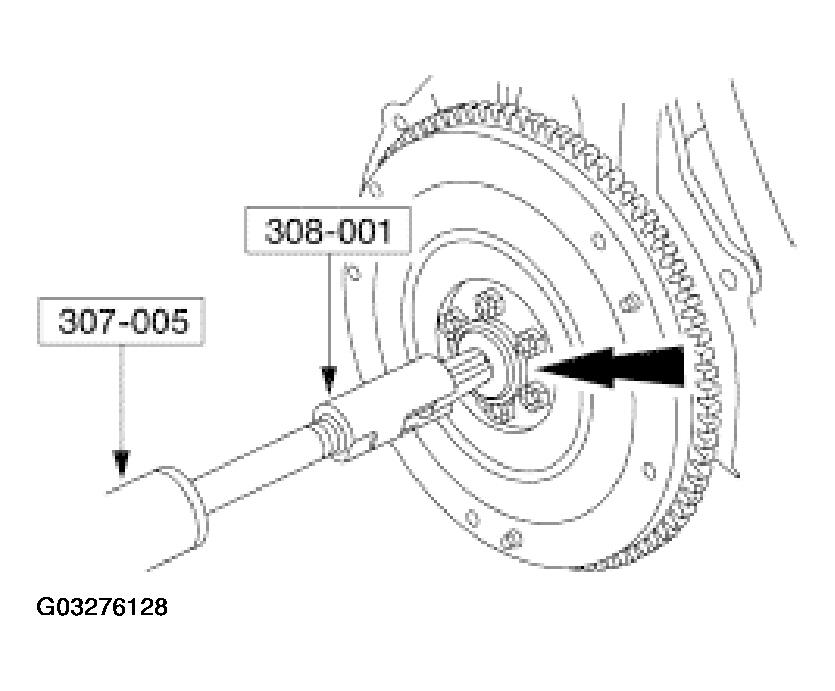

Fig 1: Removing Transmission Input Shaft Pilot Bearing
Courtesy of FORD MOTOR CO.
Inspect the transmission input shaft pilot bearing for:
- Misalignment and looseness in the flywheel.
- Needle rollers for scoring, worn or broken needle rollers, inadequate grease or discoloration.
- Seal leakage.

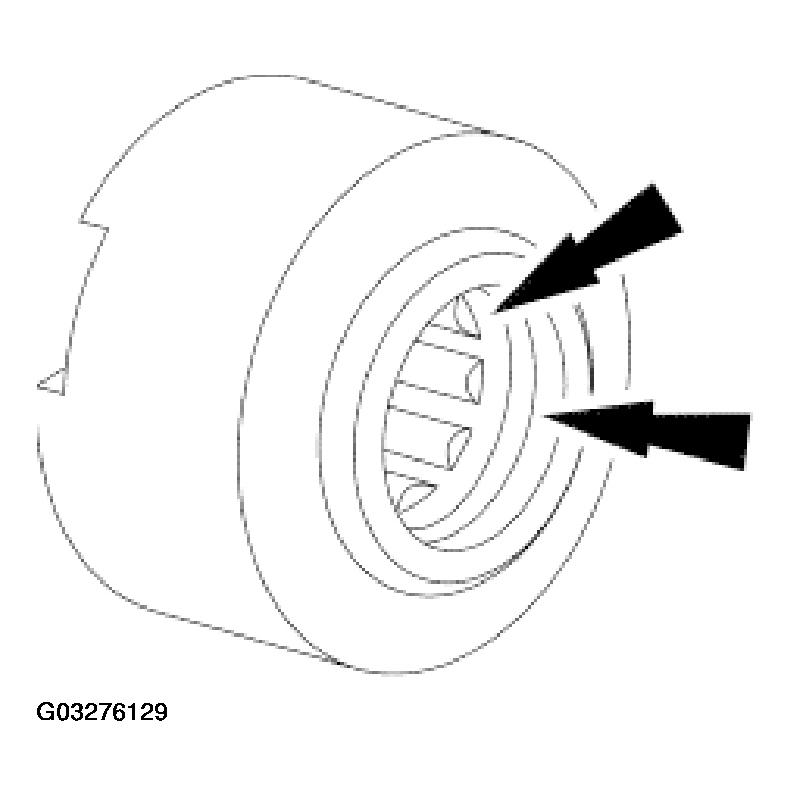

  Fig 2: Inspecting Transmission Input Shaft Pilot Bearing
  Courtesy of FORD MOTOR CO.
