Removal And Installation: Bearing: Installation
WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

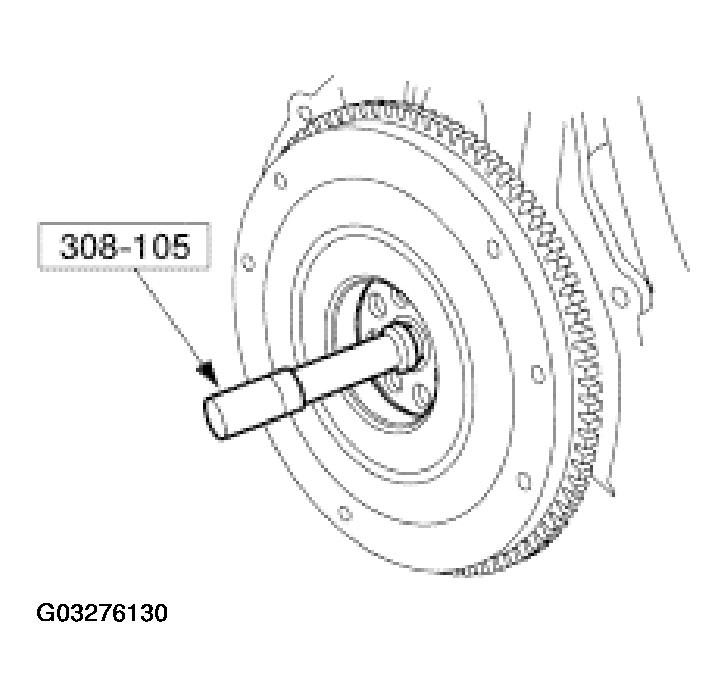

- Using a soft-face hammer and the special tool, install the transmission input shaft pilot bearing.
NOTE:
The transmission input shaft pilot bearing can only be installed with the seal facing the transmission. The transmission input shaft pilot bearing is pregreased and does not require additional lubrication. A new transmission input shaft pilot bearing must be installed whenever it is removed.
