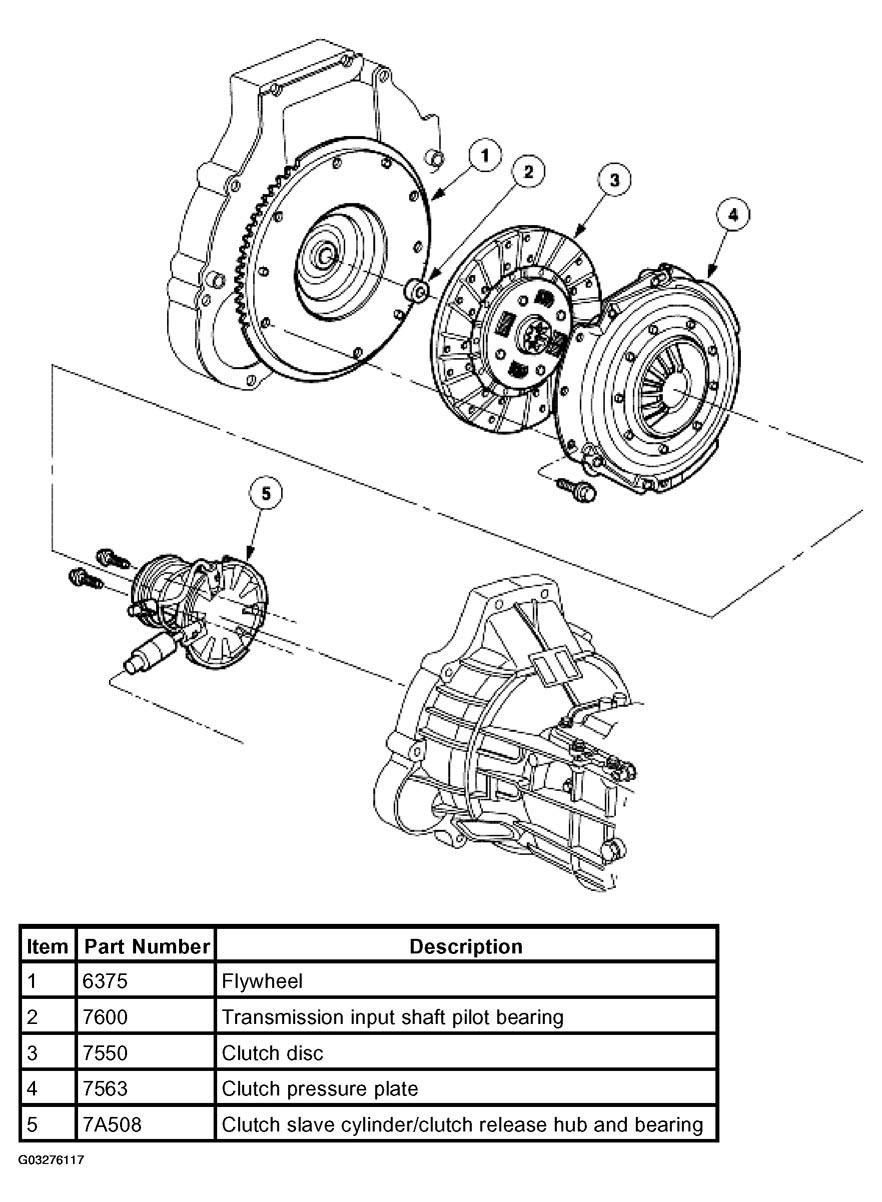

Clutch System Components
WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
- The clutch is a single-plate, dry friction clutch disc with a self-adjusting, diaphragm-style spring clutch pressure plate.
- The clutch operating mechanism consists of a clutch slave cylinder with an integral release bearing.
- A pilot bearing supports the end of the input shaft. The bearing does not require lubrication unless the clutch system is serviced.
