Transmission Selector Lever: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the ignition switch lock cylinder. For additional information, refer to Ignition Switch Lock Cylinder - Functional Lock Cylinder in STEERING COLUMN .
  2. Remove the upper steering column shroud and the rubber shift lever cover.

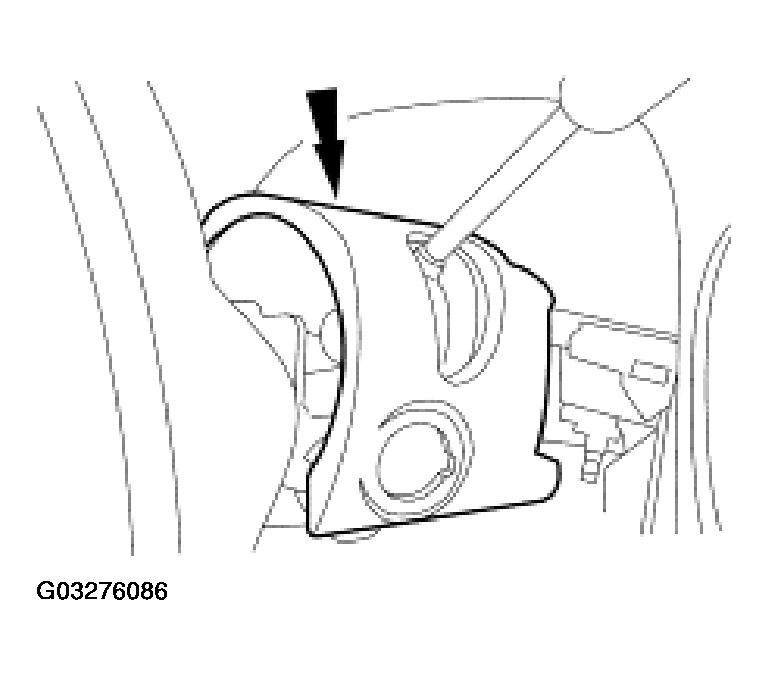

    Fig 1: Removing Upper Steering Column Shroud And Rubber Shift Lever Cover
    G03276086Courtesy of FORD MOTOR CO.
  3. Remove the gearshift lever.
    1. Disconnect the shift control selector lever harness connector.
    2. Remove and discard the gearshift lever pin.
    3. Remove the gearshift lever.

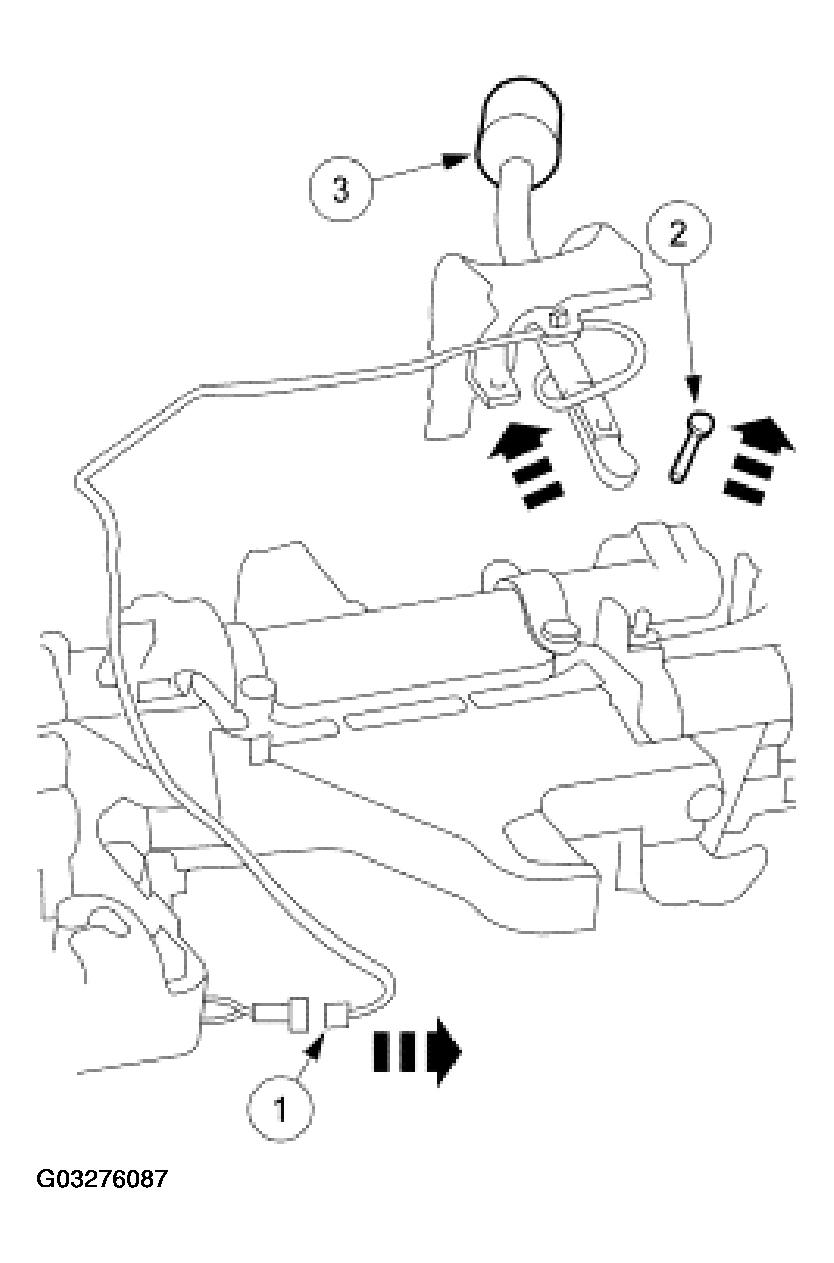

      Fig 2: Removing Gearshift Lever
      G03276087Courtesy of FORD MOTOR CO.
