Selector Lever Cable and Bracket: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. To install, reverse the removal procedure.
    • Move manual lever into the OVERDRIVE position.
    • Adjust the transmission shift cable. For additional information, REFER to CABLE/BRACKET ADJUSTMENT .

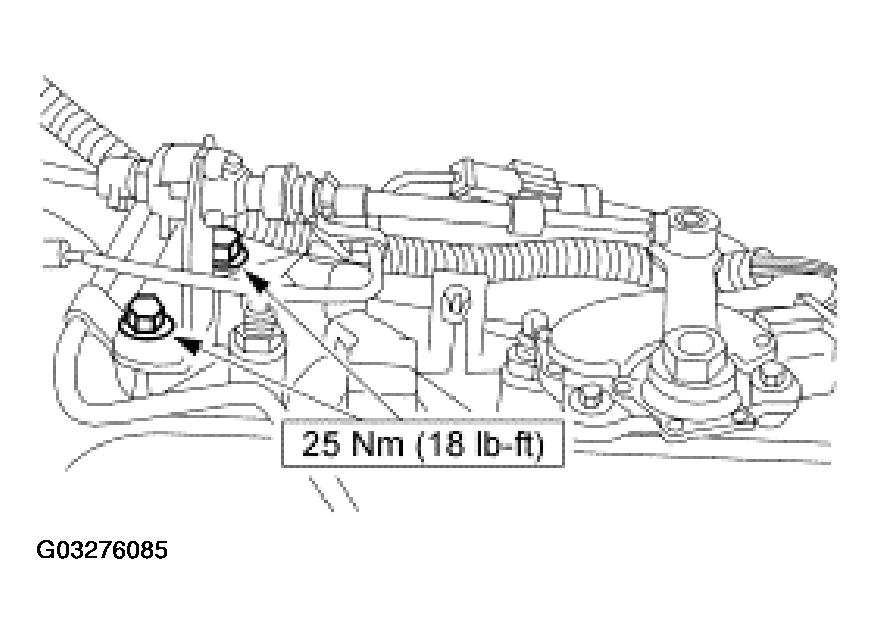

      Fig 1: Installing Transmission Shift Cable Bracket From Automatic Transmission
      G03276085Courtesy of FORD MOTOR CO.
