Brake Shift Interlock Actuator: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Remove the steering column assembly. For additional information, refer to STEERING COLUMN .
Remove the insert plate and the shift lock actuator.
1. Remove the bolts.
2. Remove the insert plate and the shift lock actuator.

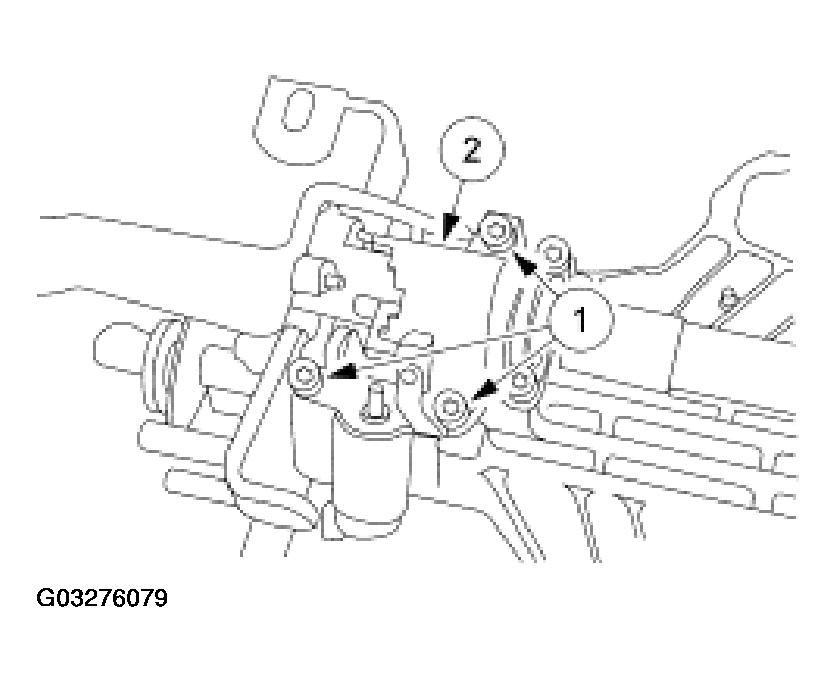

  Fig 1: Removing Insert Plate And Shift Lock Actuator
  Courtesy of FORD MOTOR CO.

NOTE: The shift lock actuator clip is an assembly aid for the assembly plant and does not need to be replaced.

Remove the insert plate from the shift lock actuator.
- Remove and discard the shift lock actuator clip.

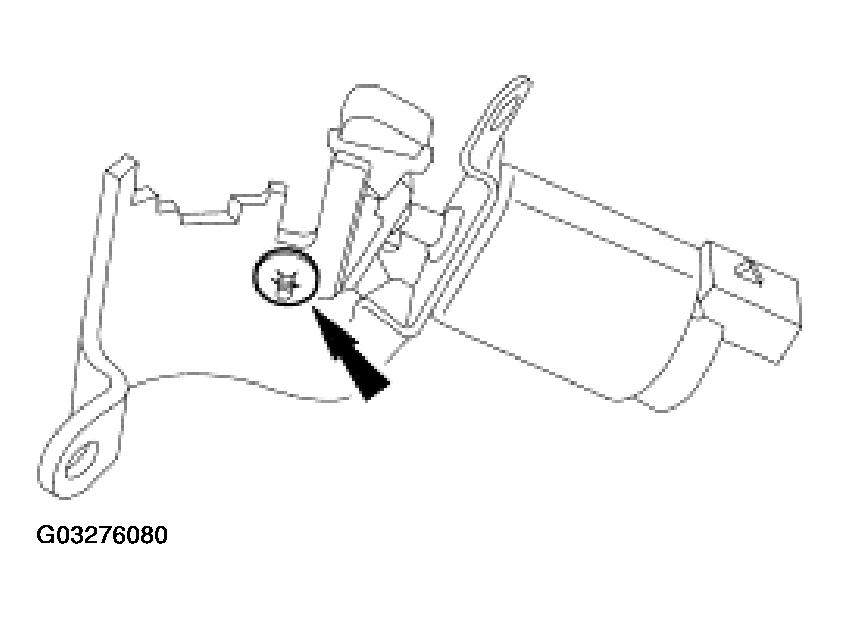

  Fig 2: Removing Insert Plate From Shift Lock Actuator
  Courtesy of FORD MOTOR CO.
