Tubes - 2.5L: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Position the fluid cooler inlet tube and the fluid cooler tube. Install the transmission fluid cooler line clip on the engine.

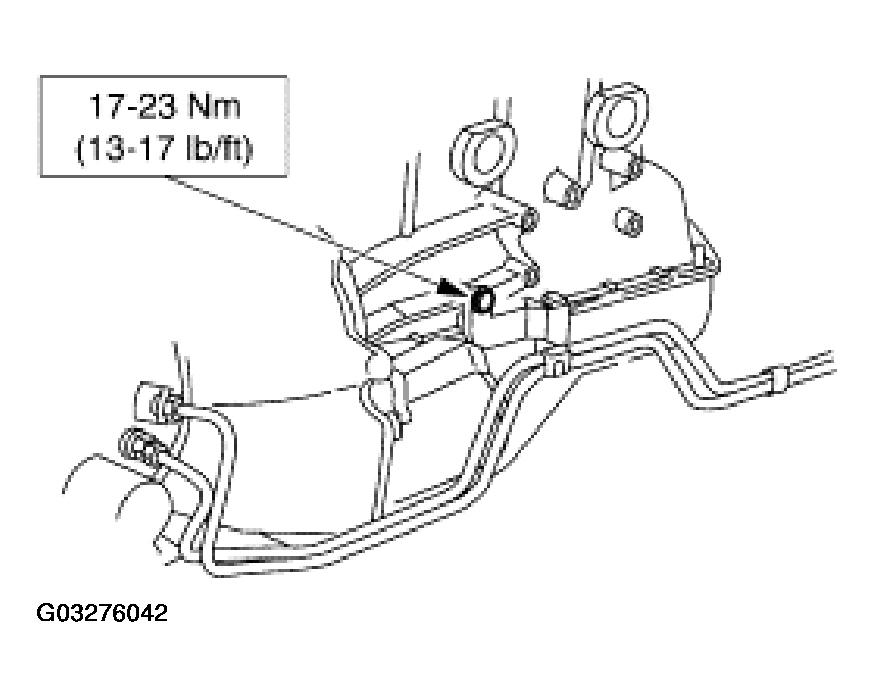

Fig 1: Installing Transmission Fluid Cooler Line Clip On Engine
Courtesy of FORD MOTOR CO.
Connect the fluid cooler inlet tube and the fluid cooler tube to the transmission.

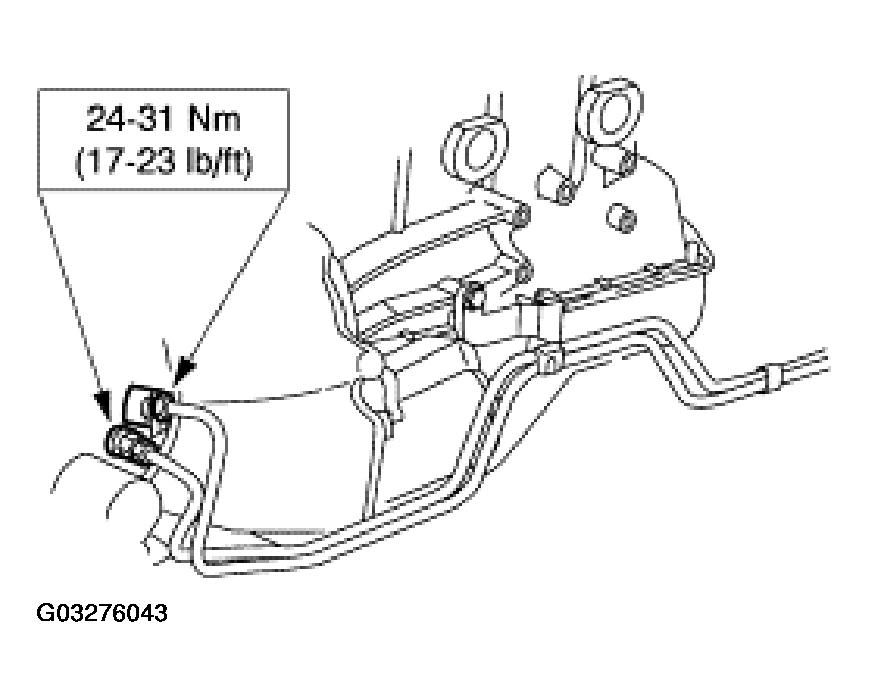

Fig 2: Connecting Fluid Cooler Inlet Tube And Fluid Cooler Tube To Transmission
Courtesy of FORD MOTOR CO.
Connect the fluid cooler inlet tube and the fluid cooler tube to the radiator.

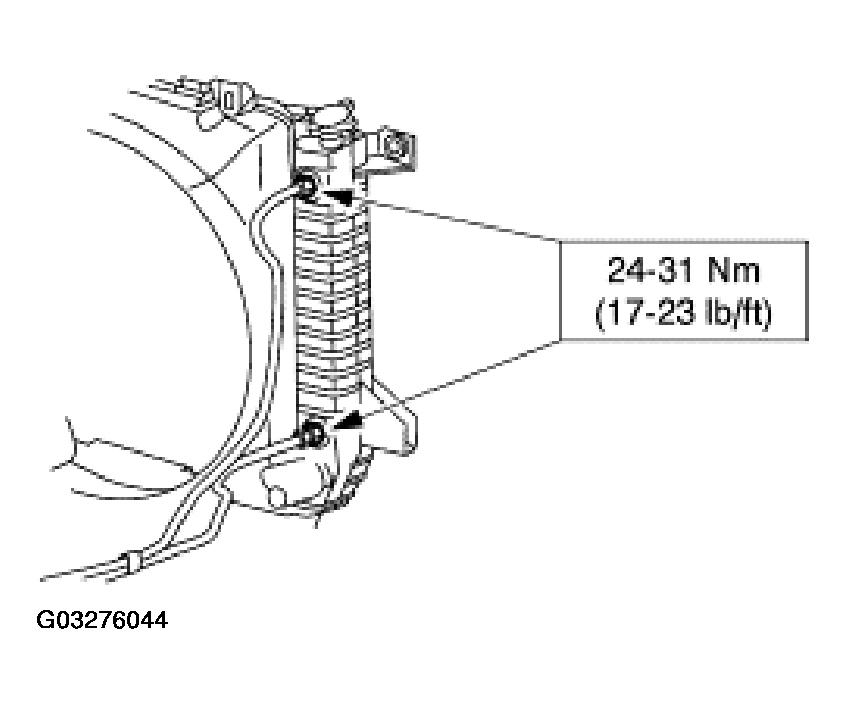

Fig 3: Connecting Fluid Cooler Inlet Tube And Fluid Cooler Tube To Radiator
Courtesy of FORD MOTOR CO.
