Transmission cooling components-4.0L

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

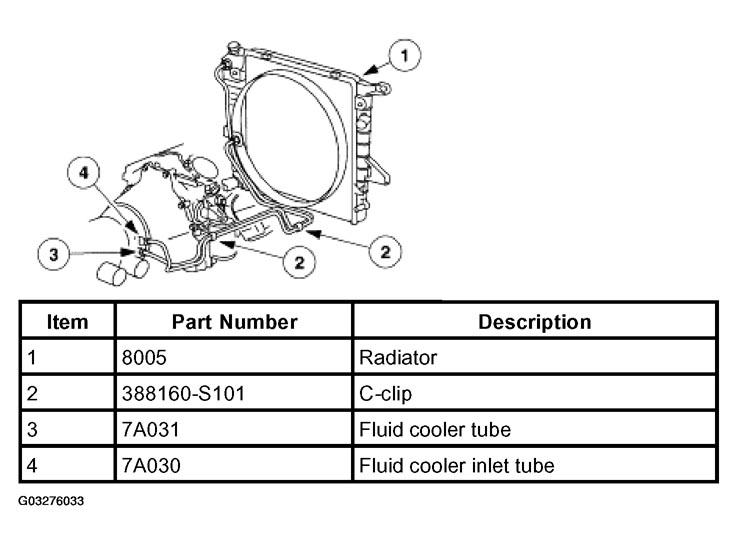

Fig 1: Identifying Transmission Cooling Components-4.0L
G03276033Courtesy of FORD MOTOR CO.
