Transmission Insulator and Retainer: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Install the transmission mount.
1. Position the transmission mount on the extension housing.
2. Install the transmission mount-to-extension housing screws.

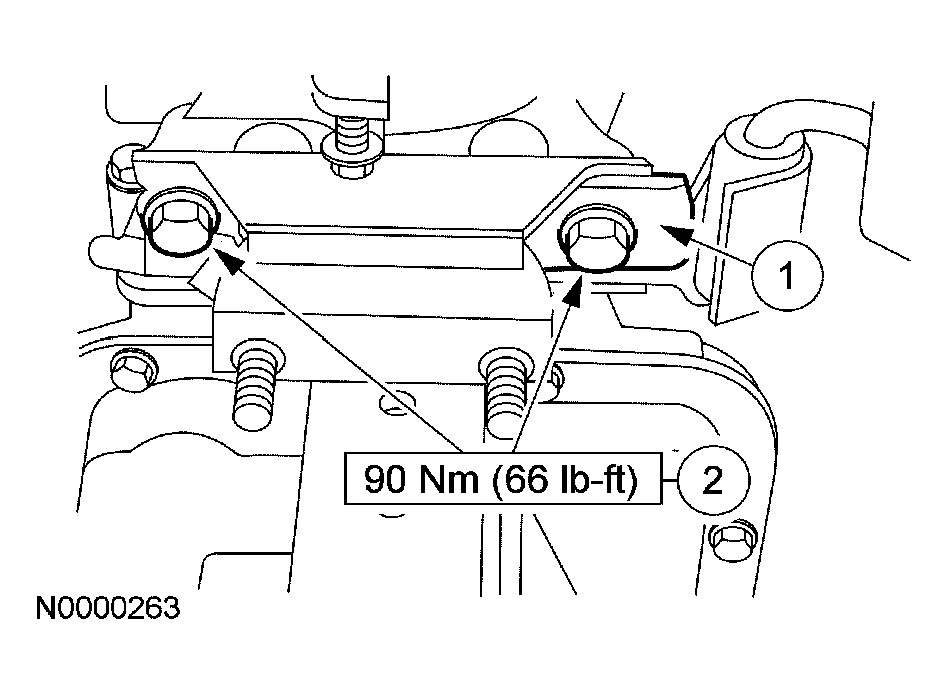

  Fig 1: Installing Transmission Mount
  Courtesy of FORD MOTOR CO.
Install the transmission mount into the crossmember and tighten the nuts.

Fig 2: Installing Transmission Mount Into Crossmember
Courtesy of FORD MOTOR CO.

NOTE: Align the driveshaft with the marks made during removal to make sure of correct balance.

Fig 3: Identifying Driveshaft Flange-To-Pinion Flange Alignment Marks

Courtesy of FORD MOTOR CO.

Align and install the rear driveshaft.
Install the bolts.

Fig 4: Installing Rear Driveshaft Bolts
Courtesy of FORD MOTOR CO.
