Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. If equipped, remove the transmission servo heat shield.
    1. Remove the transmission servo heat shield nut.
    2. Remove the transmission servo heat shield.

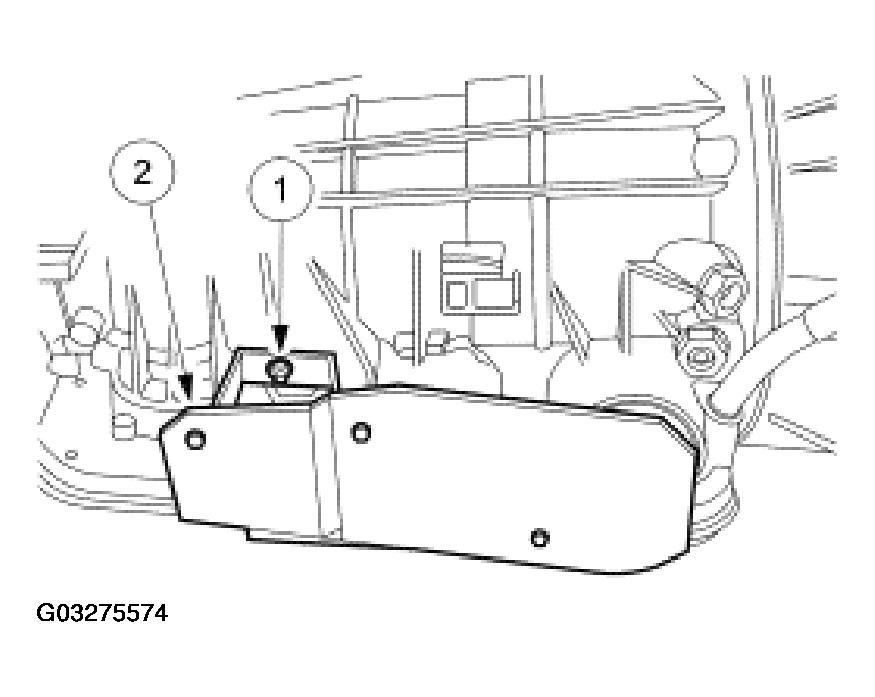

      Fig 1: Removing Transmission Servo Heat Shield
      G03275574Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.

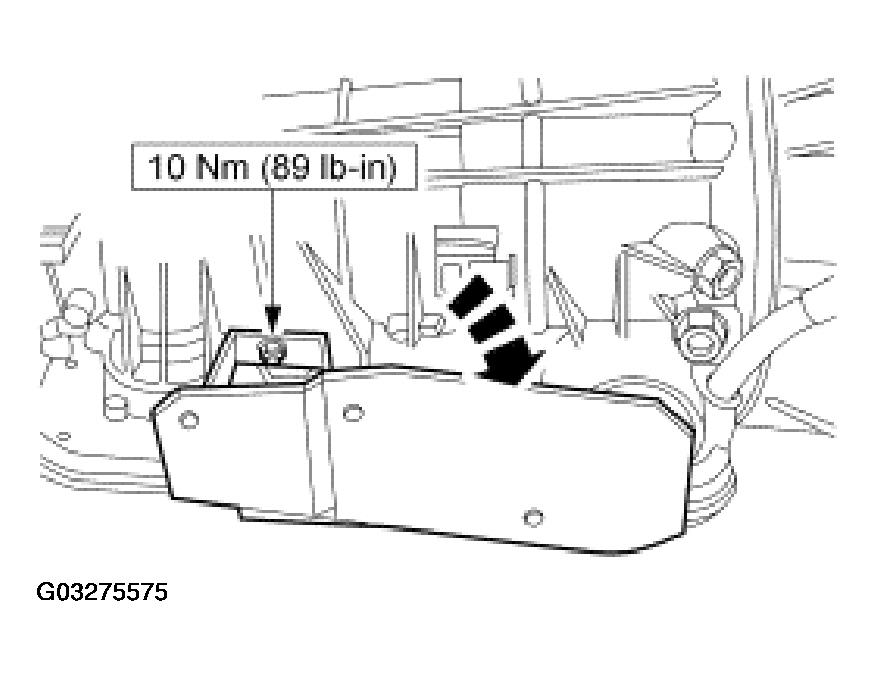

    Fig 2: Installing Transmission Servo Heat Shield
    G03275575Courtesy of FORD MOTOR CO.
