Extension Housing Seal: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .

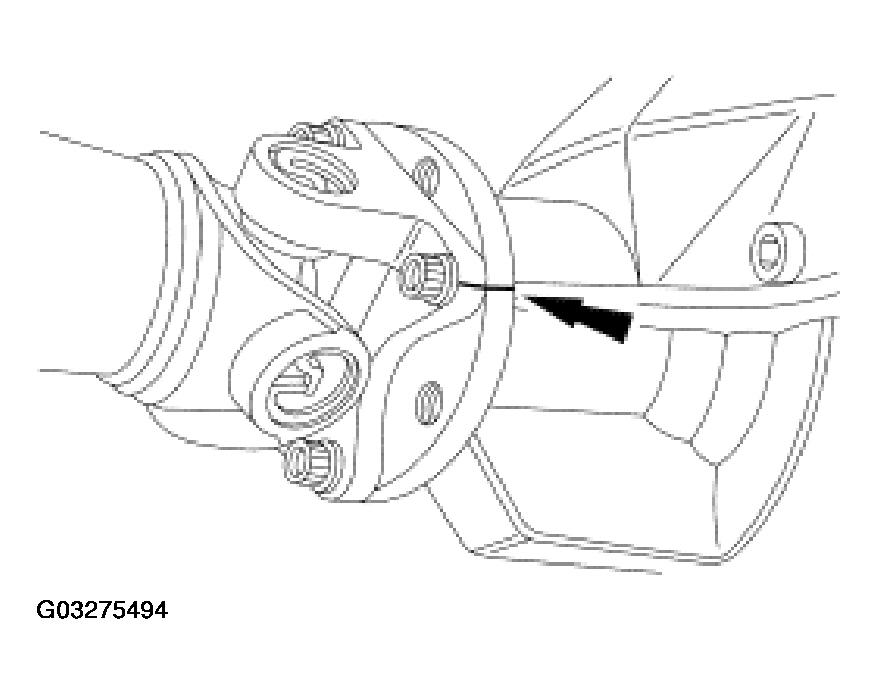

NOTE: To maintain initial driveshaft balance, mark the rear driveshaft yoke and axle flange so they may be installed in their original alignment.

Fig 1: Index Marking Rear Driveshaft

Courtesy of FORD MOTOR CO.

Mark the rear driveshaft.

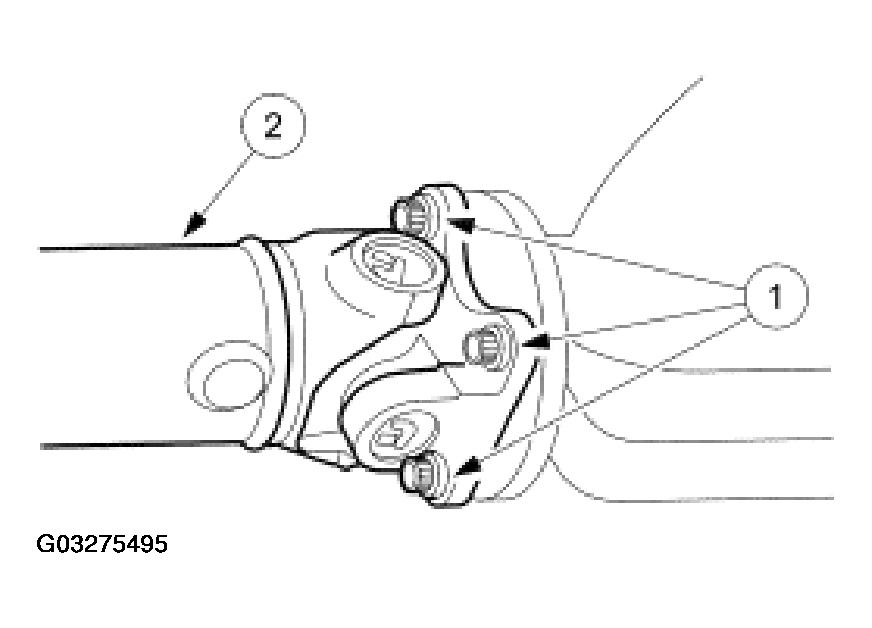

Remove the rear driveshaft.
1. Remove the rear driveshaft bolts.
2. Remove the rear driveshaft.

  Fig 2: Removing Rear Driveshaft
  Courtesy of FORD MOTOR CO.

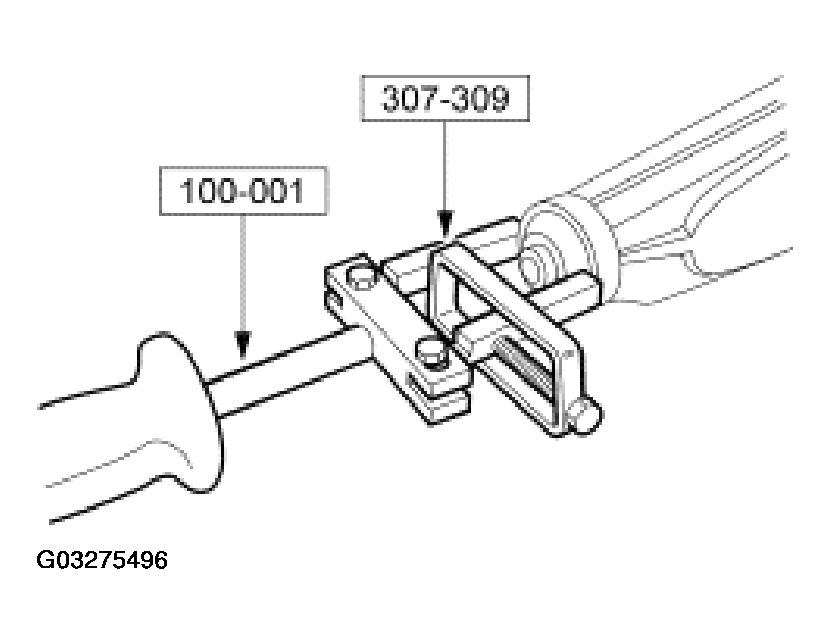

Using the special tools, remove the extension housing seal.

Fig 3: Using Special Tools, Removing Extension Housing Seal
Courtesy of FORD MOTOR CO.
