Extension Housing Seal: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Position new extension housing seal with drain hole in the 6 o'clock position.

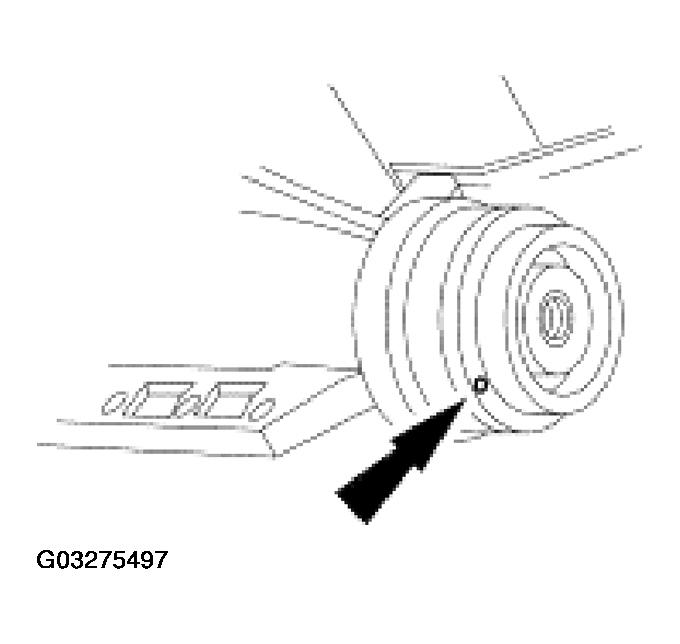

Fig 1: Positioning Extension Housing Seal
Courtesy of FORD MOTOR CO.
Using the special tool, install the extension housing seal.

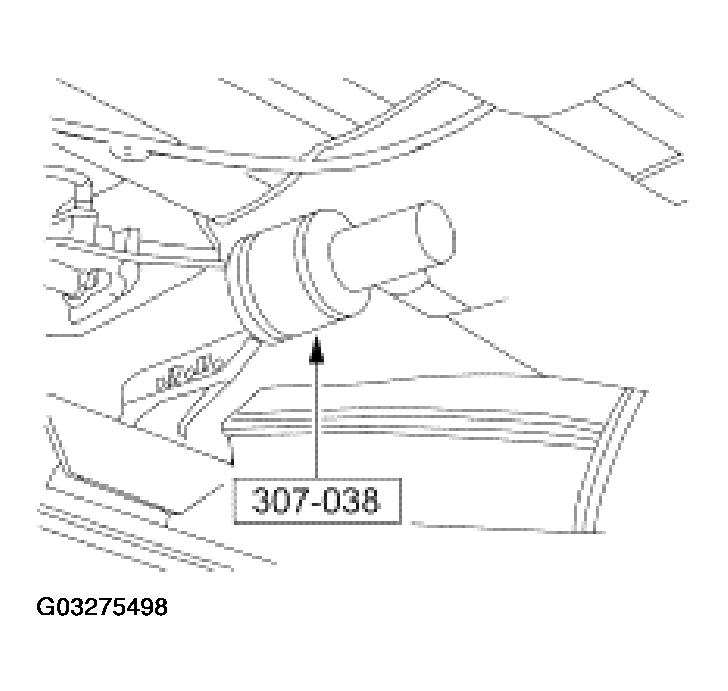

Fig 2: Installing Extension Housing Seal
Courtesy of FORD MOTOR CO.

NOTE: Inspect the driveshaft slip-yoke for wear and damage. Install a new component if required.

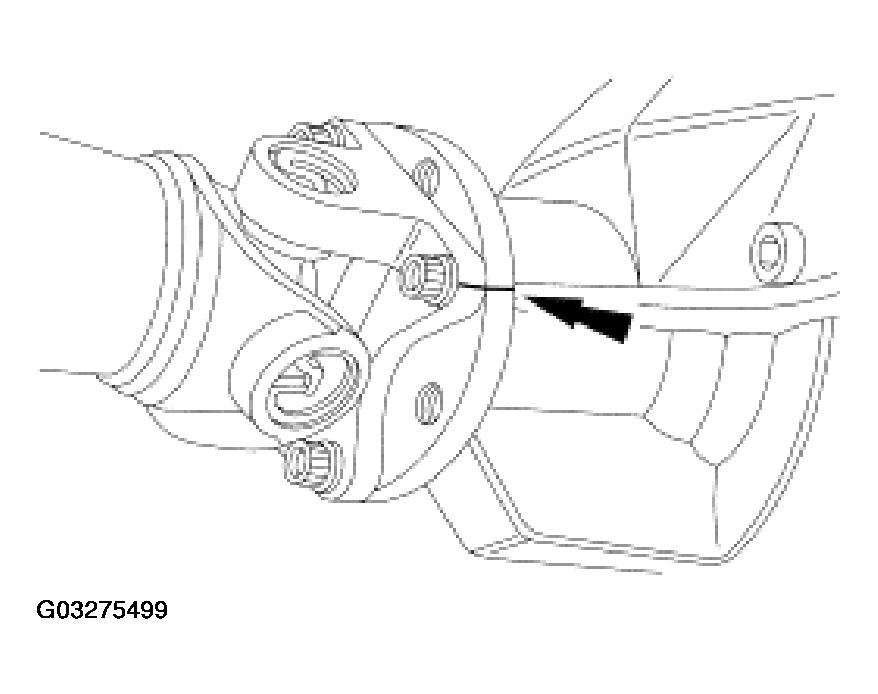

Fig 3: Aligning Driveshaft Index Marks

Courtesy of FORD MOTOR CO.

Align the driveshaft with the marks made during removal to ensure correct balance.
Install the rear driveshaft bolts.

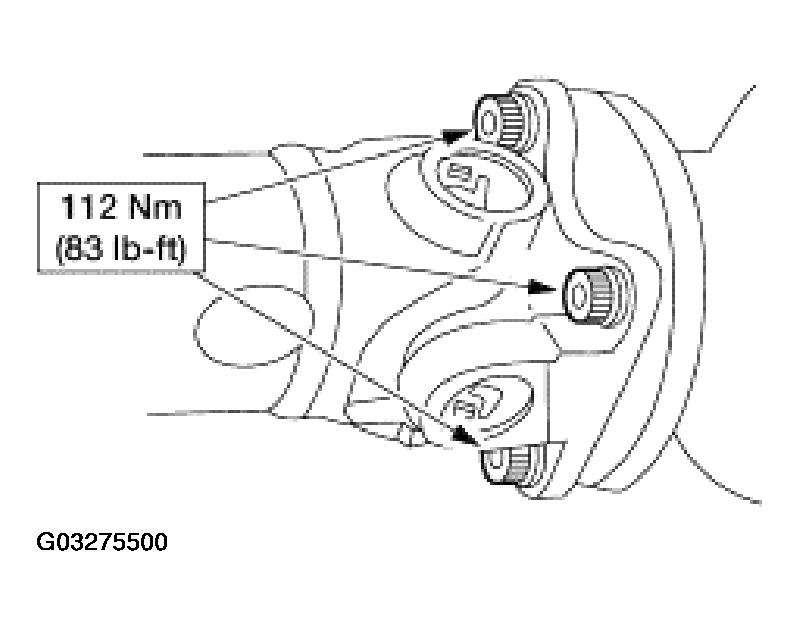

Fig 4: Installing Rear Driveshaft Bolts
Courtesy of FORD MOTOR CO.
Fill the transmission to the correct fluid level with clean automatic transmission fluid and check for correct transmission operation.
