Extension Housing Seal and Bushing: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .

NOTE: To maintain initial driveshaft balance, mark the rear driveshaft yoke and axle flange so they can be installed in their original alignment.

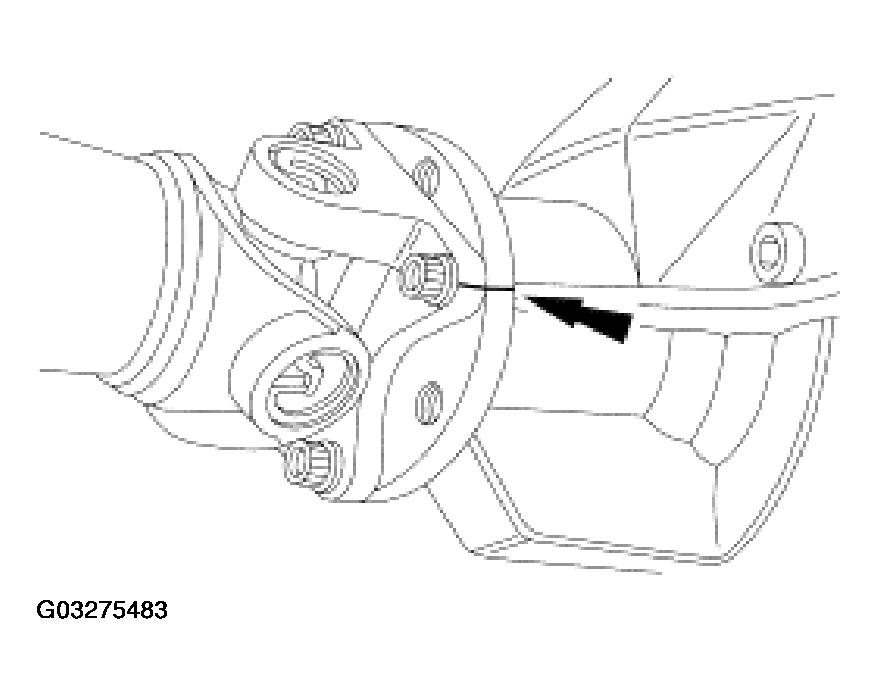

Fig 1: Index Marking Rear Driveshaft

Courtesy of FORD MOTOR CO.

Mark the rear driveshaft.
Remove the rear driveshaft.
1. Remove the rear driveshaft bolts.
2. Remove the rear driveshaft.

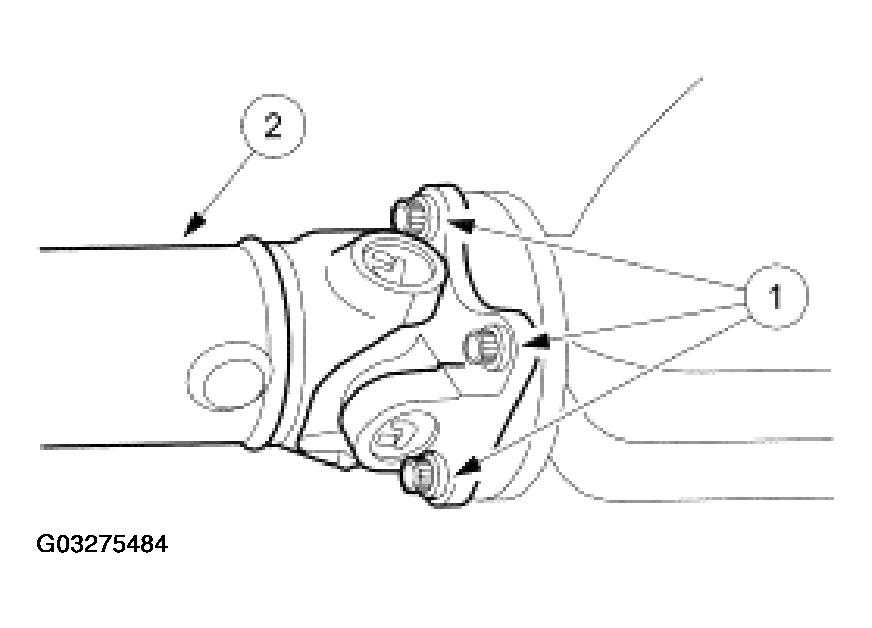

  Fig 2: Removing Rear Driveshaft
  Courtesy of FORD MOTOR CO.
Using the special tools, remove the extension housing seal.

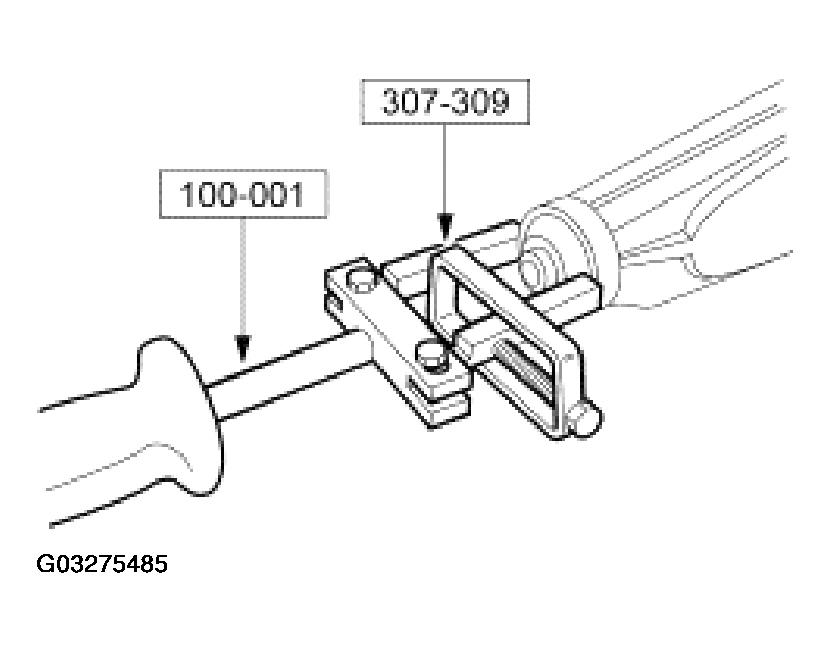

Fig 3: Removing Extension Housing Seal
Courtesy of FORD MOTOR CO.

CAUTION: Use the extension housing bushing remover carefully so that the seal area is not damaged.

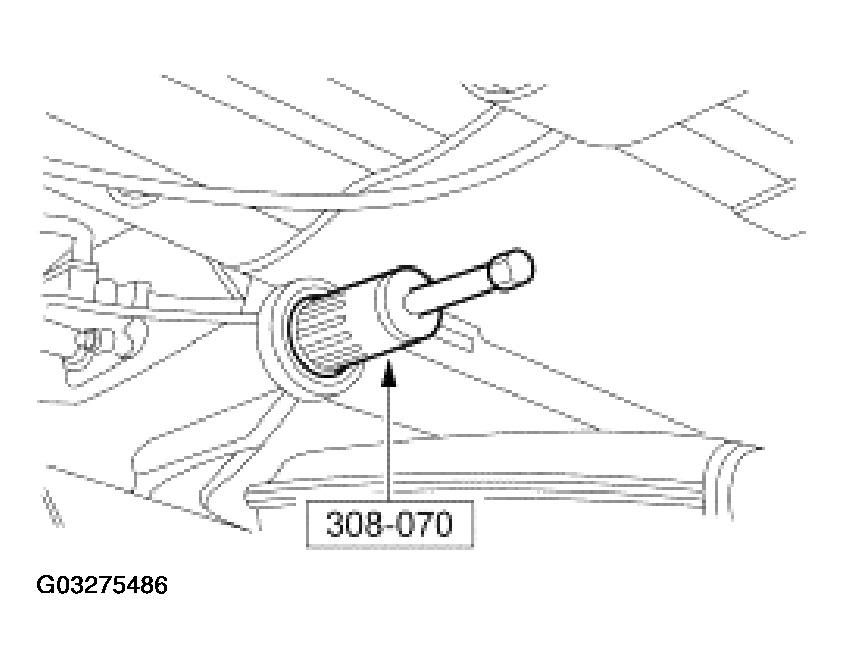

Fig 4: Removing Extension Housing Bushing

Courtesy of FORD MOTOR CO.

Using the special tool, remove the extension housing bushing.
