Extension Housing Gasket - 4x2: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .

NOTE: To maintain initial driveshaft balance, mark the rear driveshaft yoke and axle flange so they can be installed in their original alignment.

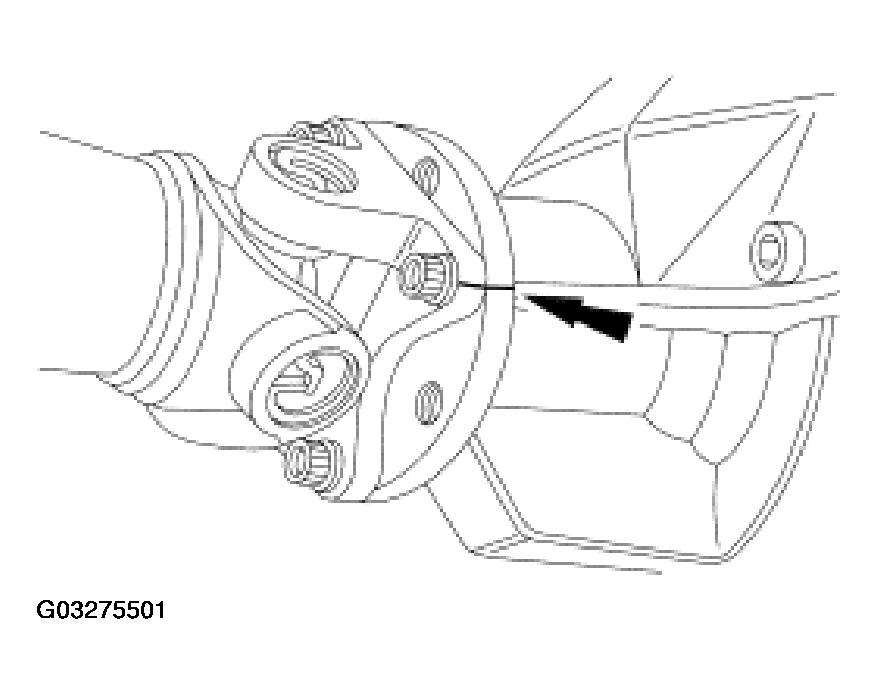

Fig 1: Index Marking Rear Driveshaft

Courtesy of FORD MOTOR CO.

Mark the rear driveshaft.
Remove the rear driveshaft.
1. Remove the bolts.
2. Remove the rear driveshaft.

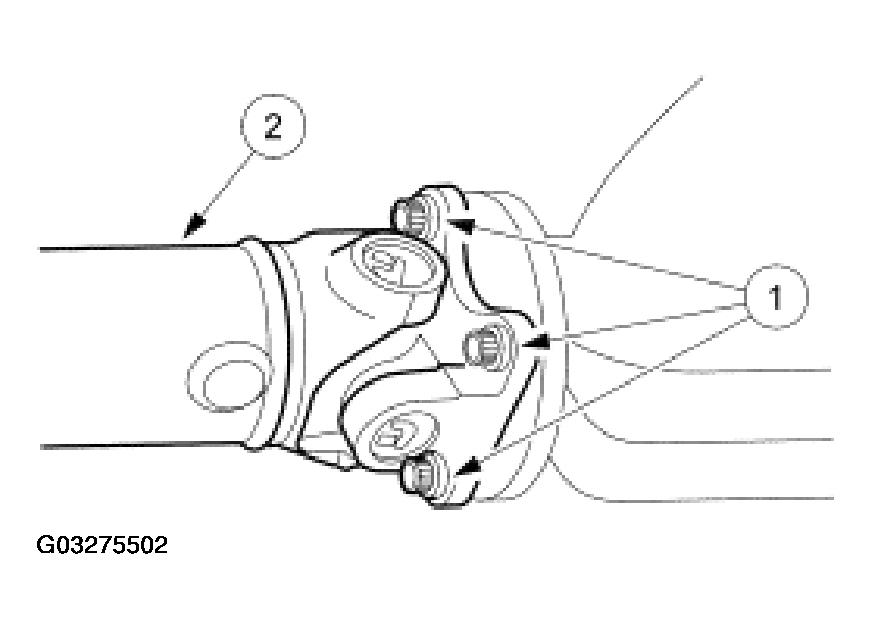

  Fig 2: Removing Rear Driveshaft
  Courtesy of FORD MOTOR CO.
Remove the nuts.

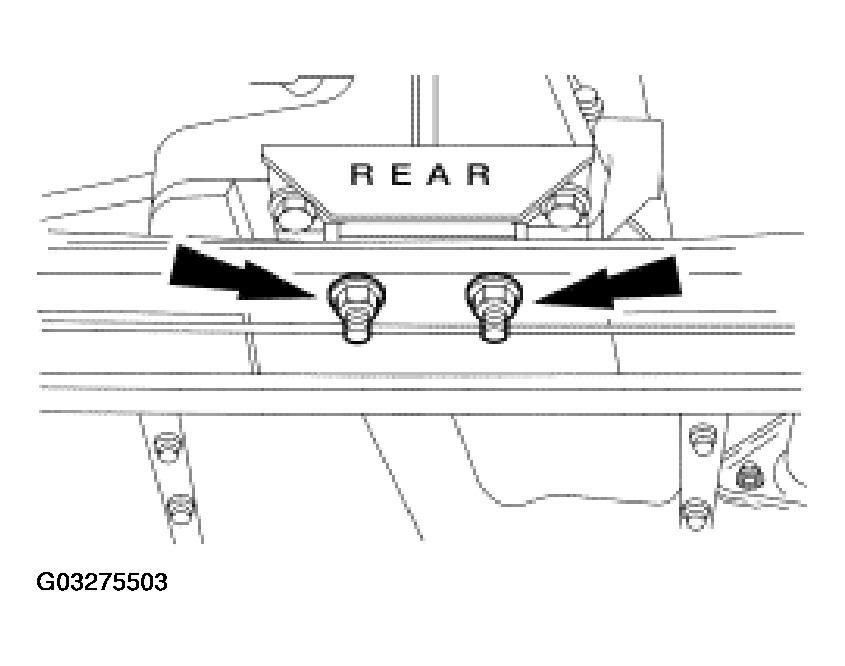

Fig 3: Removing Transmission Mount Nuts
Courtesy of FORD MOTOR CO.
Raise and support the transmission.

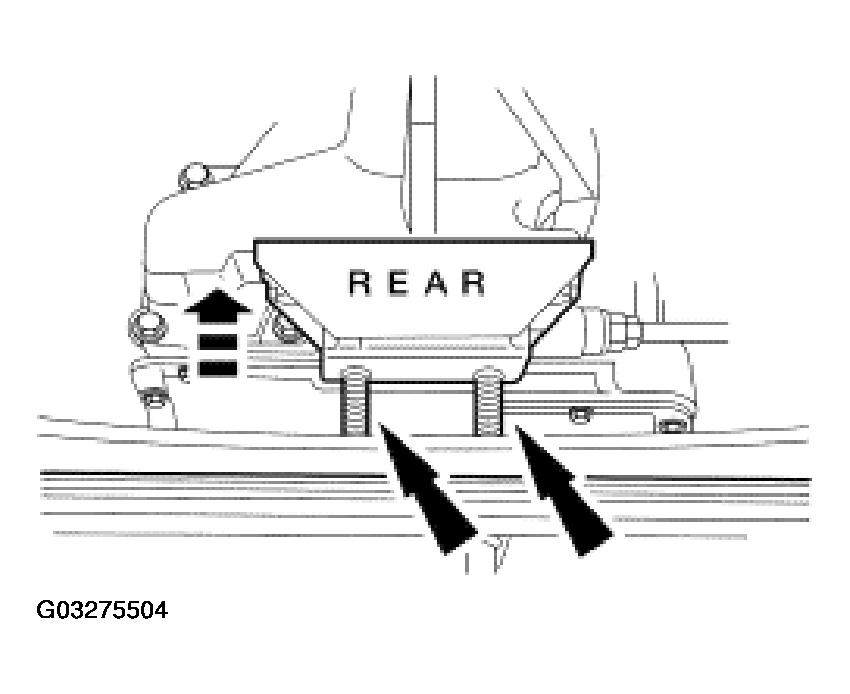

Fig 4: Raising And Supporting Transmission
Courtesy of FORD MOTOR CO.
Remove the transmission mount.
1. Remove the screws.
2. Remove the transmission mount.

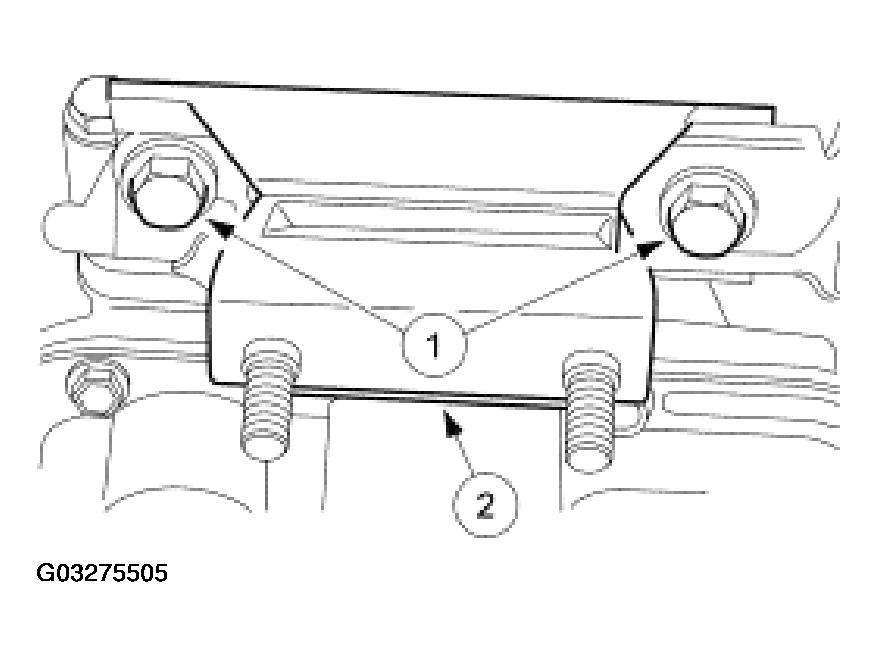

  Fig 5: Removing Transmission Mount
  Courtesy of FORD MOTOR CO.
Remove the extension housing screws and studs.

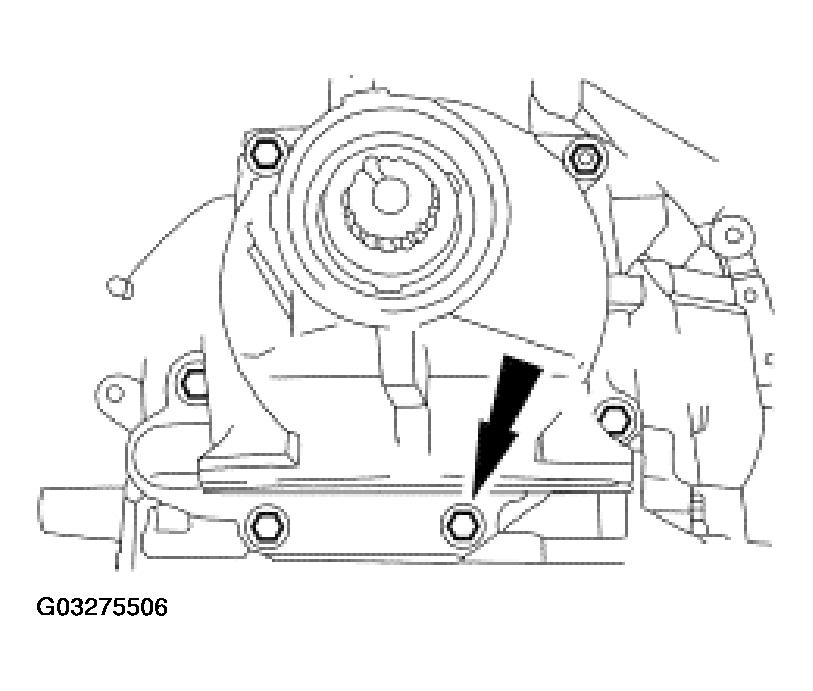

Fig 6: Removing Extension Housing Screws And Studs
Courtesy of FORD MOTOR CO.

CAUTION: The parking pawl, parking pawl return spring and parking pawl shaft could fall out during removal of the extension housing.

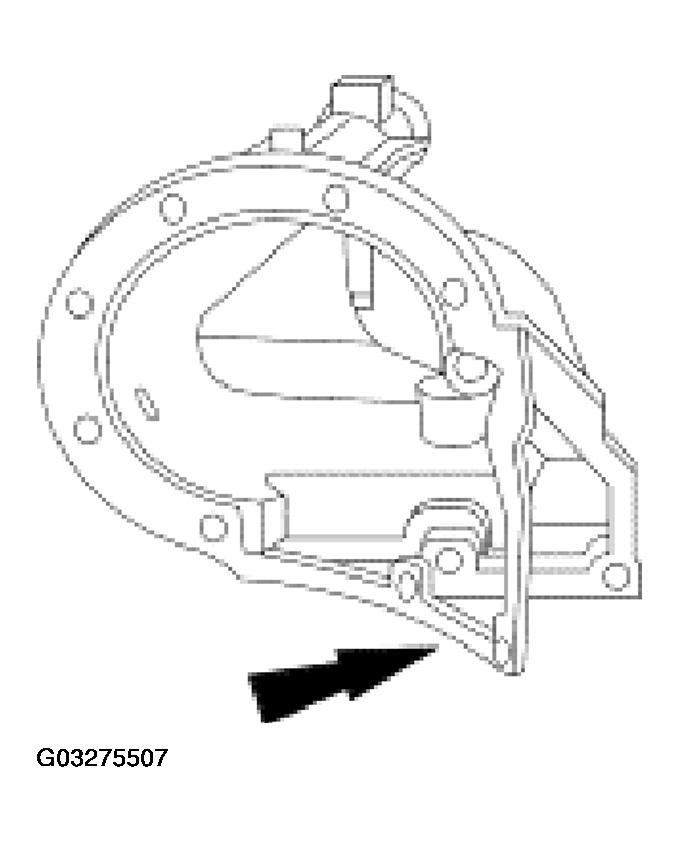

Fig 7: Removing Extension Housing

Courtesy of FORD MOTOR CO.

Remove the extension housing. Discard the extension housing gasket.
