Extension Housing Gasket - 4x2: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Clean the extension housing and install new extension housing gasket. Make sure that the parking pawl, spring and shaft are correctly installed.

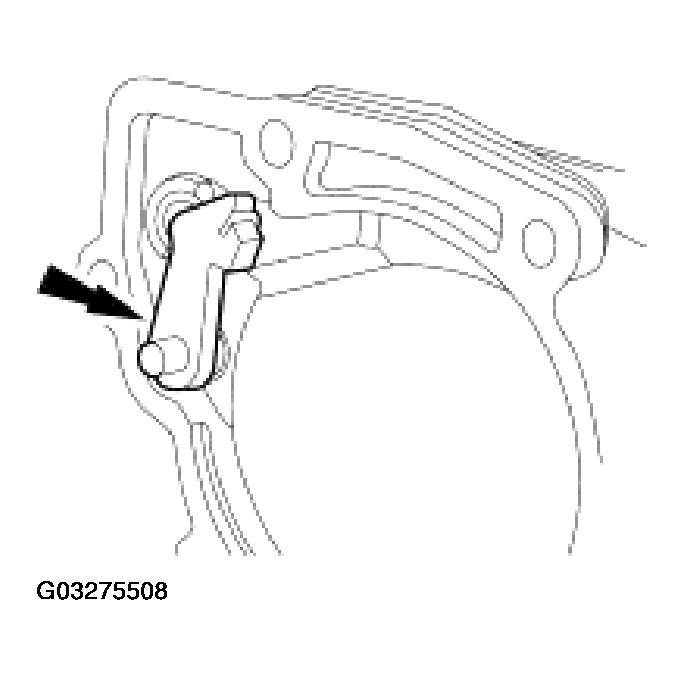

Fig 1: Identifying Parking Pawl
Courtesy of FORD MOTOR CO.

CAUTION: Make sure the parking lever actuating rod is correctly seated into the case parking rod guide cup.

Install the extension housing.
1. Position the extension housing.
2. Install the extension housing screws.
3. Install the extension housing studs.

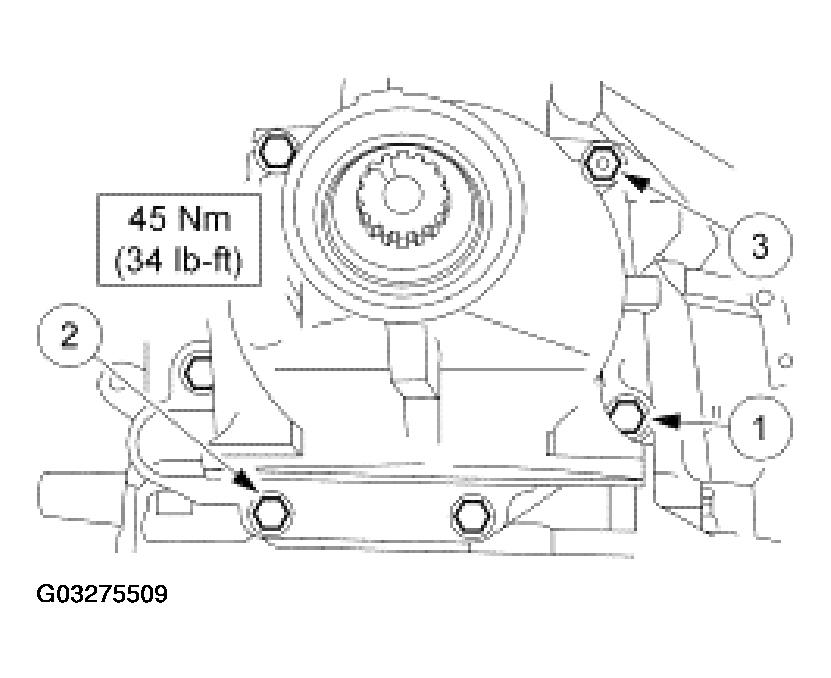

  Fig 2: Installing Extension Housing
  Courtesy of FORD MOTOR CO.
Install the transmission mount.
1. Position the transmission mount on the extension housing.
2. Install the transmission mount-to-extension housing screws.

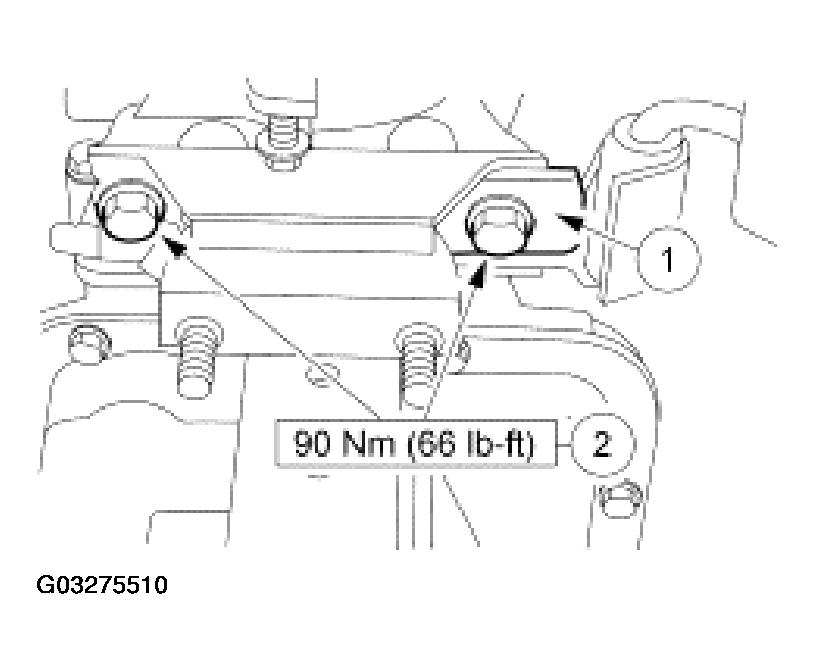

  Fig 3: Installing Transmission Mount
  Courtesy of FORD MOTOR CO.
Install the transmission mount into the crossmember and tighten the transmission mount nuts.

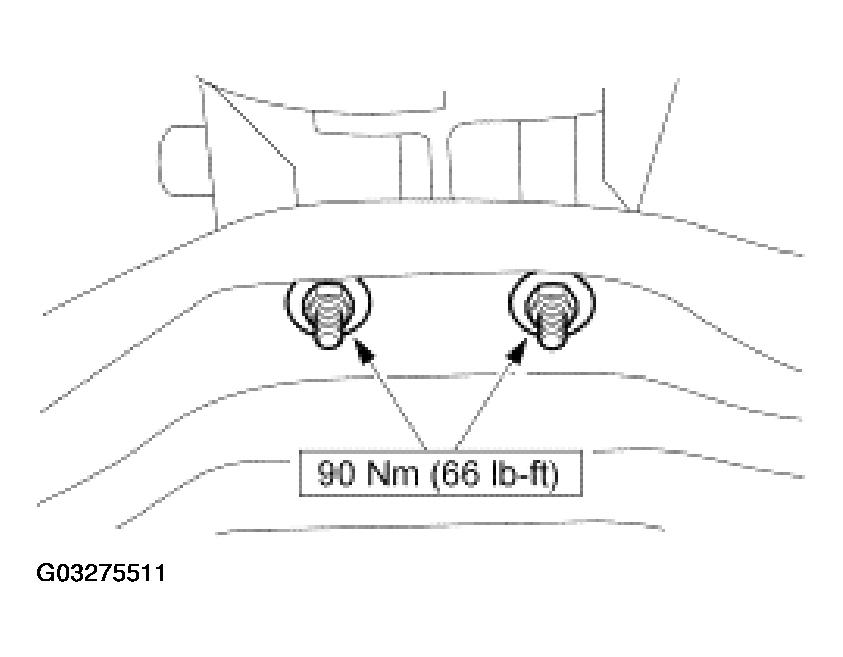

Fig 4: Installing Transmission Mount Into Crossmember
Courtesy of FORD MOTOR CO.

NOTE: Align the driveshaft with the marks made during removal to make sure of correct balance.

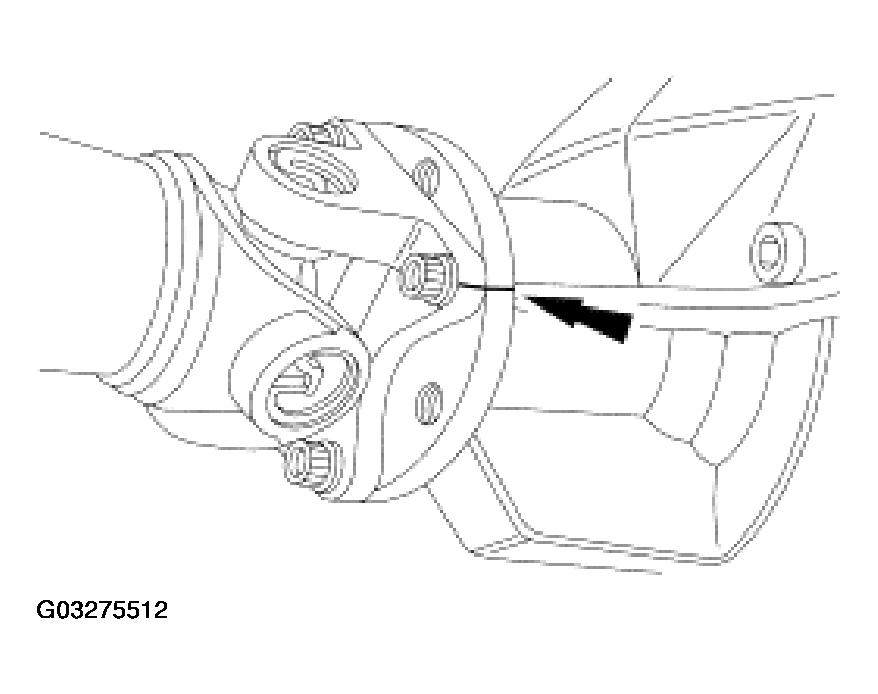

Fig 5: Aligning And Installing Rear Driveshaft

Courtesy of FORD MOTOR CO.

Align and install the rear driveshaft.
Install the bolts.

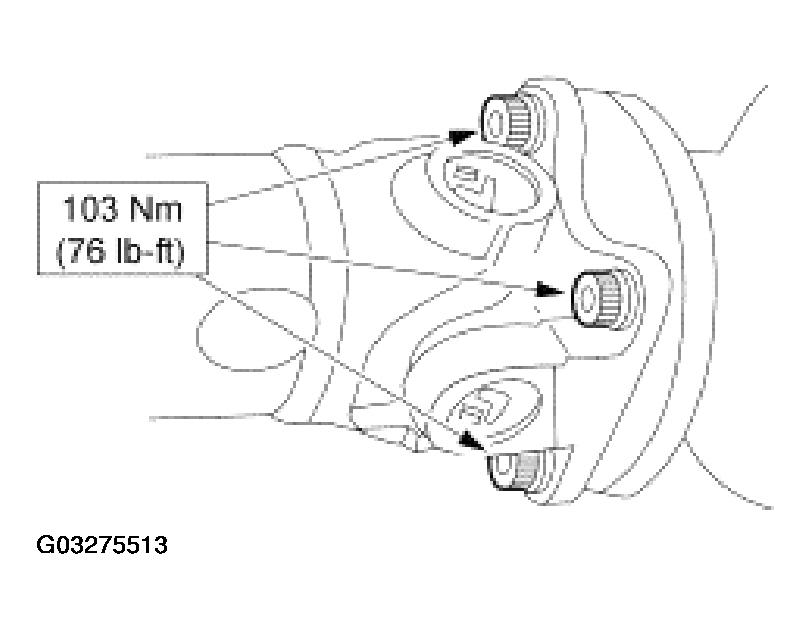

Fig 6: Installing Rear Driveshaft Bolts
Courtesy of FORD MOTOR CO.
Fill the transmission with clean automatic transmission fluid to the correct level and check for correct transmission operation.
