Digital Transmission Range (TR) Sensor: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Disconnect the shift cable from the manual control lever.

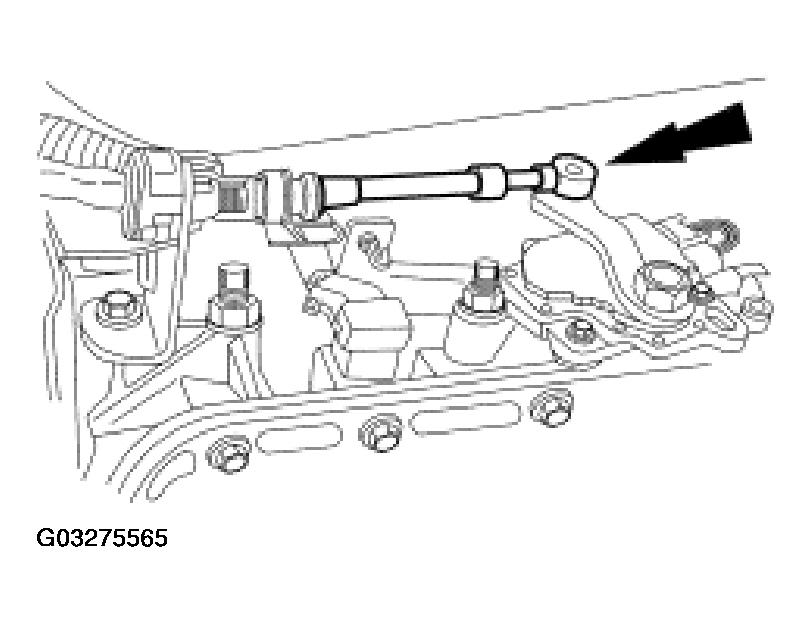

    Fig 1: Disconnecting Shift Cable From Manual Control Lever
    G03275565Courtesy of FORD MOTOR CO.
  3. Disconnect the digital transmission range (TR) sensor electrical connector.

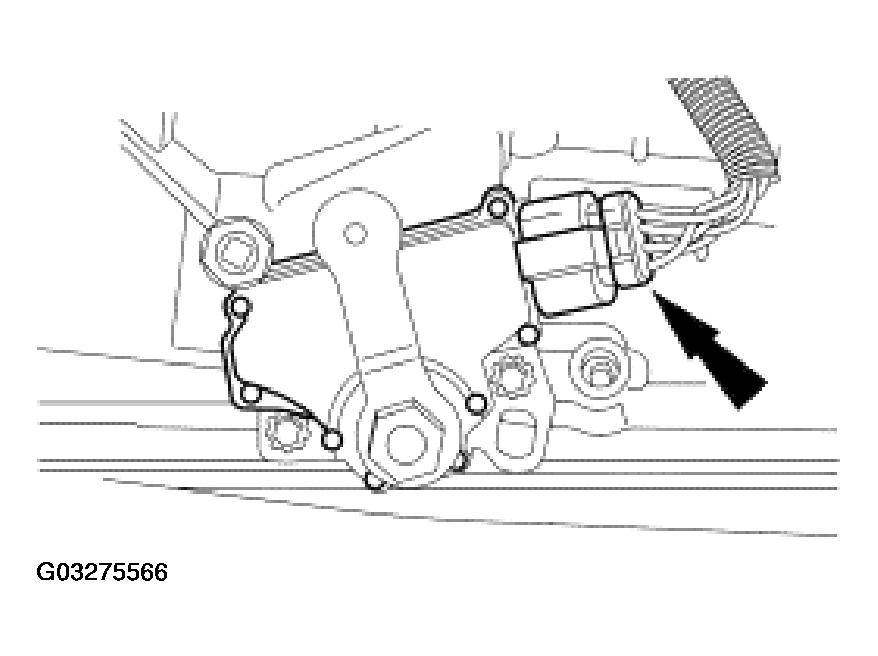

    Fig 2: Disconnecting Digital Transmission Range (TR) Sensor Electrical Connector
    G03275566Courtesy of FORD MOTOR CO.
  4. Remove the manual control outer lever nut and manual control outer lever.

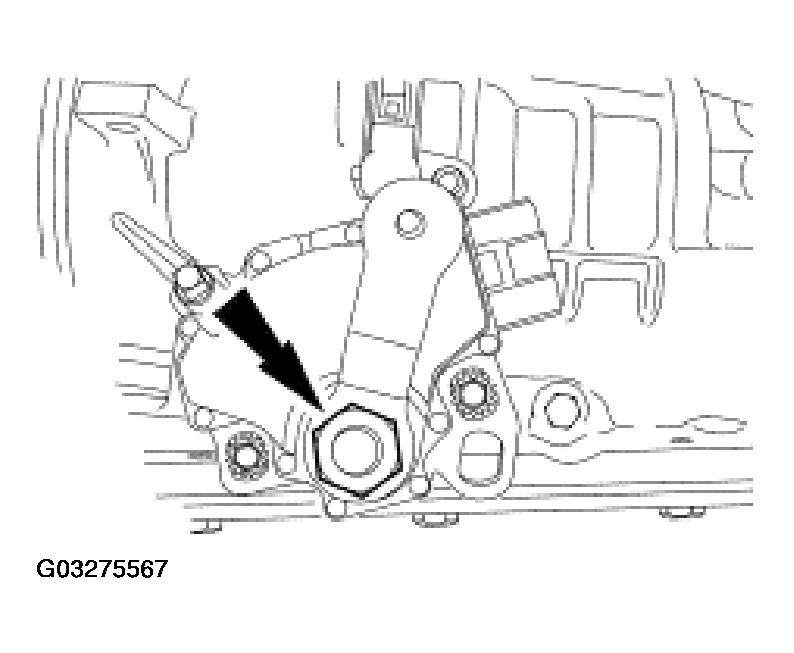

    Fig 3: Removing Manual Control Outer Lever Nut And Manual Control Outer Lever
    G03275567Courtesy of FORD MOTOR CO.
  5. Remove the screws and the digital TR sensor.

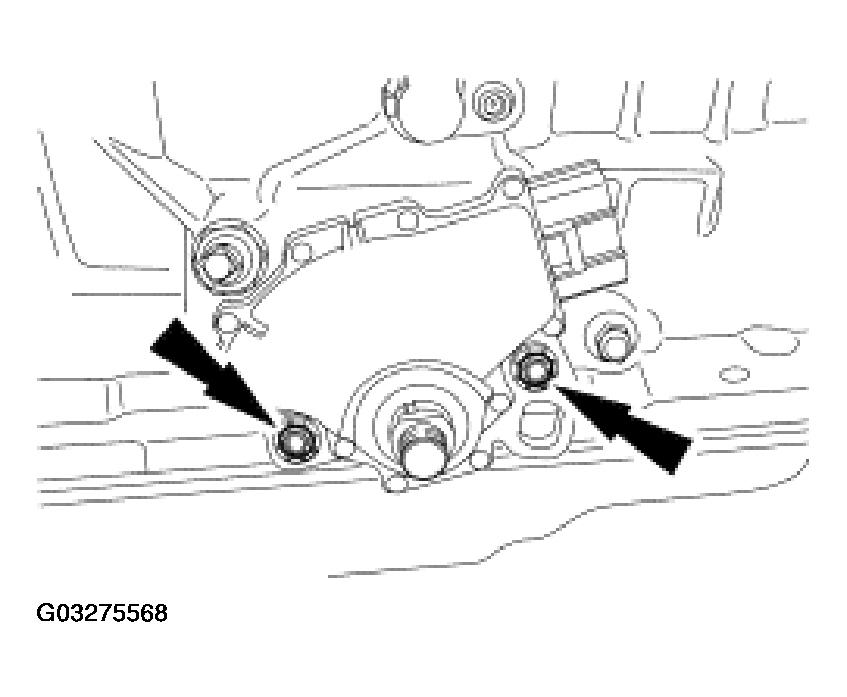

    Fig 4: Removing Digital TR Sensor
    G03275568Courtesy of FORD MOTOR CO.
