Reverse Brake Drum: Assembly

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

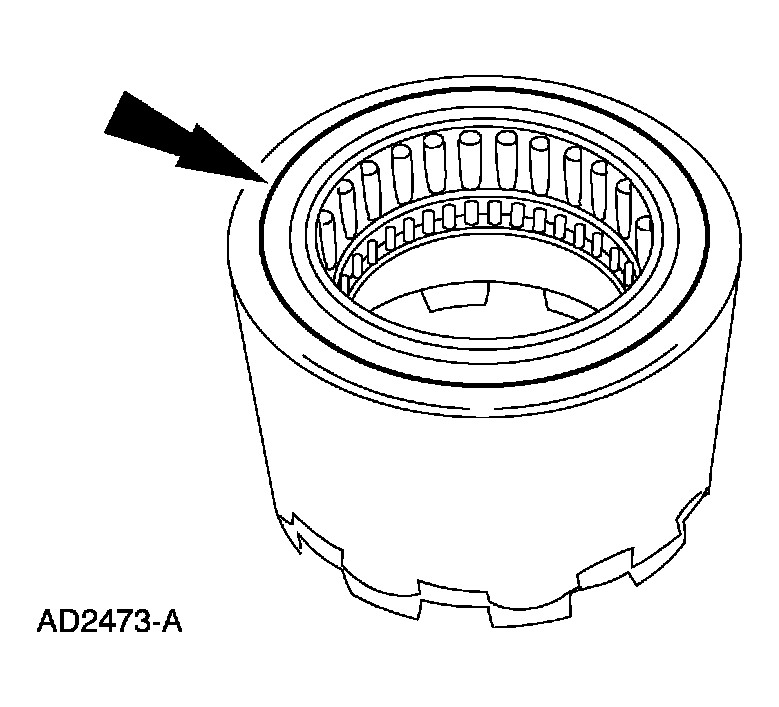

Install the roller bearing with the lip facing up toward the low reverse one-way clutch.

Fig 1: Installing Roller Bearing
Courtesy of FORD MOTOR CO.
Install the special tool.

Fig 2: Installing Special Tool
Courtesy of FORD MOTOR CO.
Install the low reverse one-way clutch with the tabs facing down toward the roller bearing.

Fig 3: Installing Low Reverse One-Way Clutch
Courtesy of FORD MOTOR CO.
Using the special tools, install the one-way clutch by pressing down on the tool to seat the bearing.

Fig 4: Installing One-Way Clutch
Courtesy of FORD MOTOR CO.
Inspect the reverse clutch drum to see if the low reverse one-way clutch is seated correctly.

Fig 5: Inspecting Reverse Clutch Drum & Ensuring Reverse One-Way Clutch Is Properly Seated
Courtesy of FORD MOTOR CO.
