Output Shaft Ring Gear and Hub Shaft Assembly: Disassembly

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

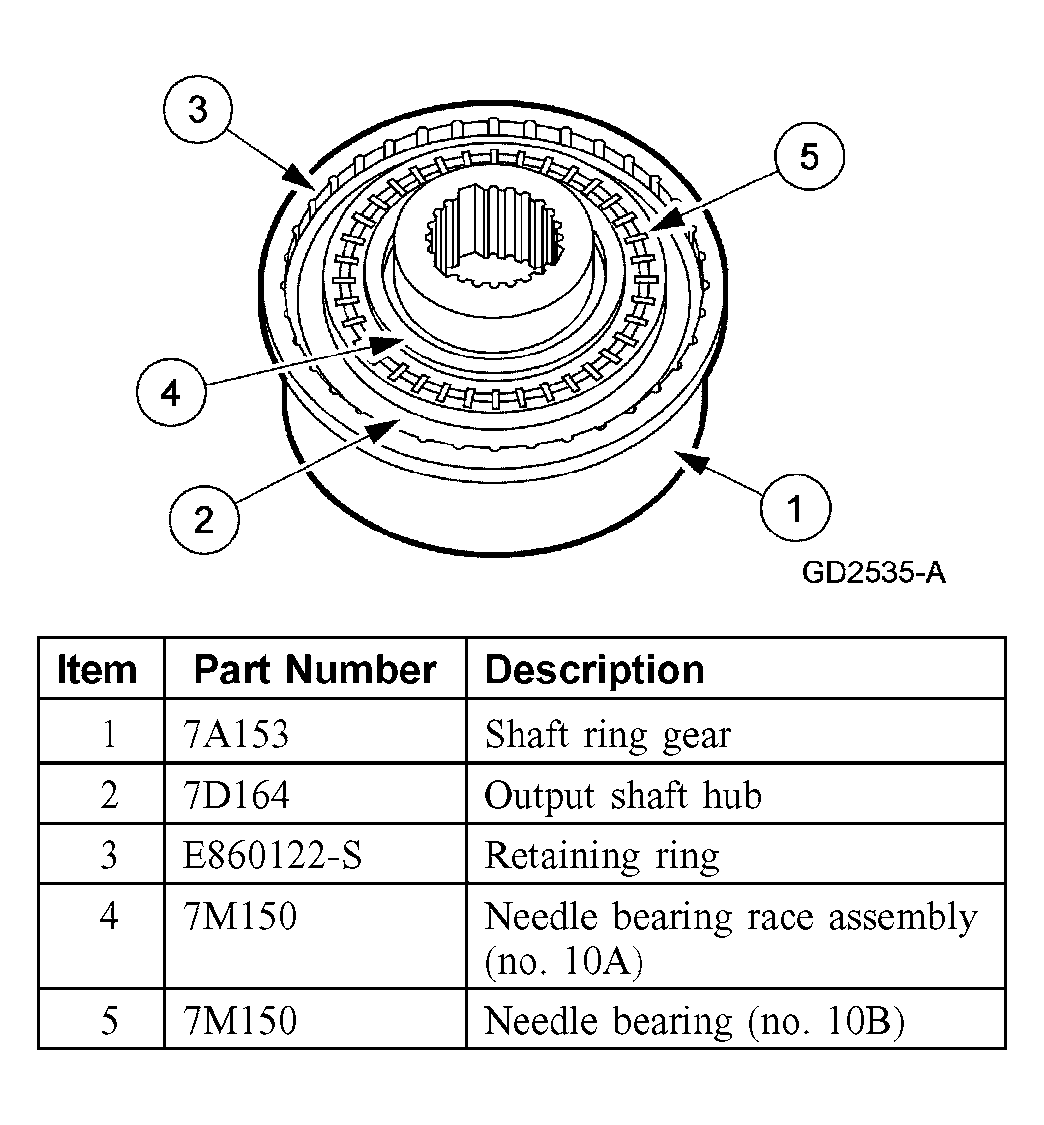

Fig 1: Exploded View Of Output Shaft Ring Gear And Hub Shaft Assembly
G03975419Courtesy of FORD MOTOR CO.
  1. Inspect the output shaft ring gear, output shaft hub, needle bearing (10B) and needle bearing race (10A) assembly for damage. If service is required use the following procedure.
  2. Remove the No. 10B needle bearing.

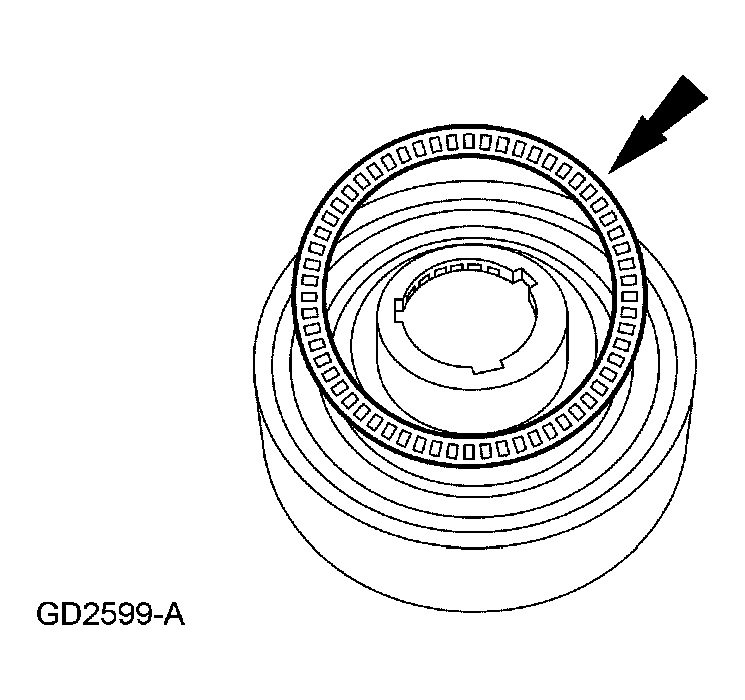

    Fig 2: Removing No. 10B Needle Bearing
    G03975420Courtesy of FORD MOTOR CO.
  3. Remove the No. 10A needle bearing race assembly.
    Fig 3: Removing No. 10A Needle Bearing Race Assembly
    G03975421Courtesy of FORD MOTOR CO.
  4. Remove the output shaft hub from the output shaft ring gear.
    1. Remove the retaining ring.
    2. Remove the output shaft hub.
      Fig 4: Removing Output Shaft Hub From Output Shaft Ring Gear
      G03975422Courtesy of FORD MOTOR CO.
