Output Shaft Ring Gear and Hub Shaft Assembly: Assembly

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Install the output shaft hub onto the output shaft ring gear.
1. Install the output shaft hub.
2. Install the retaining ring.

  Fig 1: Installing Output Shaft Hub Onto The Output Shaft Ring Gear
  Courtesy of FORD MOTOR CO.
Install the No. 10A needle bearing race assembly.
- Snap the needle bearing race assembly onto the output shaft hub.

  Fig 2: Installing No. 10A Needle Bearing Race Assembly
  Courtesy of FORD MOTOR CO.

NOTE: Use petroleum jelly to hold the needle bearing to the output shaft ring gear and output shaft hub.

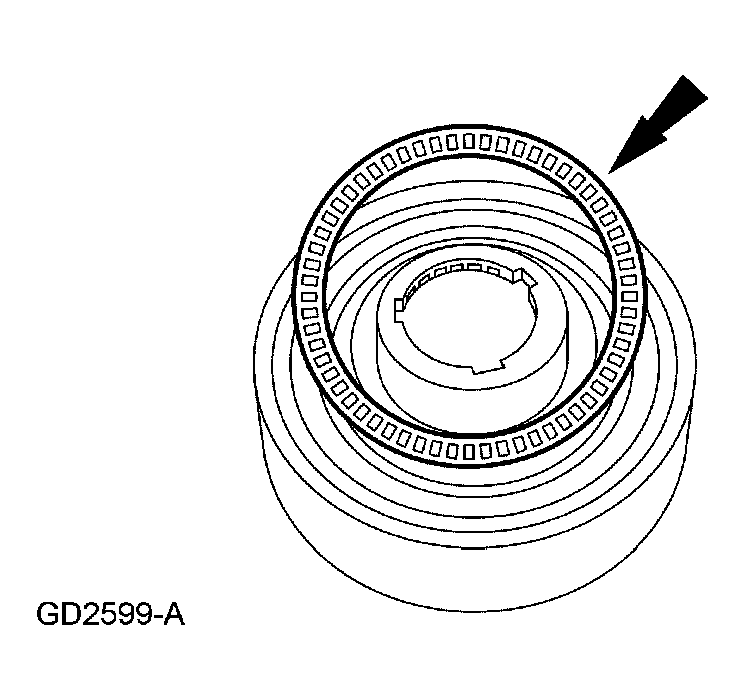

Fig 3: Installing No. 10B Needle Bearing Onto Output Shaft Ring Gear And Output Shaft Hub

Courtesy of FORD MOTOR CO.

Install the No. 10B needle bearing onto output shaft ring gear and output shaft hub.
