Intermediate Brake and Direct Clutch Drum Assembly: Material
WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL ITEM SPECIFICATION
Item
Specification
MERCON® V Automatic Transmission Fluid XT-5-QM
MERCON® V

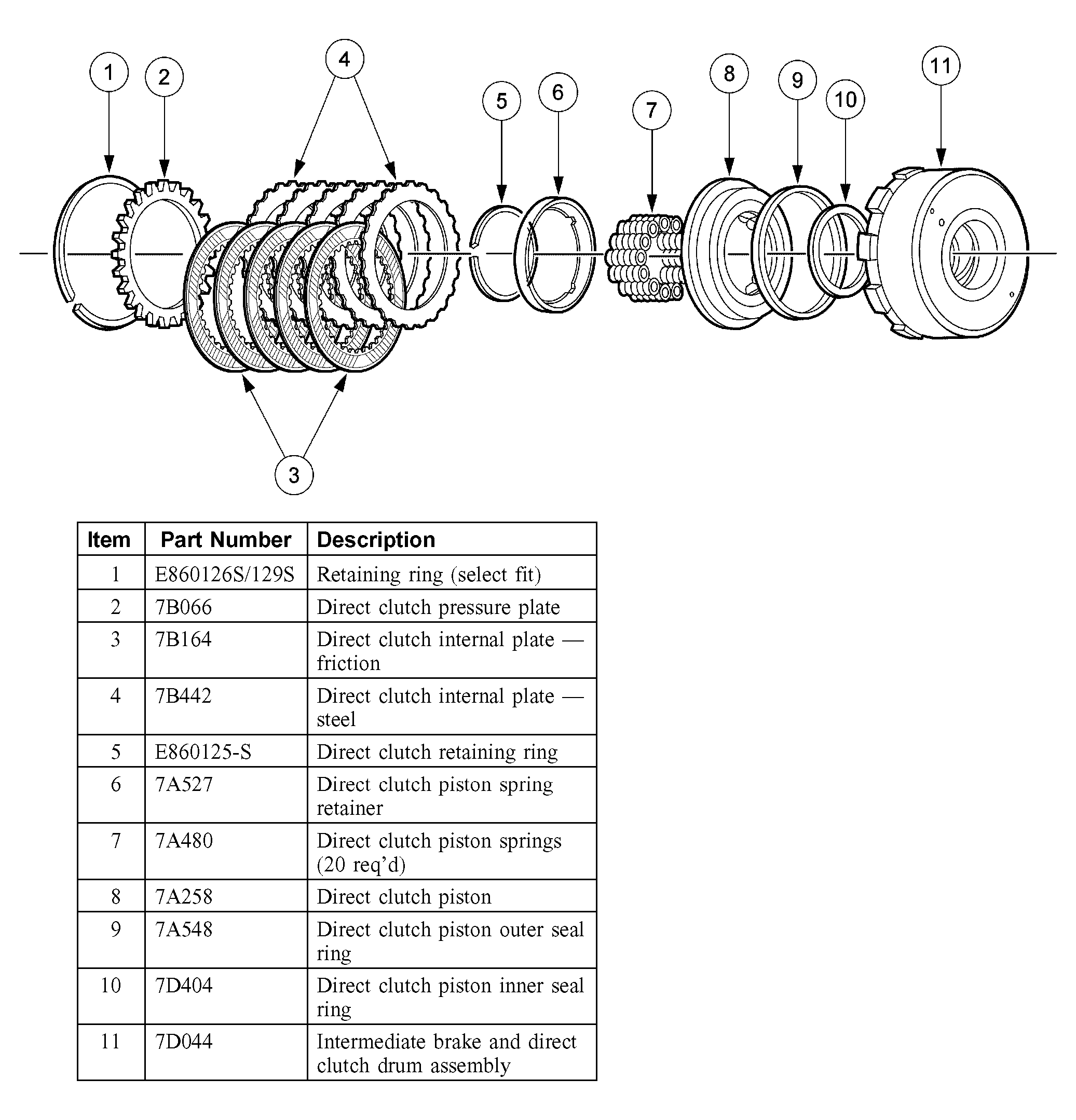

Fig 1: Exploded View Of Intermediate Brake And Direct Clutch Drum Assembly
