Special Tool(s)

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S)

G03975288
Remover, Bushing 307-001 (TOOL-1175-AC)
G03975289
Installer, Torque Converter Fluid Seal 307-349 (T97T-77000-A)

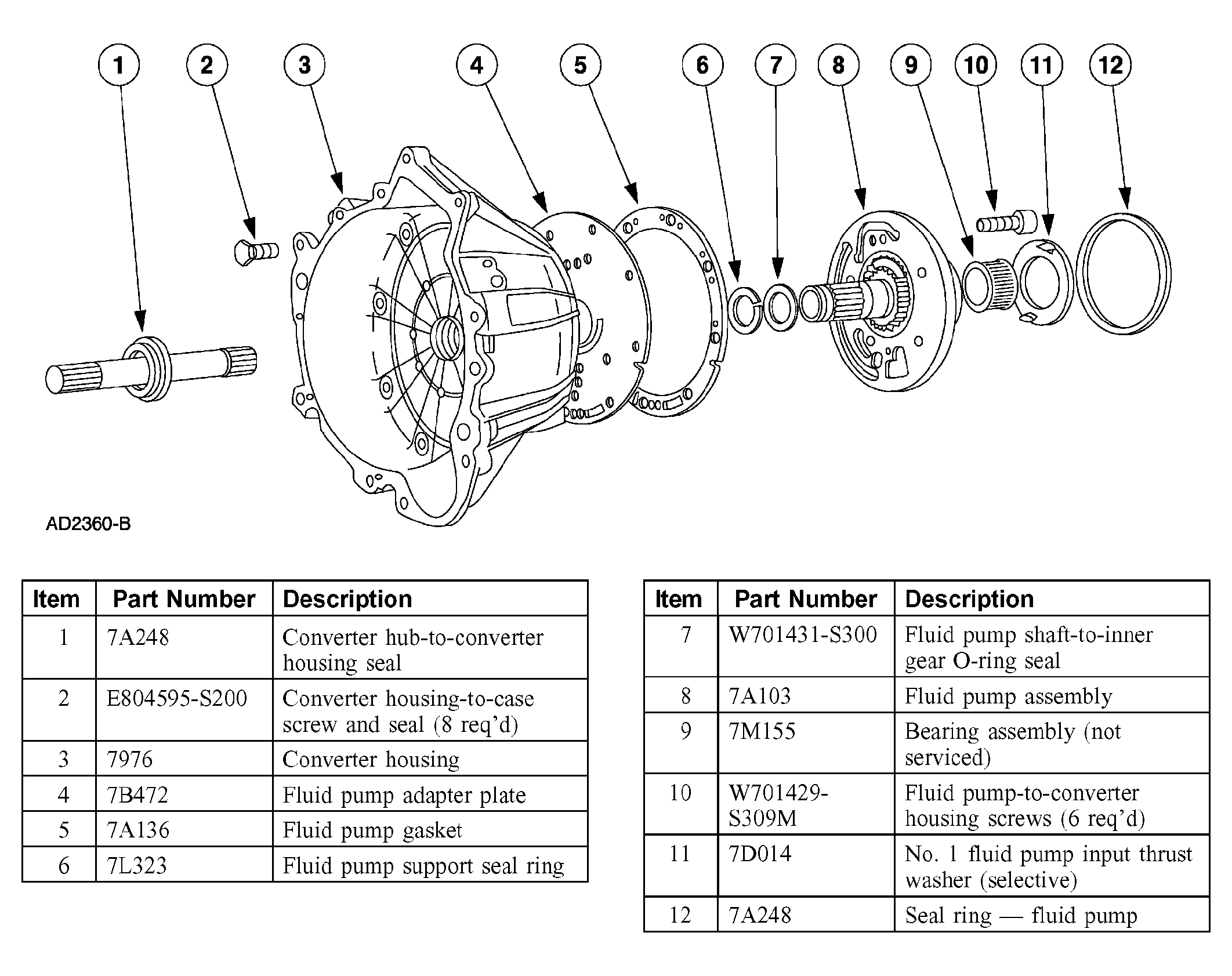

Fig 1: Identifying Converter Housing And Fluid Pump Components
G03975290Courtesy of FORD MOTOR CO.
