Check Fluid Level and Condition

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: The vehicle should not be driven if the fluid level indicator shows the fluid below the Do Not Drive mark or internal failure could result.
NOTE: Automatic transmission fluid expands when warmed. To obtain an accurate fluid level check, drive the vehicle until warmed, approximately 30 km (18.75 miles). If the vehicle has been operated for an extended period at high speeds, in city traffic, during hot weather or while pulling a trailer, the vehicle should be turned off for about 30 minutes to allow the fluid to cool before checking.
NOTE: The transmission fluid level should be checked at normal operating temperatures, 66°C-77°C (150°F-170°F), on a level surface. The normal operating temperature can be reached after approximately 32 km (20 miles) of driving. However, you can check the fluid level without driving if the outside temperature is above 10°C (50°F). When the vehicle has not been driven, and the outside is above 10°C (50°F), the fluid level should be between the holes on the indicator. If the transmission fluid is to be checked when the fluid is at room temperature, the fluid level indicator could indicate that fluid should be added if the indicator is misread. If fluid is added at this time, an overfill condition could result when the vehicle reaches operating temperature of 66°C-77°C (150°F-170°F).
  1. Drive the vehicle 32 km (20 miles) or until the vehicle reaches normal operating temperatures.
  2. Park the vehicle on a level surface and apply the parking brake.
  3. With the parking brake applied and your foot on the brake pedal, start the engine and move the range selector lever through all the gear ranges. Allow sufficient time for each gear to engage.
  4. Place the range selector lever in (P) park and leave the engine running.
  5. Remove the fluid level indicator and wipe it clean with a lint free cloth.
  6. Install the fluid level indicator until it is fully seated into the filler tube.
  7. Remove the fluid level indicator and inspect the fluid level. The fluid level should be in the designated area for normal and room temperature.

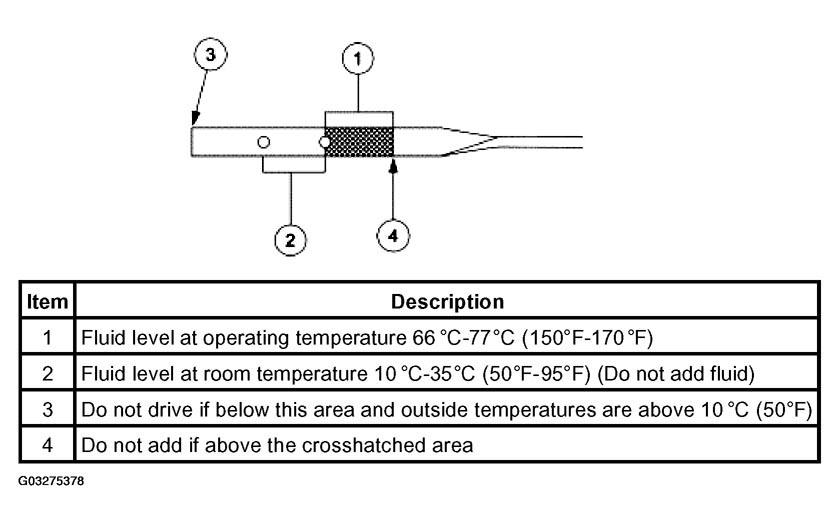

    Fig 1: Identifying Fluid Level Indicator Markings
    G03275378Courtesy of FORD MOTOR CO.
