External Sealing
WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Do not try to stop a fluid leak by increasing the torque beyond specifications. This may cause damage to the transmission case threads.

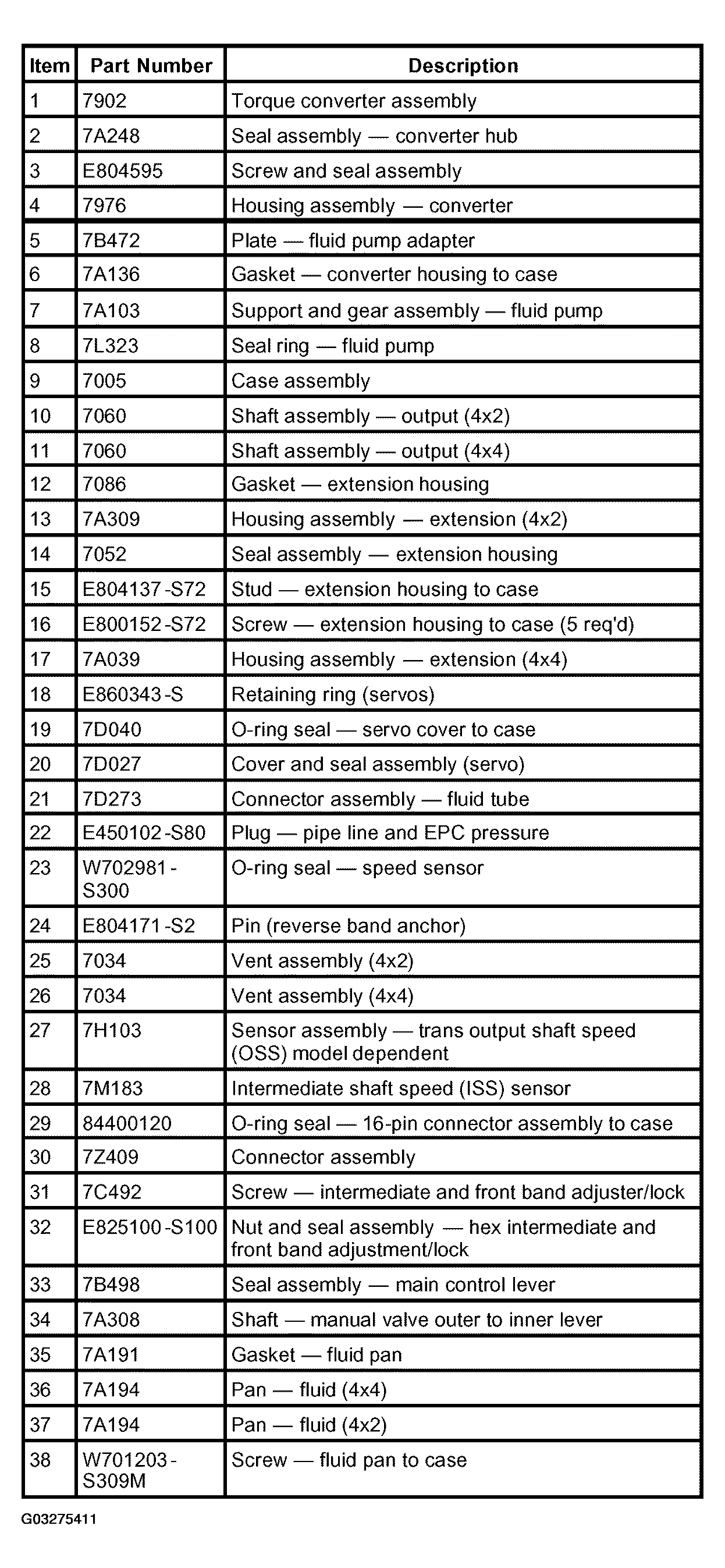

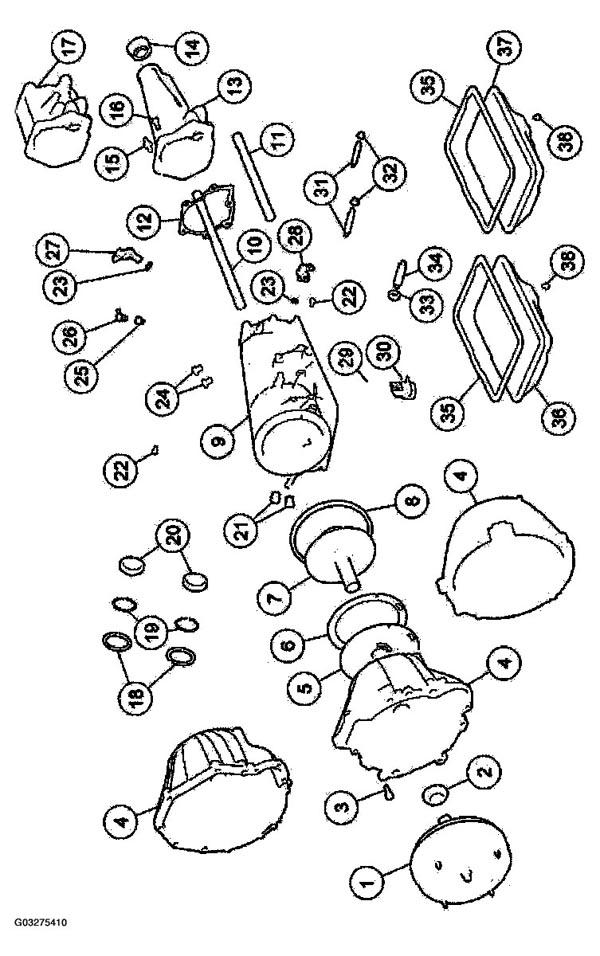

The transmission has the following parts to prevent external fluid leakage:
- Gaskets
- Lip-type seals
- O-ring seals
- Seal rings
- Seal grommets
- Seal washers
- Thread sealant
