Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the accelerator control snow shield.

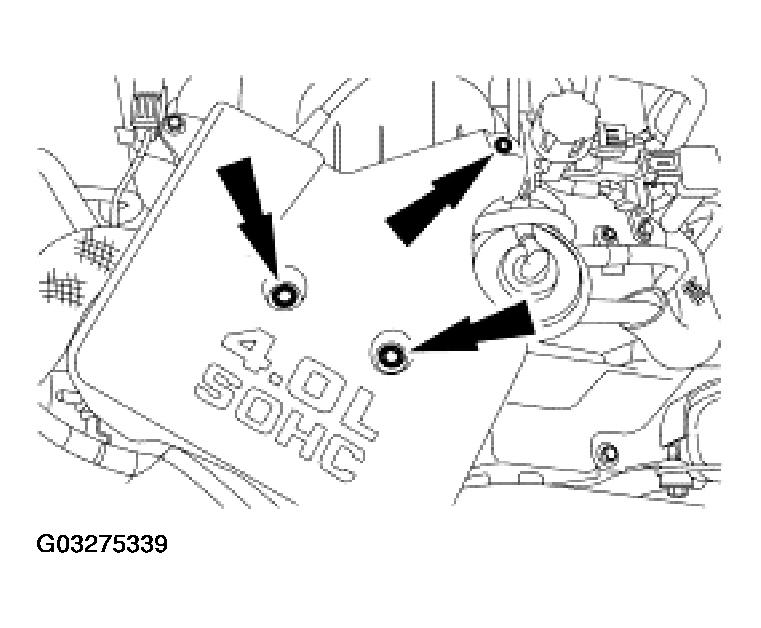

    Fig 1: Removing Accelerator Control Snow Shield
    G03275339Courtesy of FORD MOTOR CO.
  2. Remove the throttle position (TP) sensor.
    1. Disconnect the electrical connector.
    2. Remove the bolts and the TP sensor.

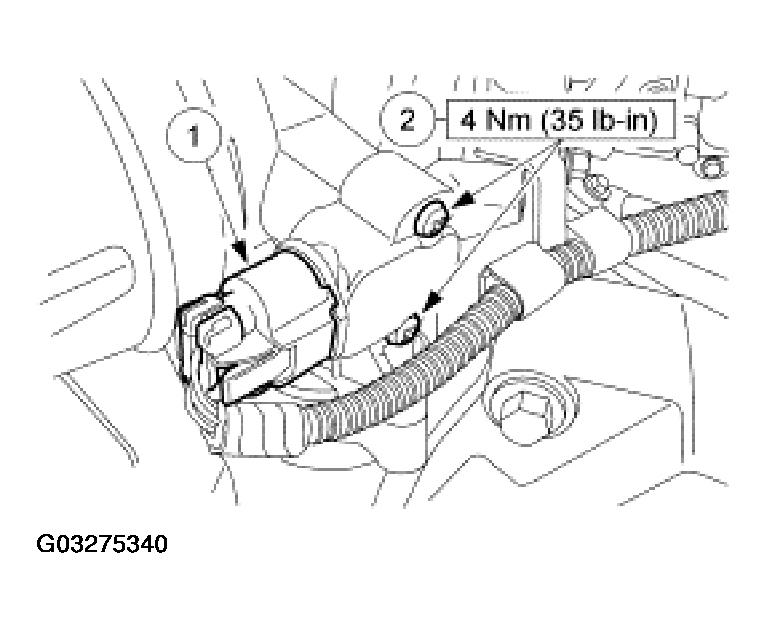

      Fig 2: Removing TP Sensor
      G03275340Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
