Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Disconnect the throttle position (TP) sensor electrical connector.

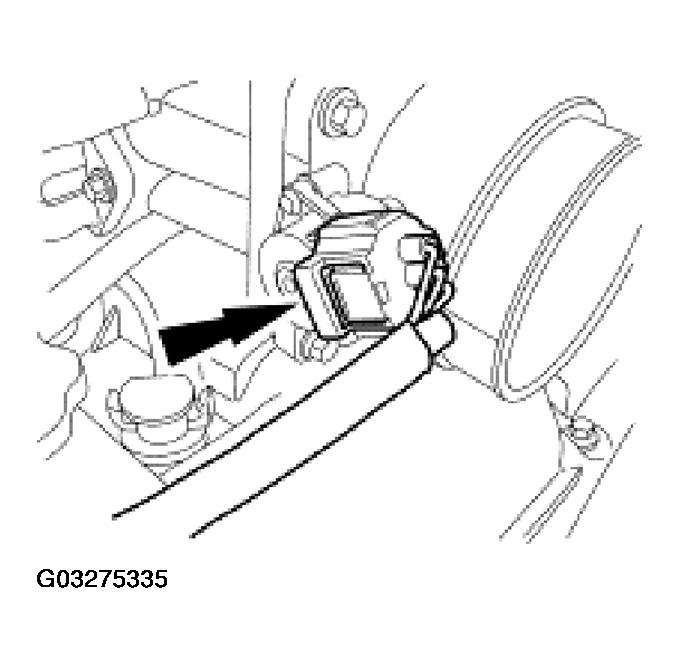

    Fig 1: Disconnecting TP Sensor Electrical Connector
    G03275335Courtesy of FORD MOTOR CO.
  3. Remove the bolts and the TP sensor.

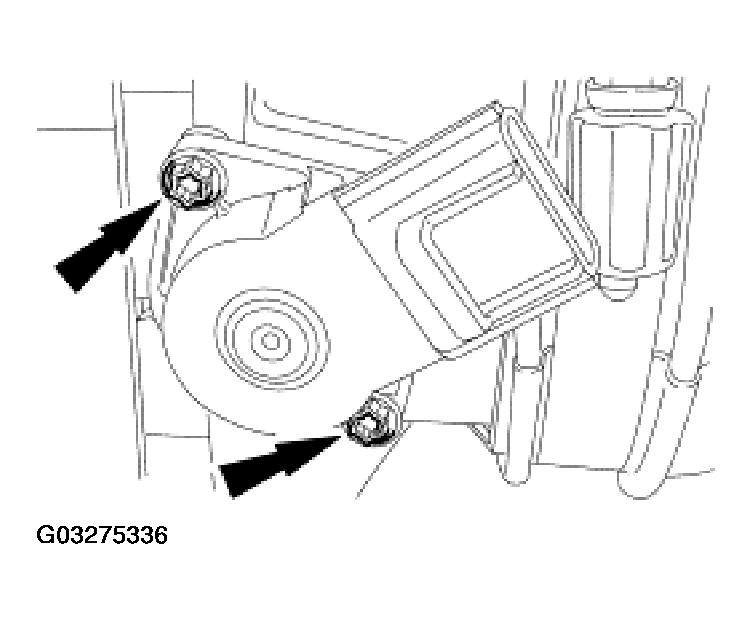

    Fig 2: Removing TP Sensor
    G03275336Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
