Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Disconnect the manifold absolute pressure (MAP) sensor electrical connector.

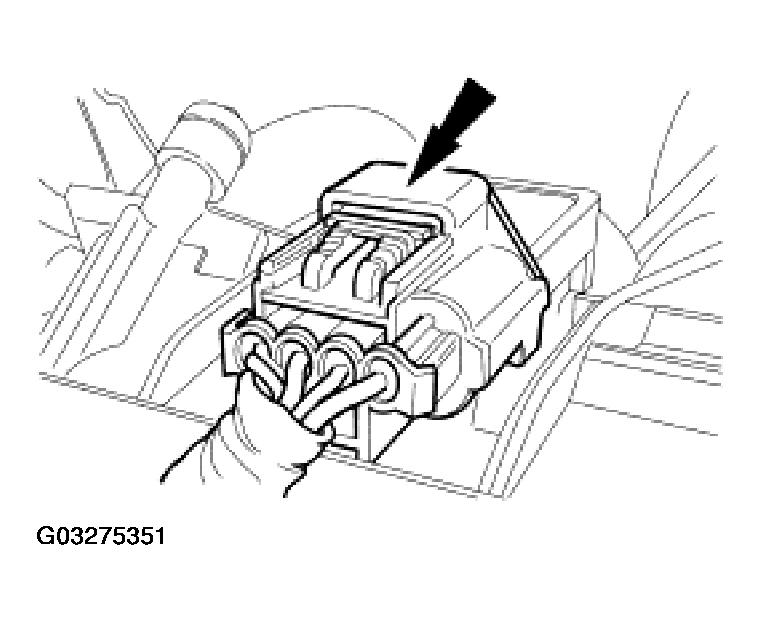

    Fig 1: Disconnecting MAP Sensor Electrical Connector
    G03275351Courtesy of FORD MOTOR CO.
  3. Remove the bolt and lift the MAP sensor out of the intake manifold.

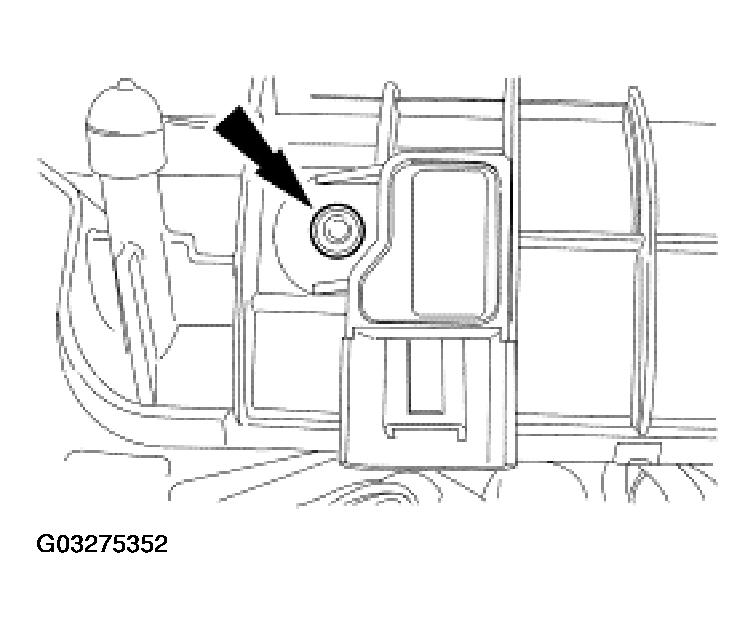

    Fig 2: Removing Map Sensor
    G03275352Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
