Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the intake manifold. For additional information, refer to ENGINE 4.0L SOHC .
  2. Disconnect the knock sensor (KS) electrical connector.

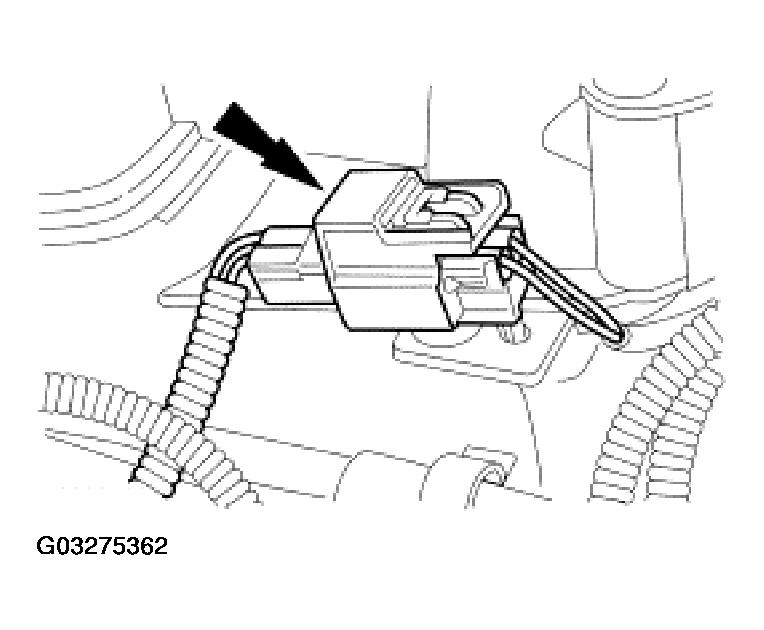

    Fig 1: Disconnecting KS Connector
    G03275362Courtesy of FORD MOTOR CO.
  3. Remove the KS.
    1. Remove the bolt.
    2. Remove the sensor.

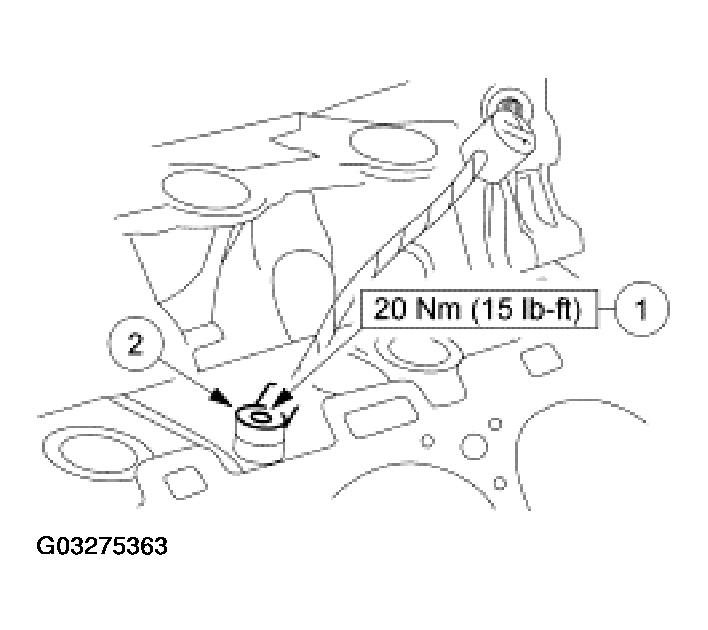

      Fig 2: Removing KS
      G03275363Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
