Knock Sensor (KS) - 3.0L

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Raise and support the vehicle. For additional information, refer to JACKING & LIFTING .
  3. Disconnect the knock sensor (KS) electrical connector.

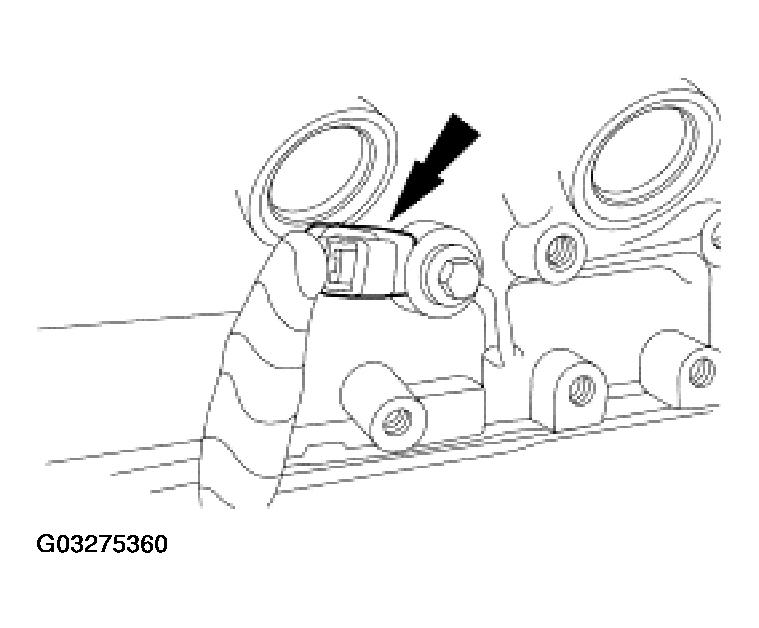

    Fig 1: Disconnecting KS Connector
    G03275360Courtesy of FORD MOTOR CO.
  4. Remove the bolt and the KS.

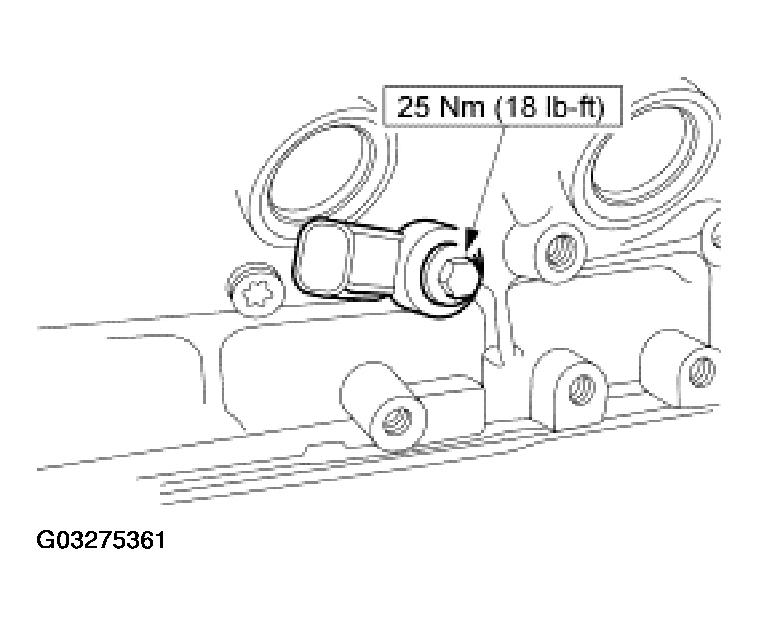

    Fig 2: Removing KS
    G03275361Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
