Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Disconnect the knock sensor (KS) electrical connector.

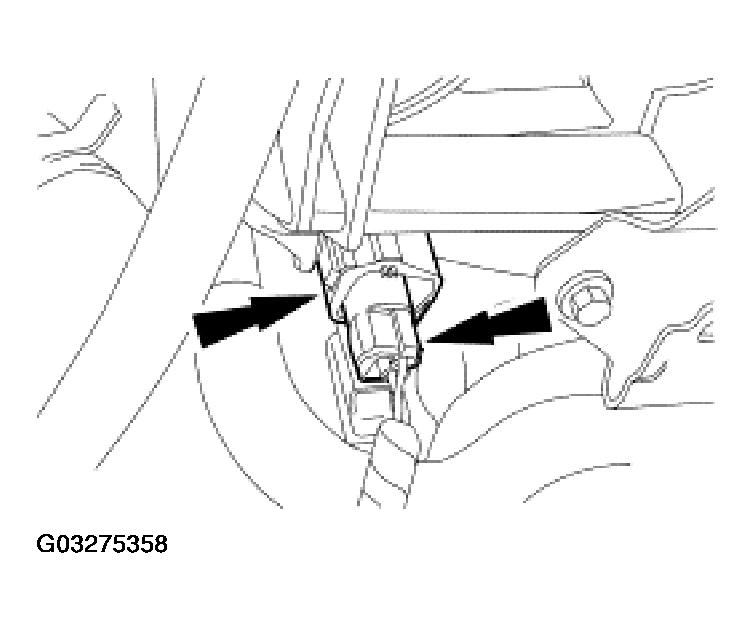

Fig 1: Disconnecting Knock Sensor Electrical Connector
Courtesy of FORD MOTOR CO.

NOTE: The KS is a one-time use item and, if serviced, a new one must be installed.

Fig 2: Removing KS

Courtesy of FORD MOTOR CO.

Remove the bolt and remove and discard the KS.
To install, reverse the removal procedure.
- Install a new KS.
