Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the accelerator control snow shield.

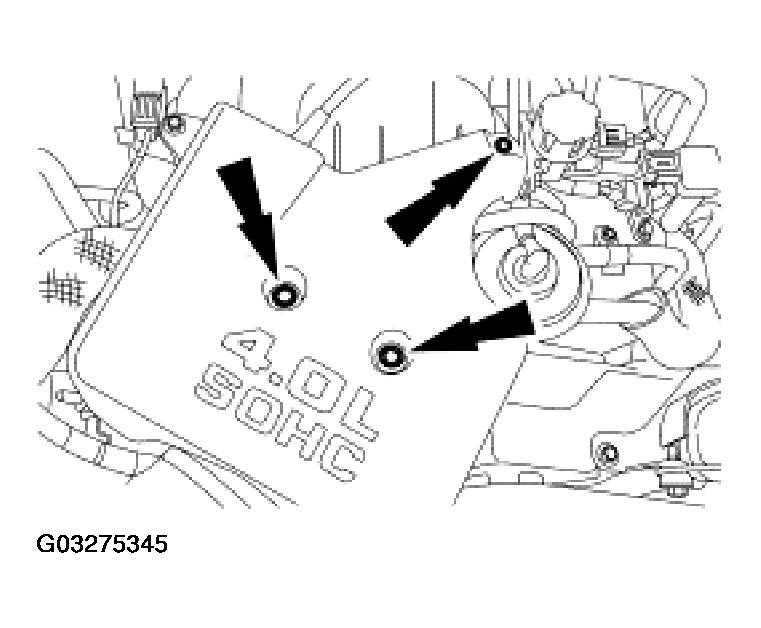

    Fig 1: Removing Accelerator Control Snow Shield
    G03275345Courtesy of FORD MOTOR CO.
  2. Disconnect the electrical connector. Remove the bolts and the idle air control (IAC) valve.

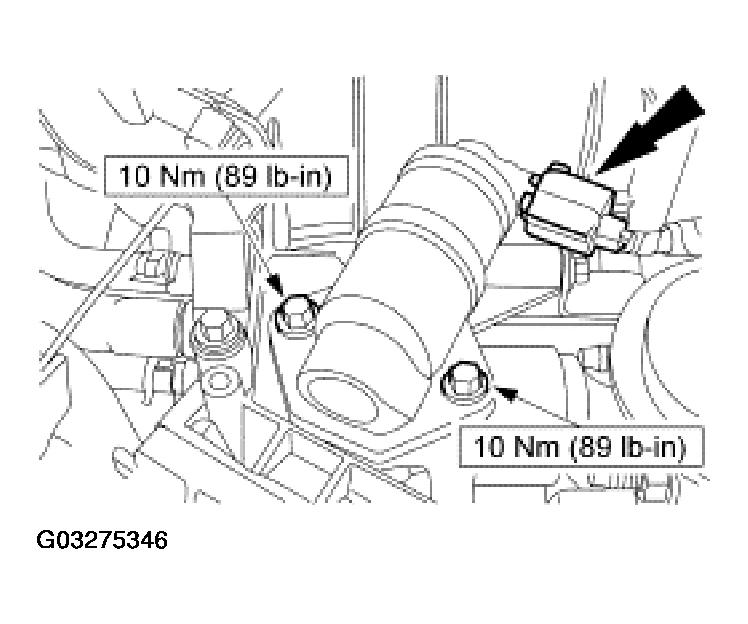

    Fig 2: Removing Bolts And IAC Valve
    G03275346Courtesy of FORD MOTOR CO.
    3. NOTE: Install a new IAC gasket.
  3. To install, reverse the removal procedure.
